COD.642400 Rev. 1
8
INSTALLATION
electrical connection and operation checks

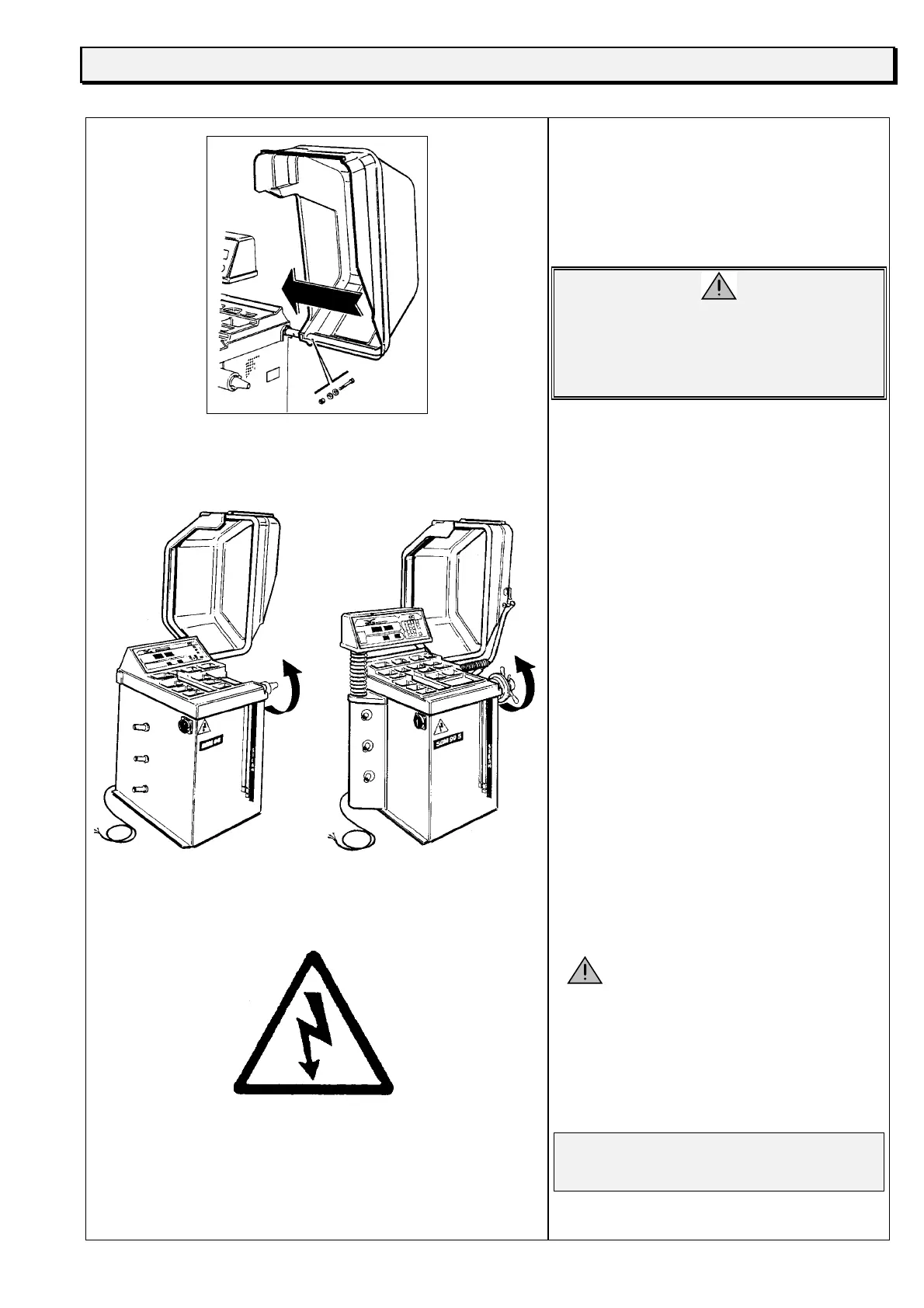

fig.7
fig.8a fig.8b
fig. 8c
MOUNTING THE WHEEL GUARD
See fig. 7 and proceed as follows:
1. Insert wheel guard hole onto the pin.
2. Insert the bolt into the hole and tighten the
nut.
ELECTRICAL CONNECTION (Fig.8a-8b)
ALL WORK ON THE ELECTRICAL
SYSTEM, INCLUDING MINOR
OPERATIONS, MUST BE CARRIED
OUT BY PROFESSIONALLY
QUALIFIED PERSONNEL!
• Check that the mains supply tension is the
same as that shown on the registration
plate.
• Connect the supply cable to a plug that
conforms with European norms or to the
norms of the country in which the machine
is used.
• The plug must have an earth terminal.
• Check that the earth connection is
effective.
• The machine must be connected to the
mains through a multipolar isolating switch
which conforms with European norms and
with contact openings of at least 3 mm.
• When the electrical connection is complete
and with the machine switched on, the
mounted wheel should rotate in a
clockwise direction, as seen from the right
hand side of the machine. The correct
direction of rotation is indicated by an
arrow on the body of the machine.
• If the rotation is in the wrong direction, the
machine will function only as long as the
START button is pushed. In this case
exchange the two conductor wires in the
connection cable plug.
• If the machine behaves abnormally,
immediately switch off the main switch
and refer to the fault finding section in the
instructions manual (pg.10).
Always pay careful attention to the
WARNING SIGNS shown on adhesives
applied to the machine.
Fig. 8c tension label - code no. 100789.
If the warning sign disappears or shows
signs of deterioration, you are requested to
order a replacement from SICAM's "Spare
Parts" service, making use of the relevant
code number.
THE MAKER DECLINES ALL RESPONSI-
BILITY FOR THE FAILURE TO OBSERVE
THE ABOVE INSTRUCTIONS.
