Sensing range
T
he scanning range is the maximum protective field width.
The scanning range is reduced by using deflector mirrors.
The scanning range is reduced by using a weld spark guard.
Further topics
•
"D
ata sheet", page 79
•
"Deflector mirrors", page 92
•
"Weld spark guard", page 87
3.2 Product characteristics
3.2.1 Device overview

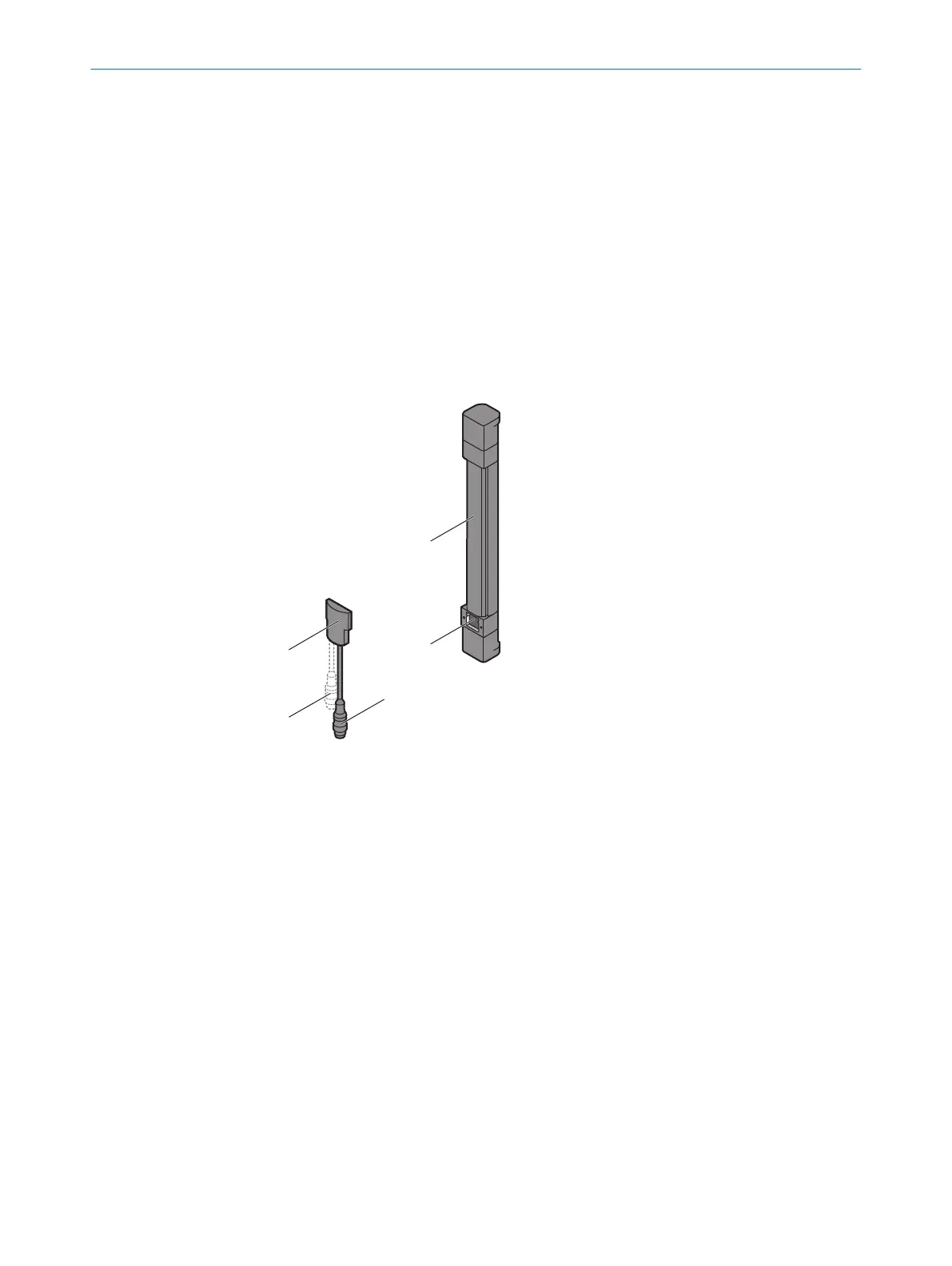

Figure 3: Device overview
!
Sender or receiver
"
System plug
§
Terminal compartment
$
Extension connection (only for certain system plugs)
%
System connection
3.2.2 Absence of blind zones
The design and construction of the safety light curtain extends the protective function
of a de
vice to the end of the housing without any blind spots. The absence of blind
zones reduces the space requirement when integrated in the machine.
3.2.3 Automatic calibration of the protective field width
When switched on, the safety light curtain automatically calibrates to the protective
f
ield width.
PRODUCT DESCRIPTION 3
8027140/2021-11-04 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4
13
Subject to change without notice
