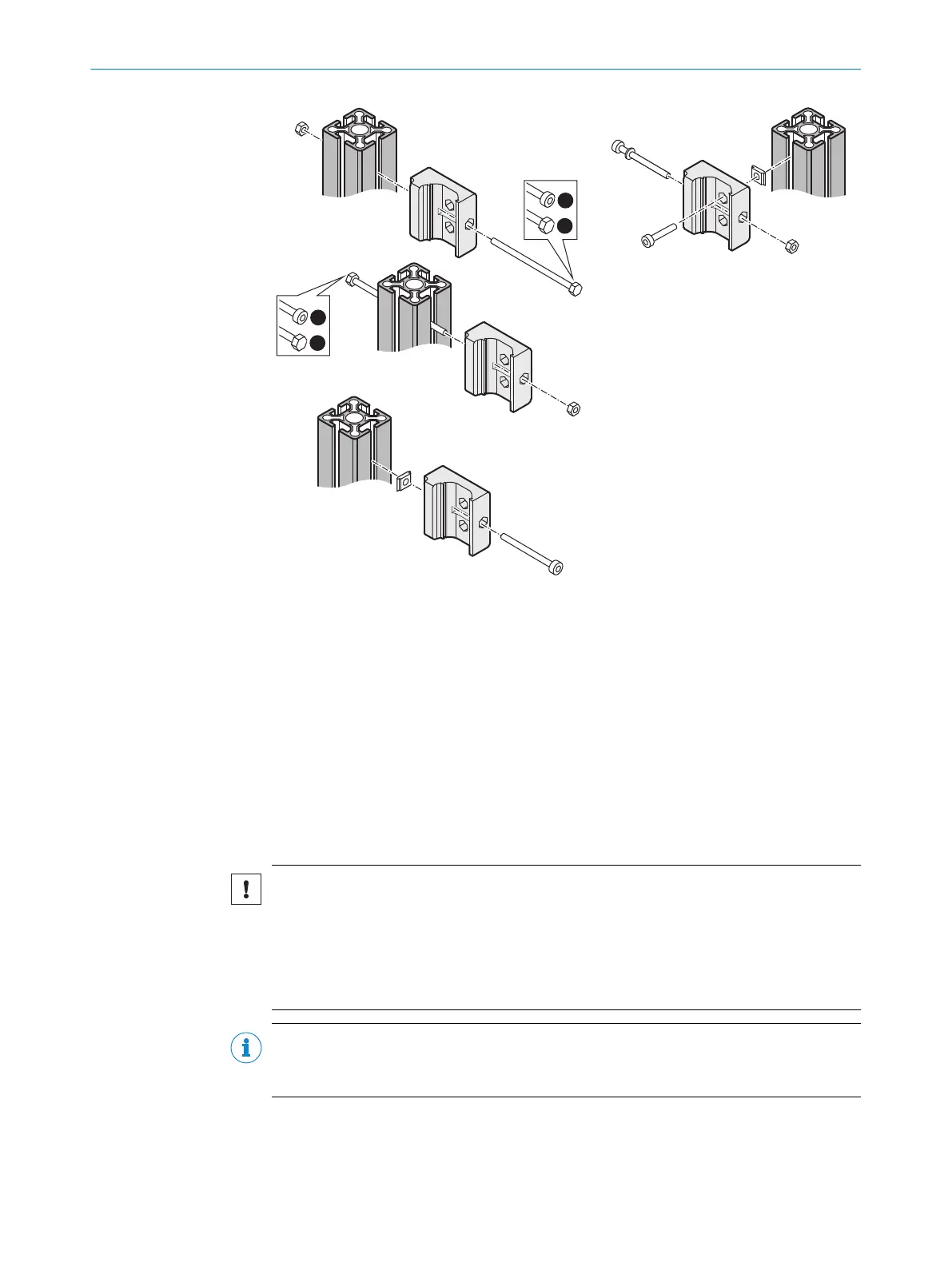

Figure 28: Mounting the QuickFix bracket to a profile
5.4.2 Mounting the FlexFix bracket
Overview
In t
he FlexFix bracket, the sender and receiver can be rotated ± 15° around their
longitudinal axis.
2 FlexFix brackets are used to mount the sender and receiver.
As a rule, each FlexFix bracket is mounted to the mounting surface with 2 screws. In
exceptional cases (e.g. reduced vibration and shock requirements), a FlexFix bracket
can be mounted with only one screw if this does not impair the function.
Important information
NOTICE
T
he housing of the safety light curtain can become scratched if the screw heads
protrude when the FlexFix brackets are mounted on the back.
This can be avoided by taking one of the following measures:
b
Use flat-head screws with washers.
b
If using cylinder head screws, use 2 screws per bracket and no washers.
NOTE
T
he FlexFix mounting kit (part number 2073543) contains 2 FlexFix brackets, one
alignment tool, and the required screws, sliding nuts, and washers.
Further topics
•
"Br
ackets", page 86
MOUNTING 5
8027140/2021-11-04 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4
45
Subject to change without notice
