Chapter
6
Operating Instructio
ns
CLV62x Bar Code Scanner
44
©
SICK AG · Division Auto Ident · German
y
· All rights reserved
8011965/S345/2008-0
4-16
Electrical installation
6.3
Electrical connections and cables

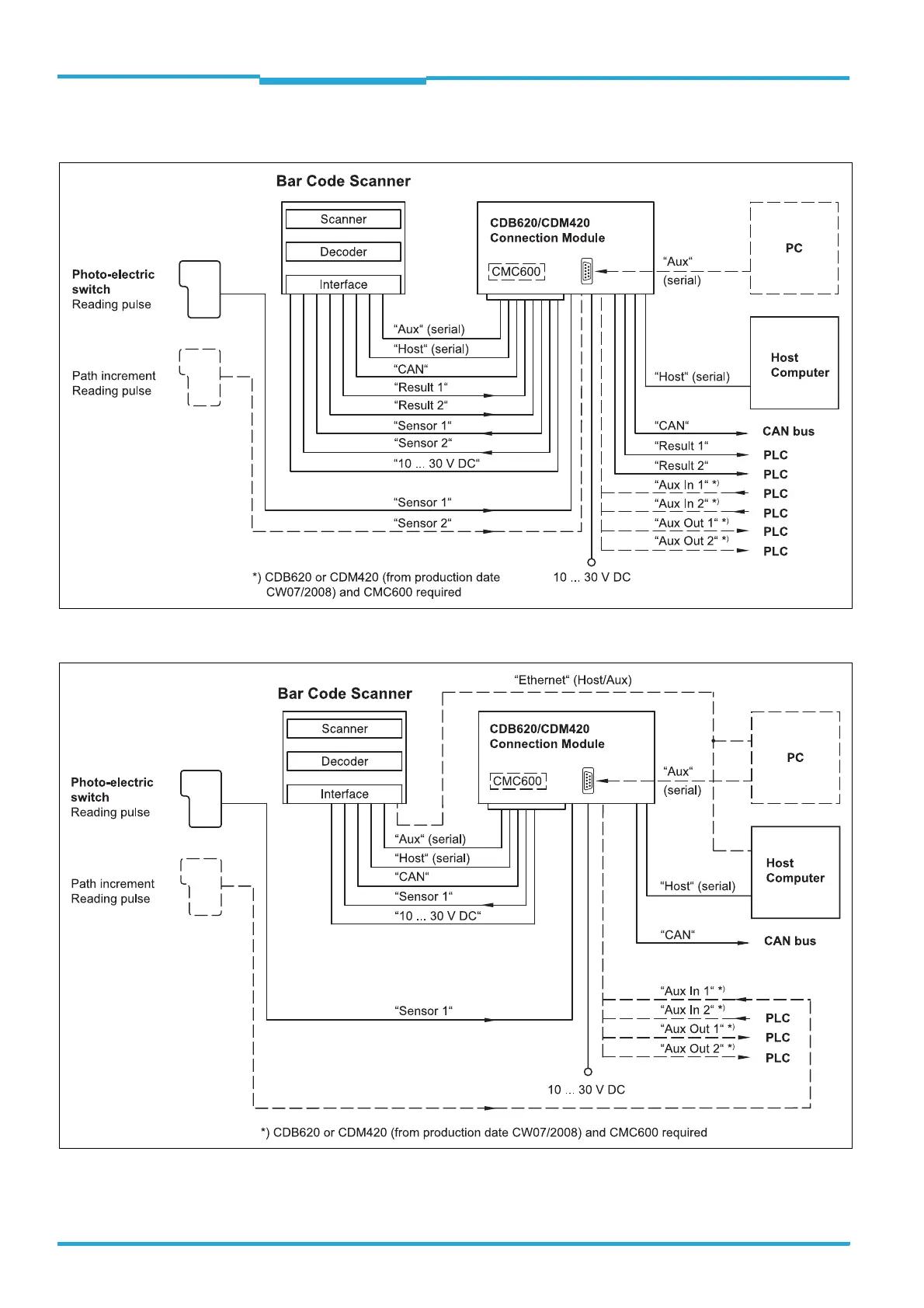

Fig. 6-1:
St
andard version: Electrical
connections
at the bar code scanner with connection cable
Fig. 6-2:
Ether
net version: Electrical
connectio
ns at the bar code scanner with connector unit
43
45
