Operating Instructions Chapter 6
CLV62x Bar Code Scanner
Electrical installation
8011965/S345/2008-04-16 © SICK AG · Division Auto Ident · Germany · All rights reserved 49
Connecting supply voltage
When wiring the bar code scanner using connection module CDB620 or CDM420, the bar
code scanner's data and function interfaces are contacted to the connection module to-
gether with the power supply.
1. Ensure that the connection module's supply voltage has been switched off.
2. Standard version: Connect the bar code scanner's 15-pole cable plug to the connection
module's 15-pole socket and screw it tight.
- or -
Ethernet version: Connect the bar code scanner's 12-pole plug via a corresponding ca-
ble (e.g. 2042916) to the connection module's 15-pole socket and screw it tight.
6.4.2 Wiring serial data interfaces
The maximum data transfer rate depends on the cable length and the interface type.
Tab. 6-6: Recommended maximum cable lengths, depending on the selected data transfer rate

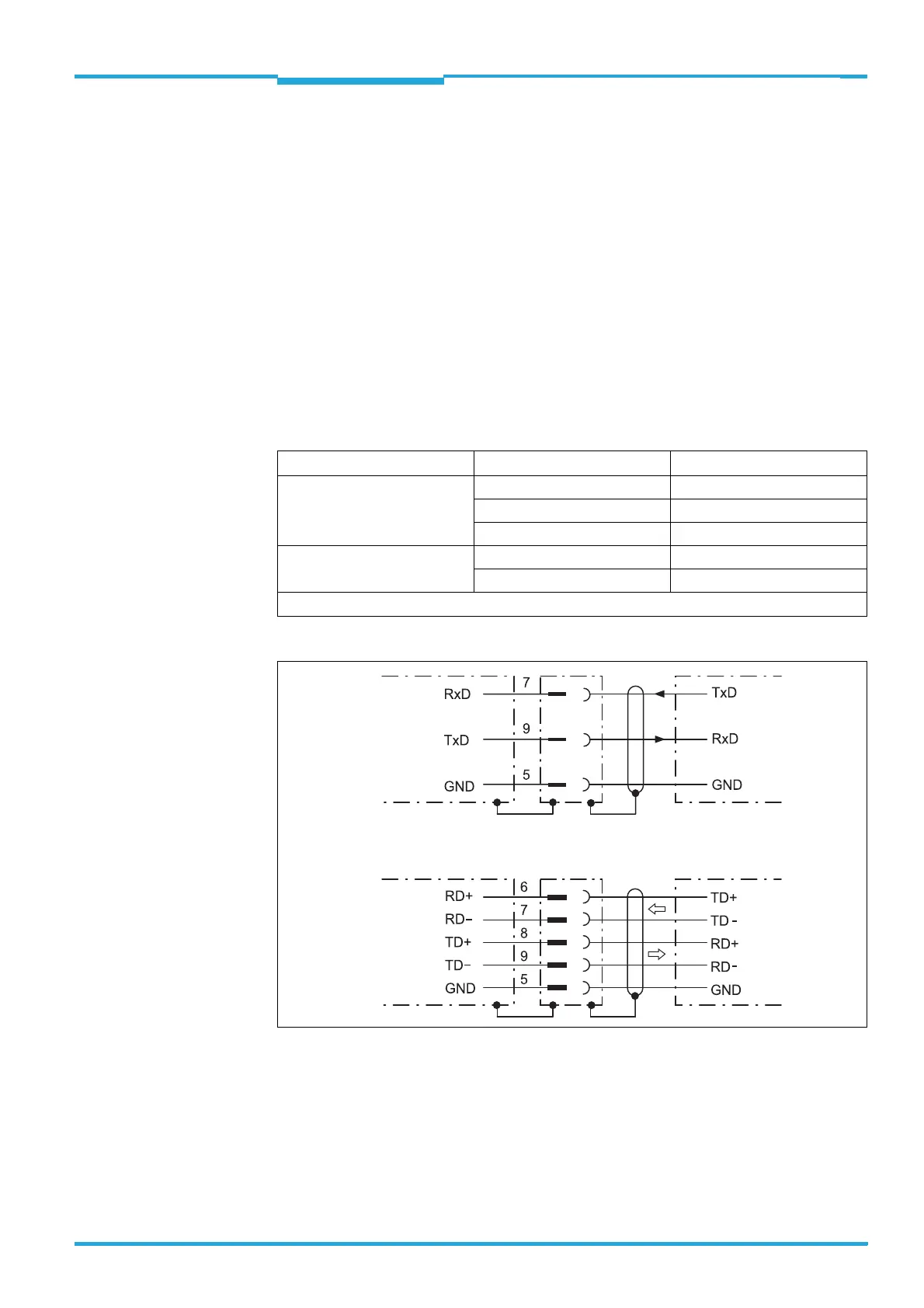

Fig. 6-4: Wiring the serial host data interfaces (RS-232 or RS-422) on the 15-pole D-Sub-HD plug
Pin assignment for the serial auxiliary data interface on the 15-pole D-Sub-HD plug:
• RxD = Pin 2
• TxD = Pin 3
• GND = Pin 5
Interface type Transfer rate Distance to the host
RS-232 up to 19,200 Bd max. 10 m (32.8 ft)
38,400 ... 57,600 Bd max. 3 m (9.8 ft)
115,200 Bd max. 2 m (6.6 ft)
RS-422/485
1)
max. 38,400 Bd max. 1,200 m (3,937 ft)
max. 115,200 Bd max. 500 m (1,640 ft)
1) With corresponding line termination according to specification
CLV
Host
Host
CLV
RS-232
RS-422
