SICK CLV620

Operating Instructions Chapter 10
CLV62x Bar Code Scanner
Technical data
8011965/S345/2008-04-16 © SICK AG · Division Auto Ident · Germany · All rights reserved 75
10.2.2 Reading ranges of the CLV621 Bar Code Scanner (Long-range)

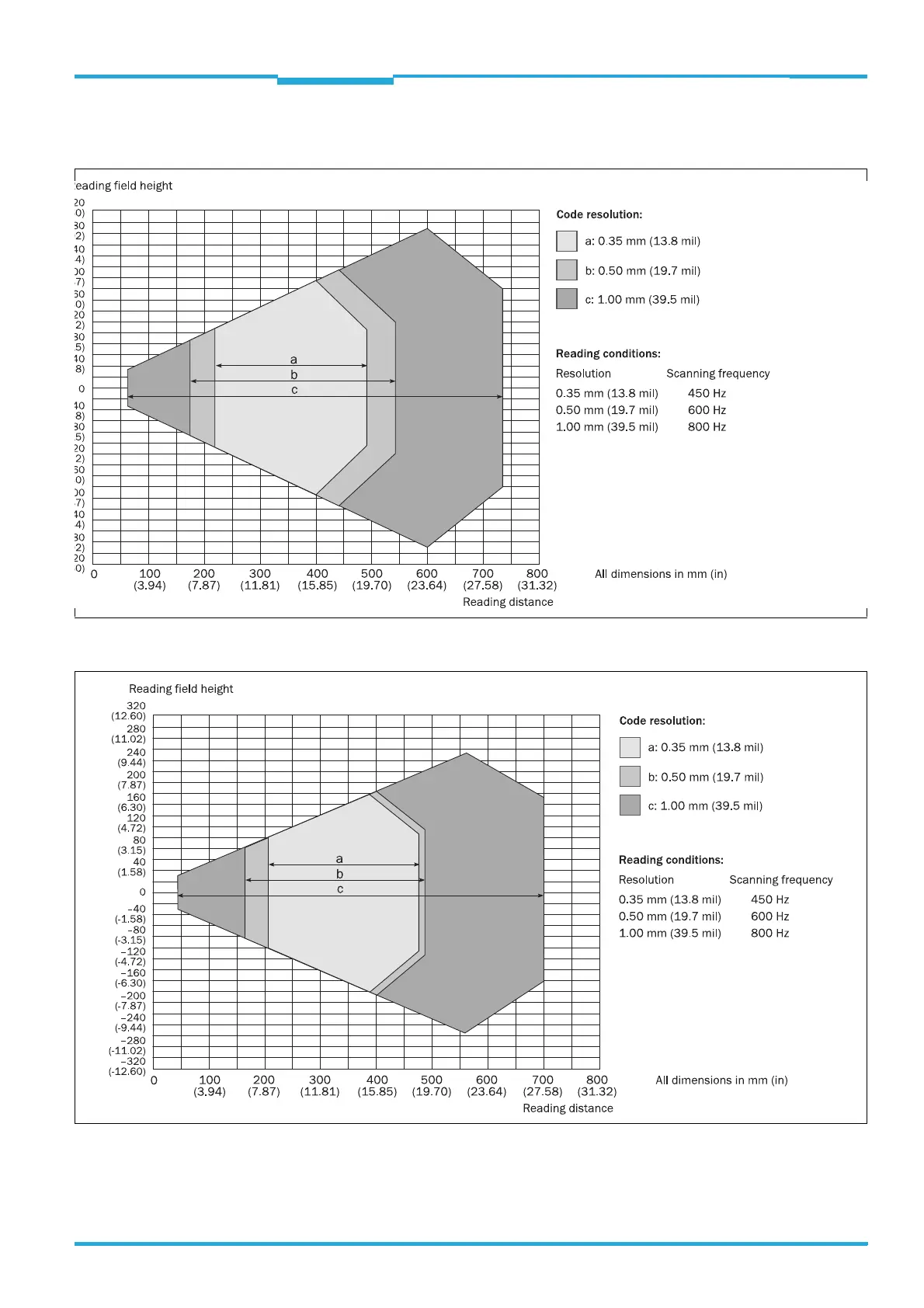

Fig. 10-4: Reading ranges of the CLV621 Bar Code Scanner (with front reading window)
Fig. 10-5: Reading ranges of the CLV621 Bar Code Scanner (with side reading window)
