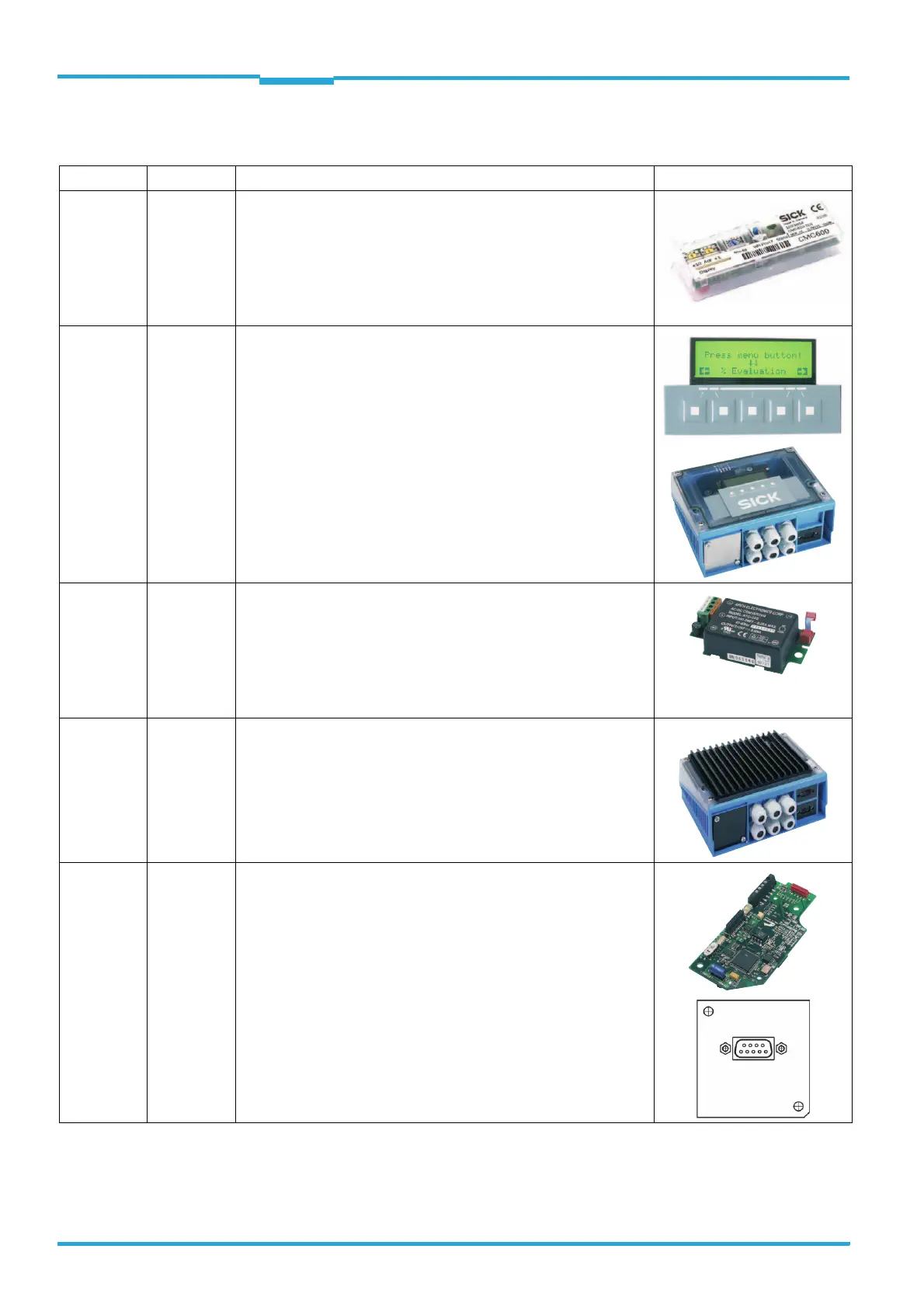

11.4.4 Accessories: Extensions for connection modules
Order no. Type Description Display
1042259 CMC600-
101
Parameter memory module (connection module cloning)
• Plug-in using connection module CDB620 or CDM420
• Storage of the parameter set of CLV62x (from firmware V 1.00)
• Rotary switch for activating CLV62x network operation
• Operating voltage 10 ... 30 V DC using CDB620 or CDM420
• Current consumption 0.5 W
• Operating temperature 0 ... +40 °C
2029466
CDM400
1)
Display module (connection display module)
• In the optional housing cover for connection module CDM420
• Display of reading results and reading diagnosis data of CLV62x
(from firmware V 1.00)
• LCC with 4 x 20 characters, keyboard with 5 keys
• Connection via flat cable
• Operating voltage 18 ... 30 VDC using CDM420, current consump-
tion 1 W
• Operating temperature 0 ... +40 °C
Prerequisite: Parameter memory module CMC600-101 for addressing
the display.
2029468 CMP400 Power supply module (connection module power)
• Installed in connection module CDM420
• Power supply of CLV62x from the alternating current network
• Input voltage 100 ... 250 VAC/50 ...60 Hz
• Output voltage 24 V DC, max. 10.8 W (short-circuit proof)
• Connection to CDM420 via flat cable
• Operating temperature 0 ... +40 °C
2030091
CMP490
2)
Power supply module (connection module power)
• In the optional housing cover for connection module CDM420
• Power supply of CLV62x from the alternating current network
• Input voltage 100 ... 250 V AC/50 ...60 Hz
• Output voltage 24 V DC, max. 25 W (short-circuit proof)
• Connection to CDM420 via flat cable
• Operating temperature 0 ... +40 °C
1026241 CMF400-
1001
Field bus gateway (connection module field bus)
• Installed in connection module CDM420
• Connection of a CLV62x (from firmware V 1.00) via RS-232 data in-
terface to Profibus DP (slave)
• Changeable front panel: 9-pole D-Sub socket (bus), enclosure rating
IP 20
• On the gateway in the device, 5-pole terminal strip for connecting
two digital inputs and outputs each
• Connection to CDM420 via connector
• Operating voltage 18 ... 30 VDC using CDM420, current consump-
tion 2 W
• Operating temperature 0 ... +40 °C
• Configuration with PC software "ComPro" (included in delivery)
• Configuration with SOPAS-ET from Q4/2007
