5 Mounting
5.1 Flush mounting
Important information
DANGER
If t
he safety switch is not mounted with the intended mounting method, the switching
behavior is affected. The safety switch might not switch as intended.
b
Only use safety switches for flush mounting which are intended for flush mounting.
b
Only use safety switches for non-flush mounting which are intended for non-flush
mounting.
b
If something is unclear, use the part number to check for which mounting method
the safety switch is suited (see "Ordering information", page 34).
Approach
b
Ob
serve the max. tightening torque during mounting.
°
IME2S: 12 Nm
°
IQB2S: 1 Nm
2
1
3

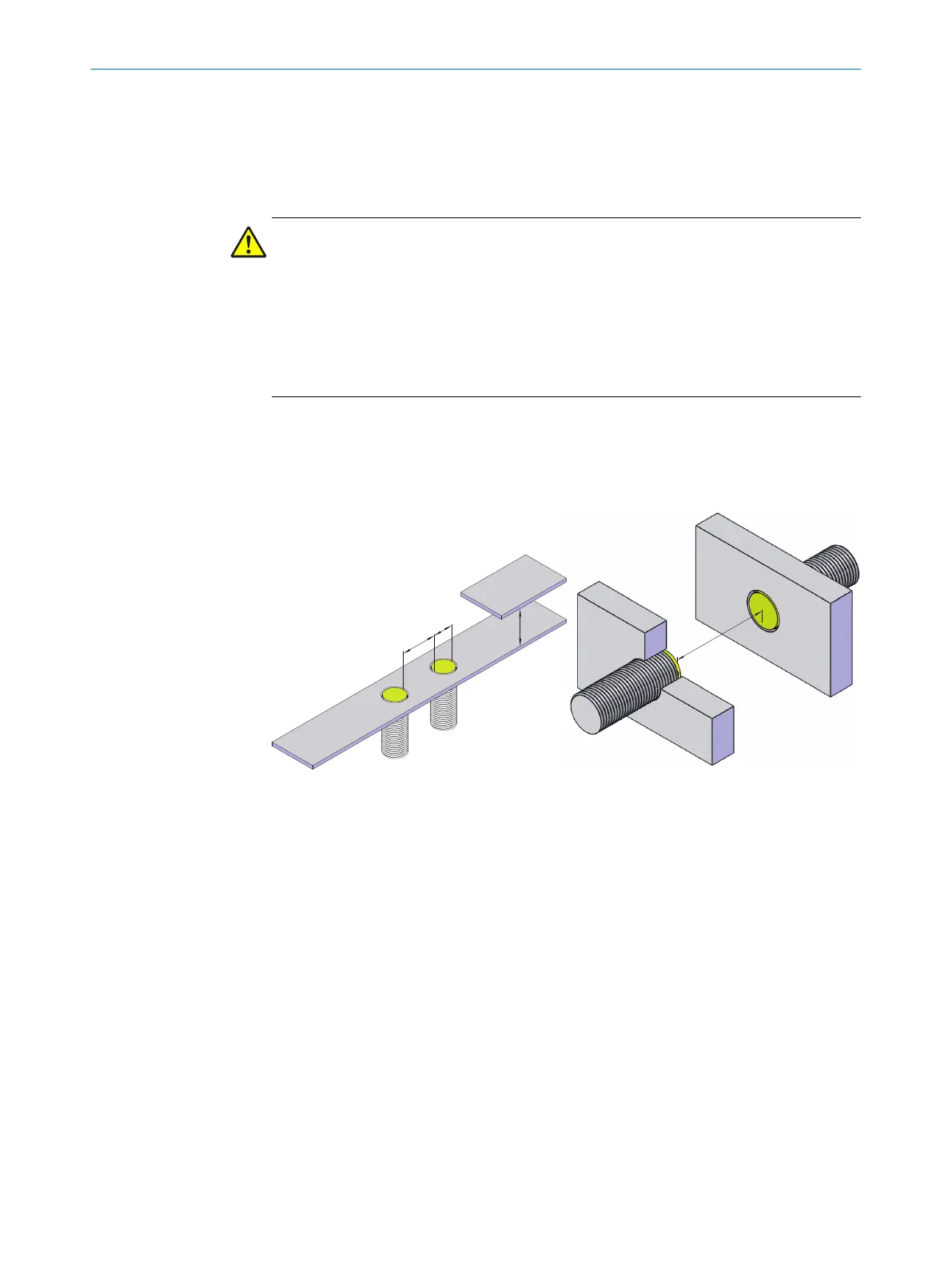

Figure 4: Spaces for flush mounting of IME2S
de
vices
6
Figure 5: Space with 2 opposing IME2S safety
s
witches
MOUNTING 5
8023341/17AZ/2020-03-24 | SICK O P E R A T I N G I N S T R U C T I O N S | IME2S, IQB2S
15
Subject to change without notice
