PRODUCT DESCRIPTION 3
3 Product Description
Movable housing for increasing availability and protecting the sensor system from mechan-
ical damage, weather influences and during manual travel movements (hood closed), e.g.
from salt spray, water spray or swirling dirt particles.
The protection hood is opened and closed electrically.

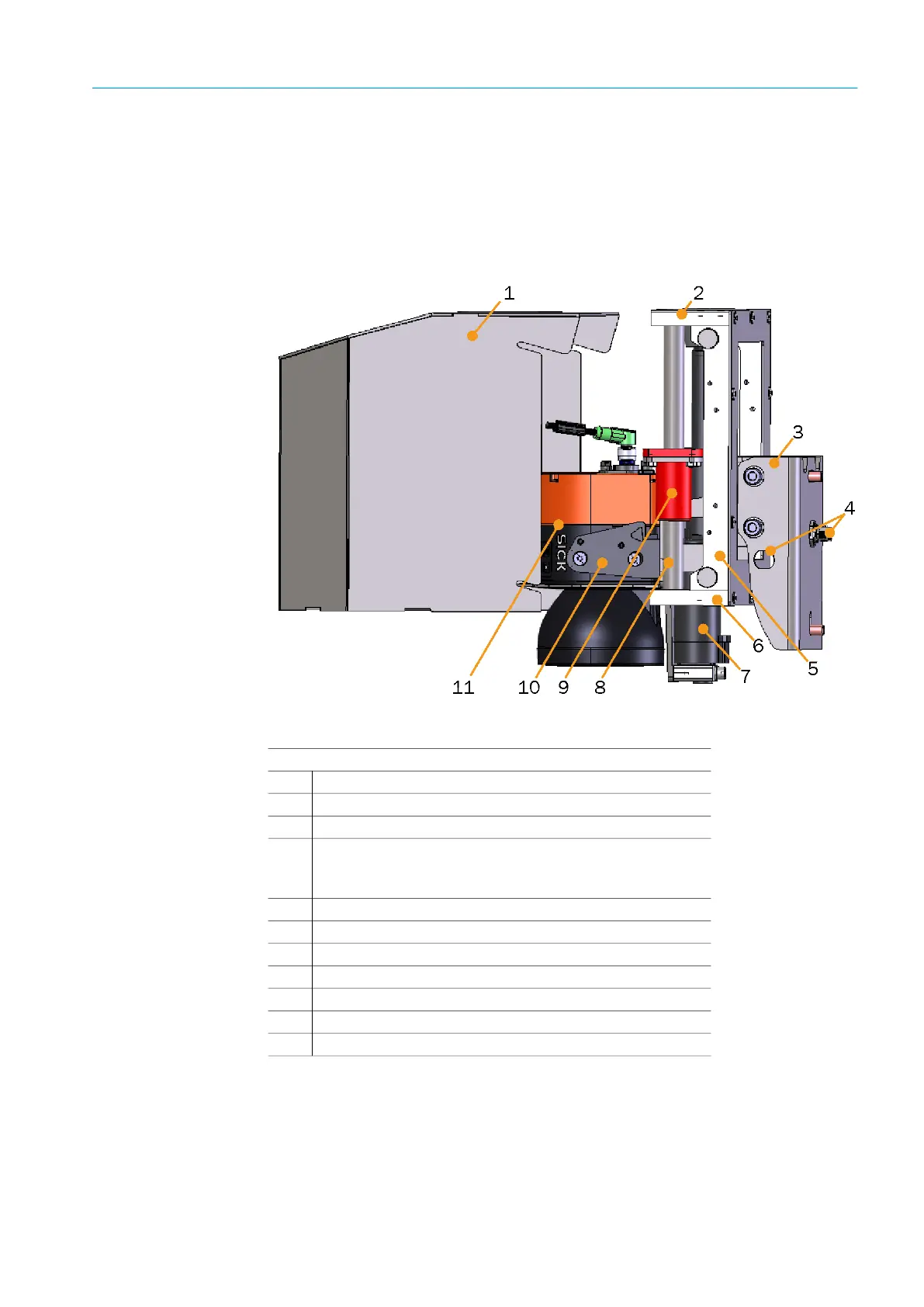

Fig. 1: Components of the protection hood
Legend
1
Hood, removable
2
Upper bridge
3
Mounting plate
4
M12 4-pin A-coded male connector with cable to actuator
Further attachment options on right and left side
see Chapter 4.2 Mounting plate, page 16
5
Strut
6
Lower bridge
7
Actuator
8
Linear shaft
9
Linear ball bearing
10
Mounting kit 1a
11
Laser scanner (not included with delivery)
