INSTALLATION 4
▸
Seal unused connections with sealing caps.
▸ Connect actuator supply cable.
M12 4-pin A-coded male connector
▸ Mount protection hood and fasten by hand with knurled screws.
Installation of the protection hood is complete.
4.4 M12 4-pin A-coded male connector
The M12 4-pin A-coded male connector must be connected to the actuator motor.

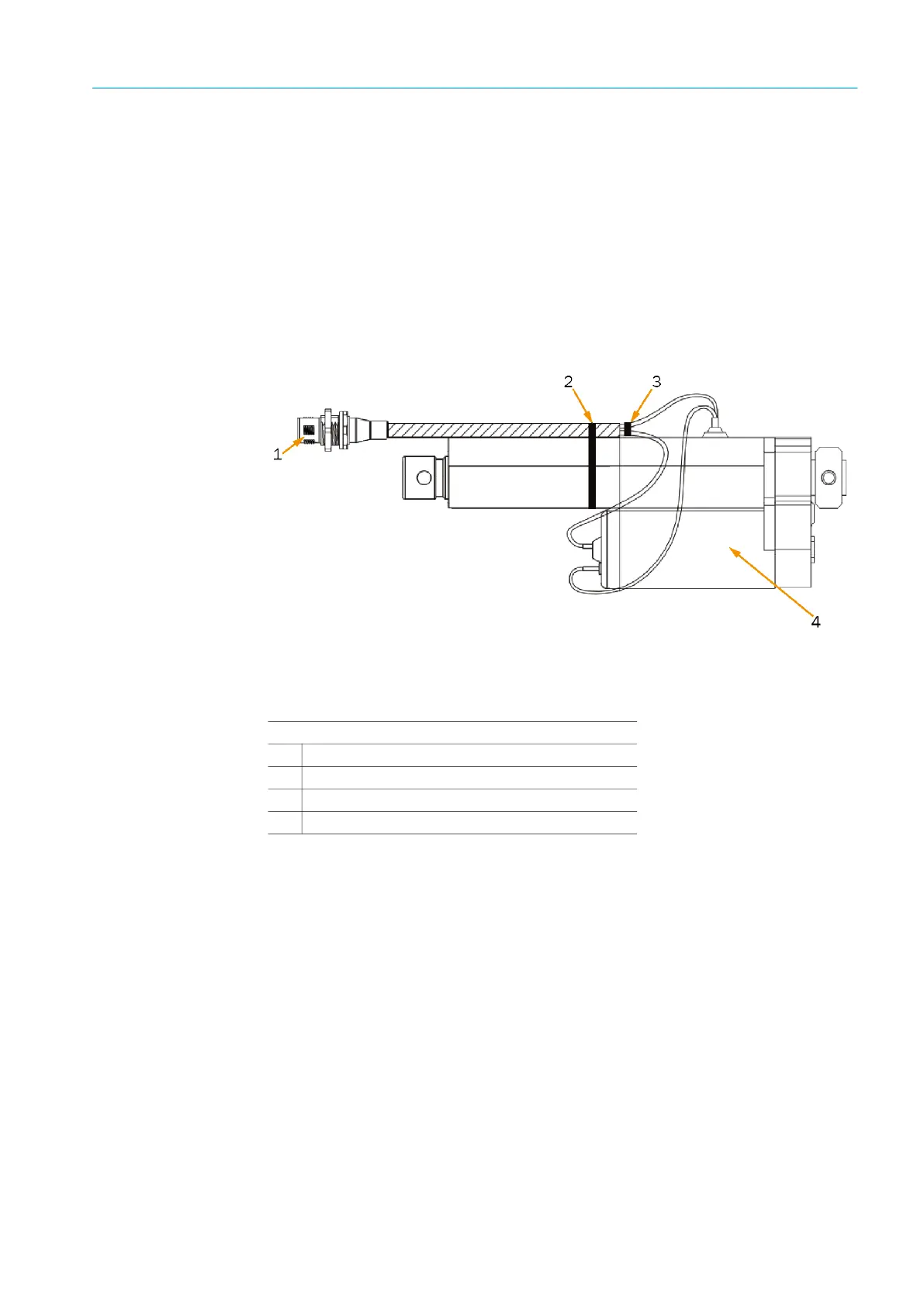

Fig. 12: M12 male connector with actuator connected
Legend
1
M12 4-pin A-coded male connector
2
Cable fixed with cable tie
3
Insulation hose through connection point
4
Actuator motor
