4 INSTALLATION
4.2 Mounting plate
The mounting plate connects the MICS3/OS3 electr. protection hood to the customer
object (machine/wall).
Three positions of the M12 male connector are available for flexible connection.

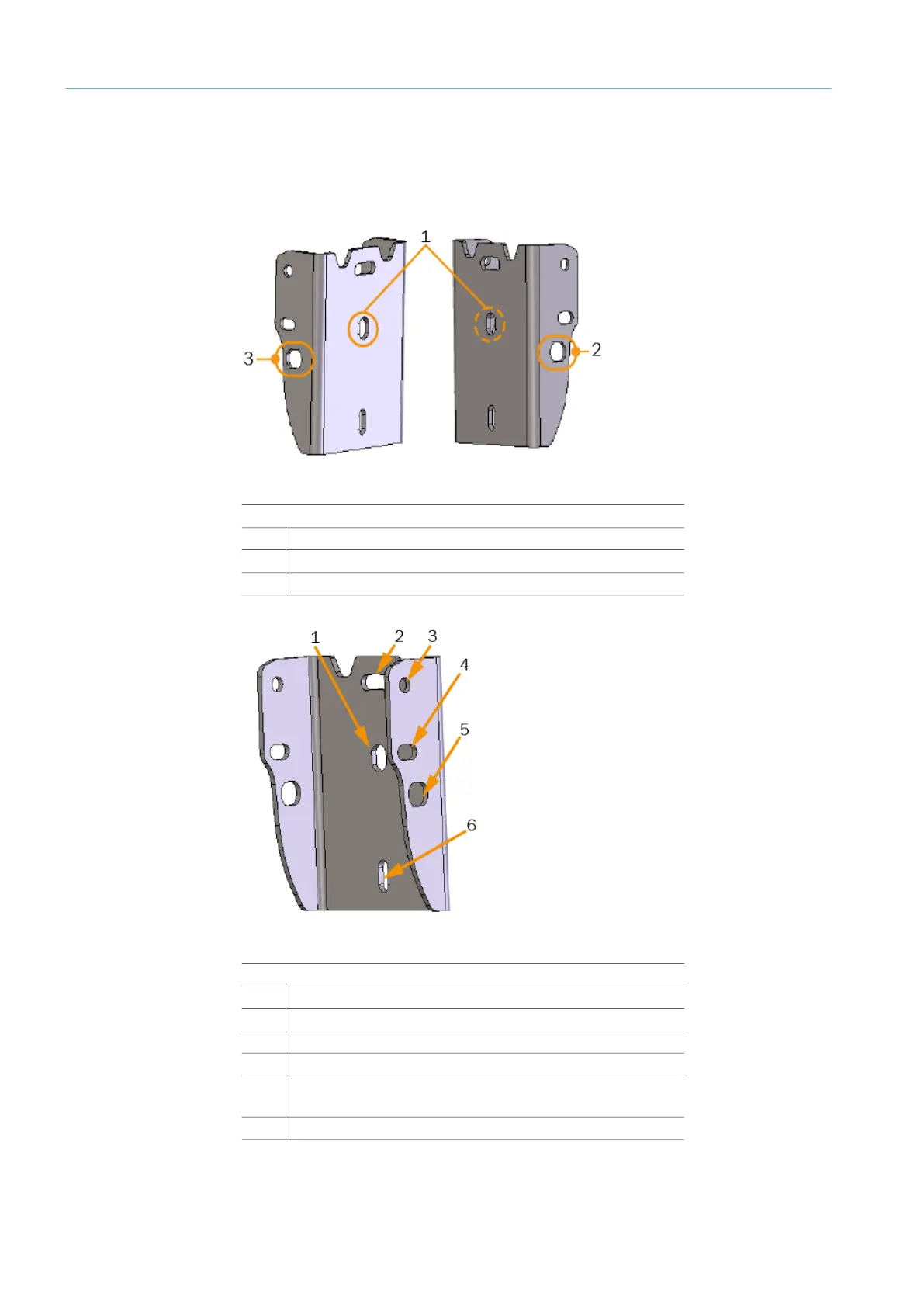

Fig. 7: Mounting plate - M12 male connector connection variants
Fig. 8: Mounting plate
Legend
1
M12 male connector to the rear
2
M12 male connector to the right
3
M12 male connector to the left
Legend
1
Bore hole for M12 4-pin A-coded male connector
2
M8 slot with setting option ± 10°
3
Mounting on frame
4
Mounting on frame with setting option ± 10°
5
Alternative position for M12 4-pin A-coded male connector
(both sides possible)
6
Bore hole for M8 screw (slot 20 mm)
