8025999/V1-0/2021-02| SICKO P E R A T I N G I N S T R U C T I O N S | MICS3/OS3 electr. protection hood
Subject to change without notice
3 PRODUCT DESCRIPTION

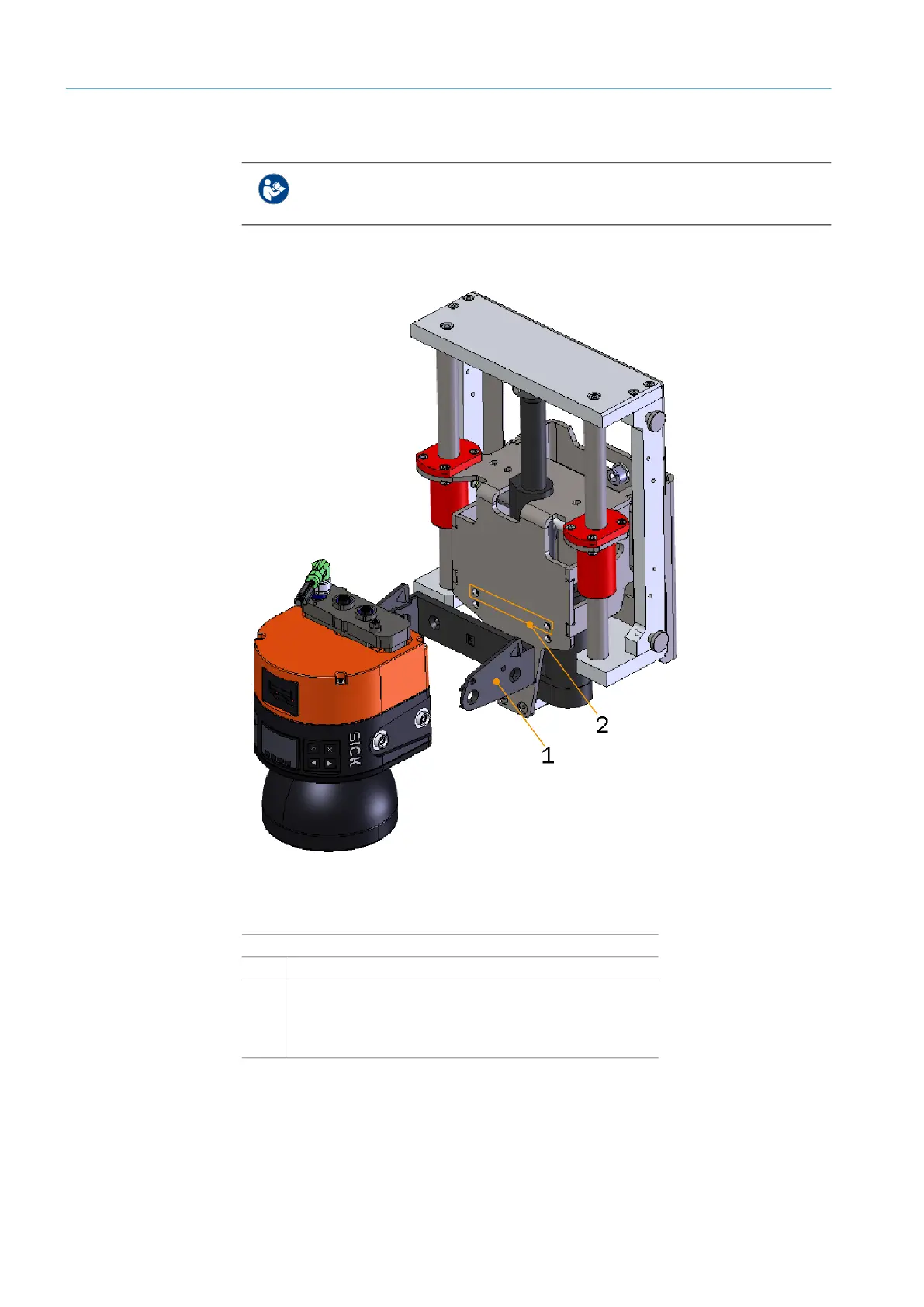

Fig. 5: Mounting kit 1a on mounting bracket
For information on mounting the safety laser scanner to mounting kit 1a, please
refer to the relevant SICK operating instructions, see
Chapter 1.5 Additional technical documentation/information, page 6
Legend
1
Mounting kit 1a
2
Mounting bracket
Mounting kit 1a must be mounted to the two upper bore
holes on the mounting bracket to fasten the oS3 safety
laser scanner.
