SICK MPB10 - Dimensional Drawing

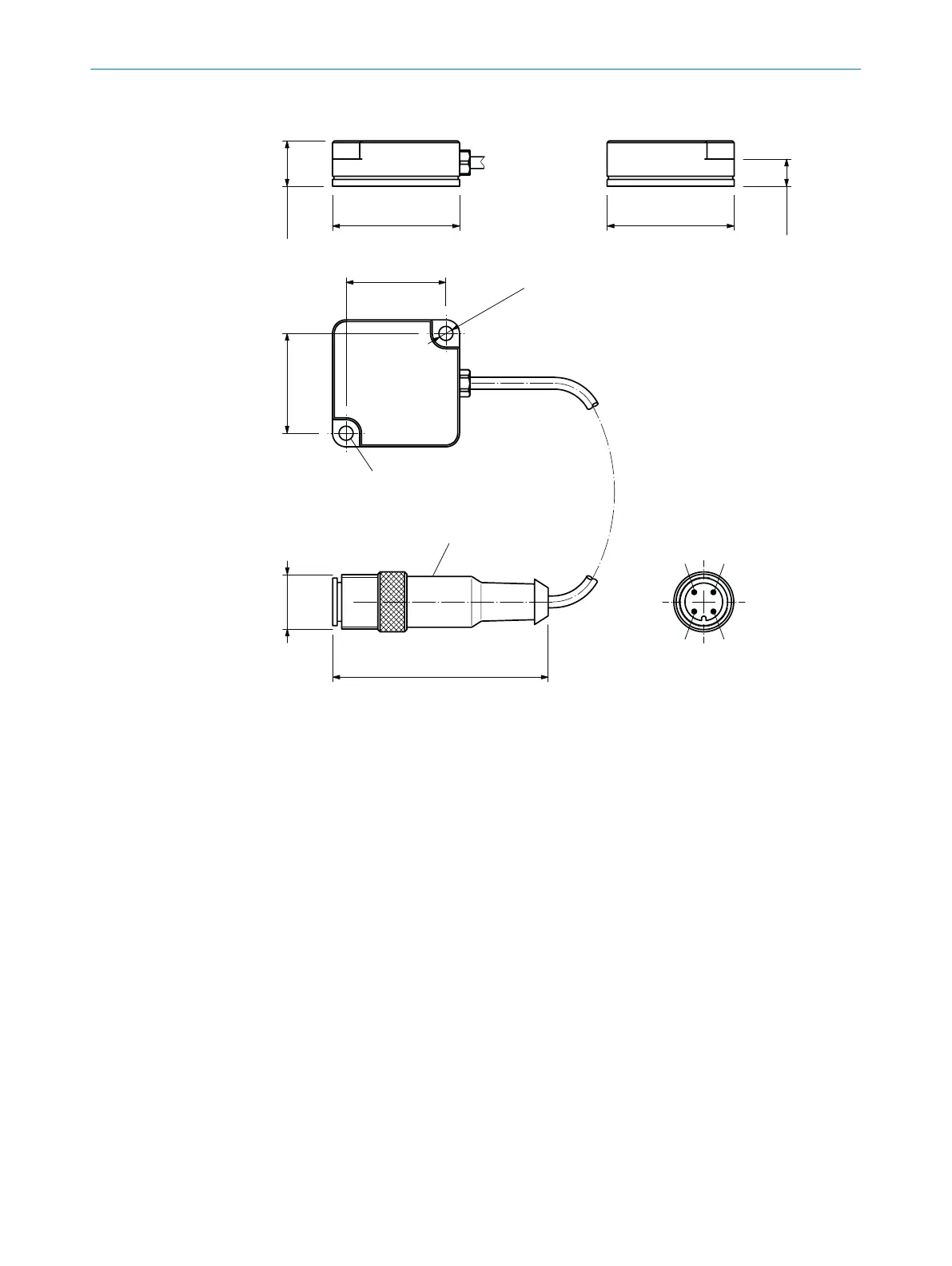

14.2 Dimensional drawing
22 (0.87)
22 (0.87)
Ø 3.1
(0.12)
L = 300
1
10 (0.39)
28 (1.1) 28 (1.1)
6 (0.24)
M12 x 1
40 - 50 (1.57 - 1.97)
2
Pin 1
Pin 3Pin 4
Pin 2
1
M3 threaded mounting hole
2
Connection
14 TECHNICAL DATA
56
