SICK PAC50 - Page 77

Operating Instructions | SICK 77
Operating Instructions PAC50
8017612/ZAB1/2017-02-14 | PAC50
Subject to change without notice
8 Errors

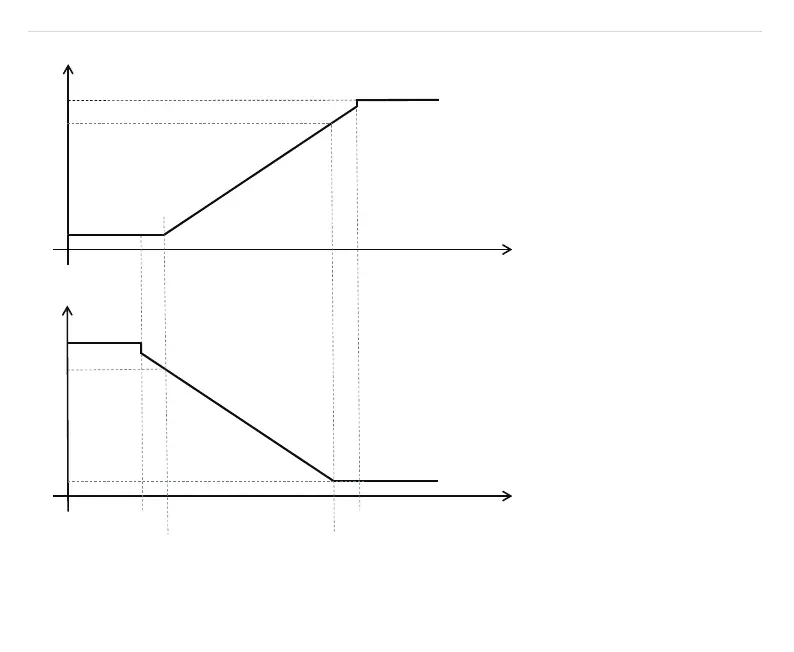

Figure 16: Analogue output behavior in the event of an error (2)
According to the measured pressure value the output voltage exceeds 10 V. This helps to compensate for parasitic voltage drops across an
installation.
p
p
Analog output
0 V … 10 V
(normal function)
Analog output
0 V … 10 V
(interverted mode)
 10 V … 0 V
UL OL
0
10,0
V
0
10,0
V
Lower limit of measuring range Upper limit of measuring range
11,8
11,8
