SICK TR10 Lock

200
200

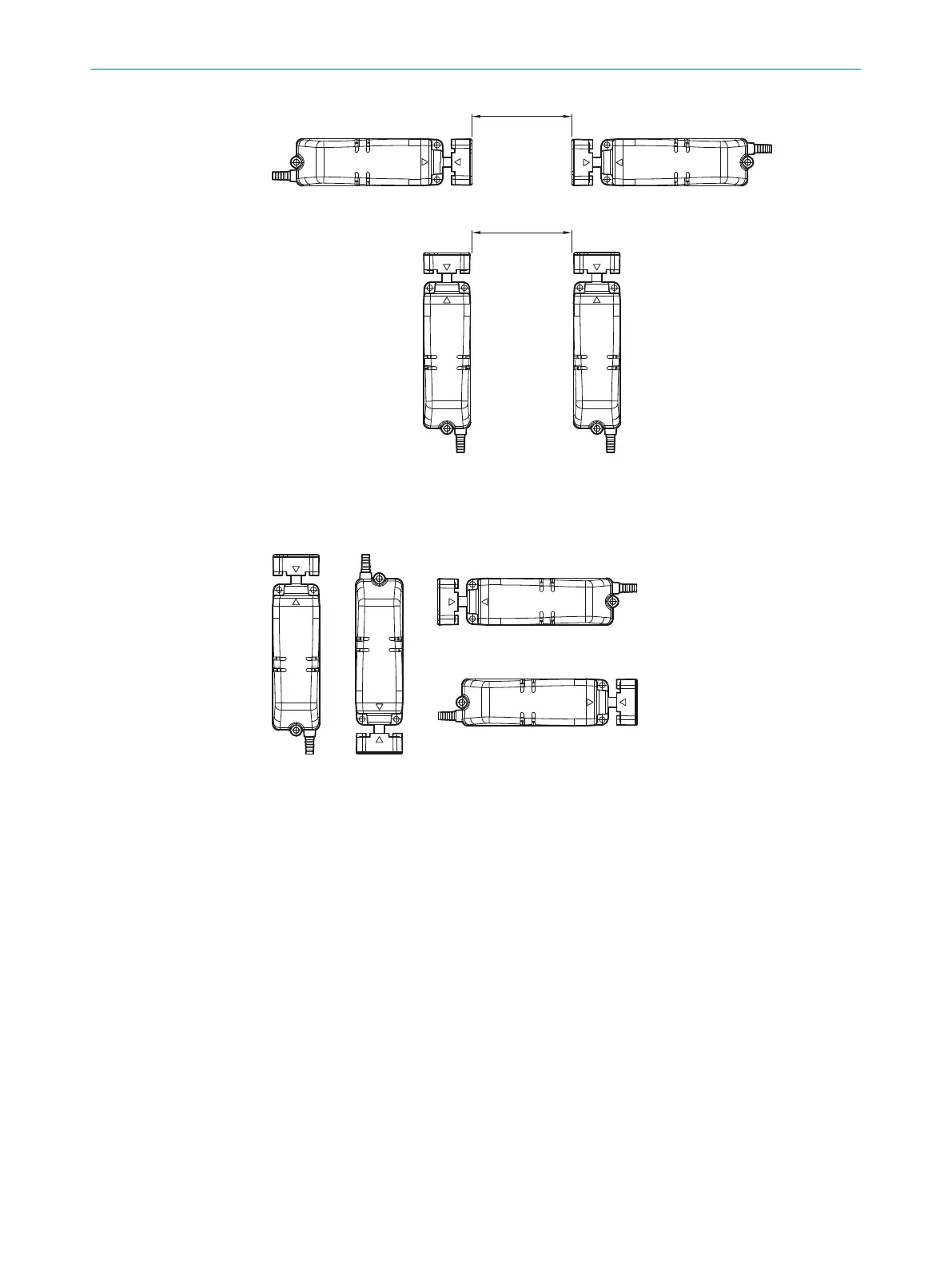

Figure 4: Min. distance for multiple safety switches
Alignment
The safety locking device can be mounted in any alignment.
Figure 5: Possible alignment of the safety locking device
Mounting bracket for actuator
When mounting the device, the mounting bracket included with delivery must be used.
If other mounting brackets are used or the supplied mounting bracket manipulated,
safe functioning cannot be ensured.
Mounting of switch and actuator on the same level
If the switch and actuator are mounted on the same level, it must ensured that there is
6mm of deviation between the mounting levels of the safety switch and the mounting
bracket of the actuator.
4 PROJECT PLANNING
14
