If a fault occurs on a device in a cascade, the relevant device displays the fault and
switches the output signal switching devices off (DIAG light emitting diodes flash red).
All downstream devices switch their output signal switching devices off (STATUS light
emitting diodes flash green).
!
1 2 3 4 5

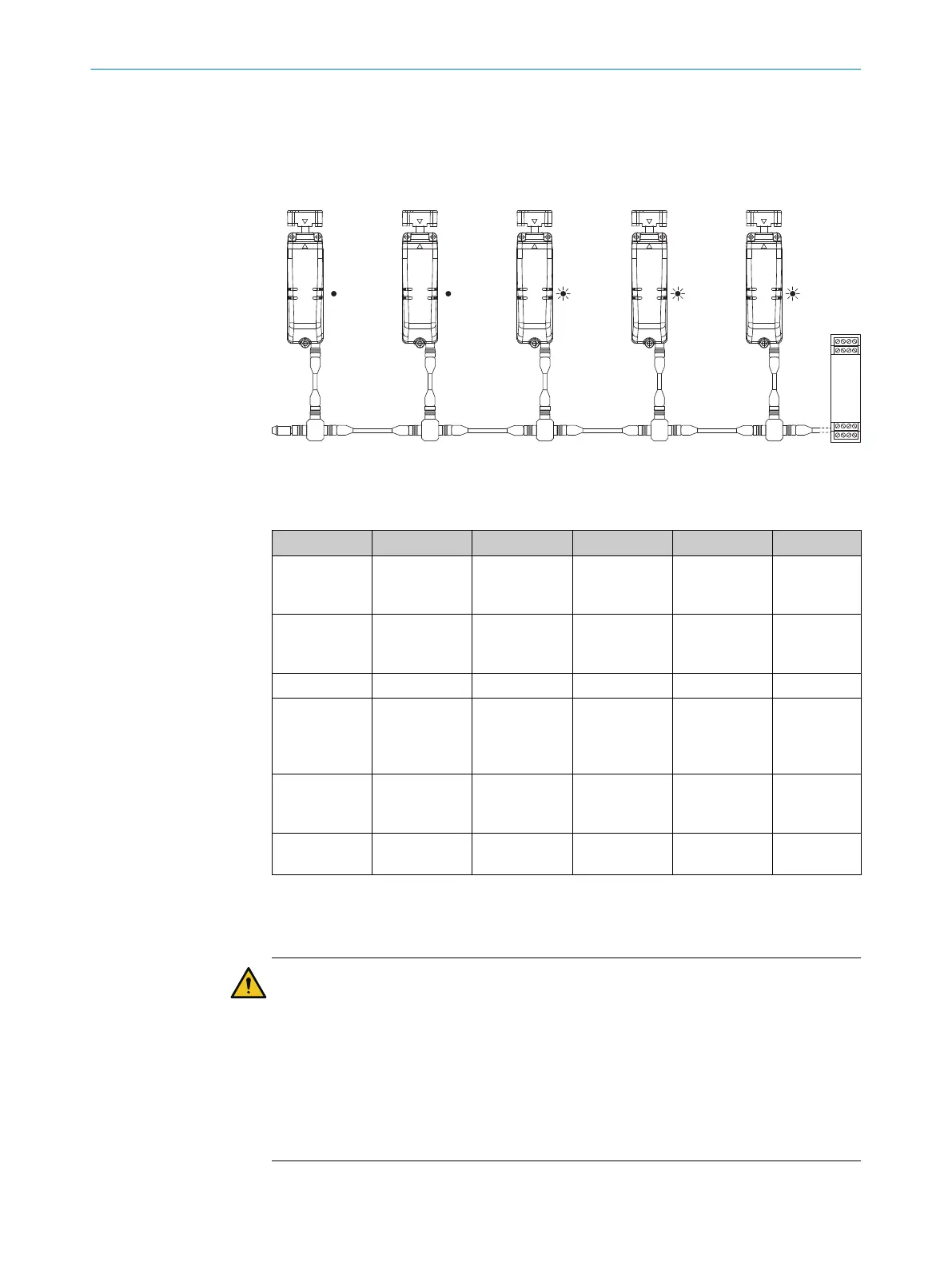

Figure 24: Fault indicators for cascaded safety locking devices. In the example: internal fault on
safety locking device 3
Table 8: Light emitting diode displays in the case of cascading
Device 1
Device 2 Device 3 Device 4 Device 5
STATUS light
emitting
diodes (green)
O O Ö Ö
DIAG light
emitting
diodes (red)
Ö
Fault in device No No Yes No No
Protective
device closed
and lock acti‐
vated
Yes Yes No statement
possible
Yes Yes
State of OSSD
signal at
inputs
ON ON ON OFF OFF
OSSD output
state
ON ON OFF OFF OFF
8.1.3 Fault indicators
Important information
DANGER
Hazard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of
non-observance.
b
Immediately shut the machine down if the behavior of the machine cannot be
clearly identified.
b
Immediately put the machine out of operation if you cannot clearly identify or
allocate the fault and if you cannot safely remedy the fault.
b
Secure the machine so that it cannot switch on unintentionally.
8 TROUBLESHOOTING
