Mower FA
- 19 -

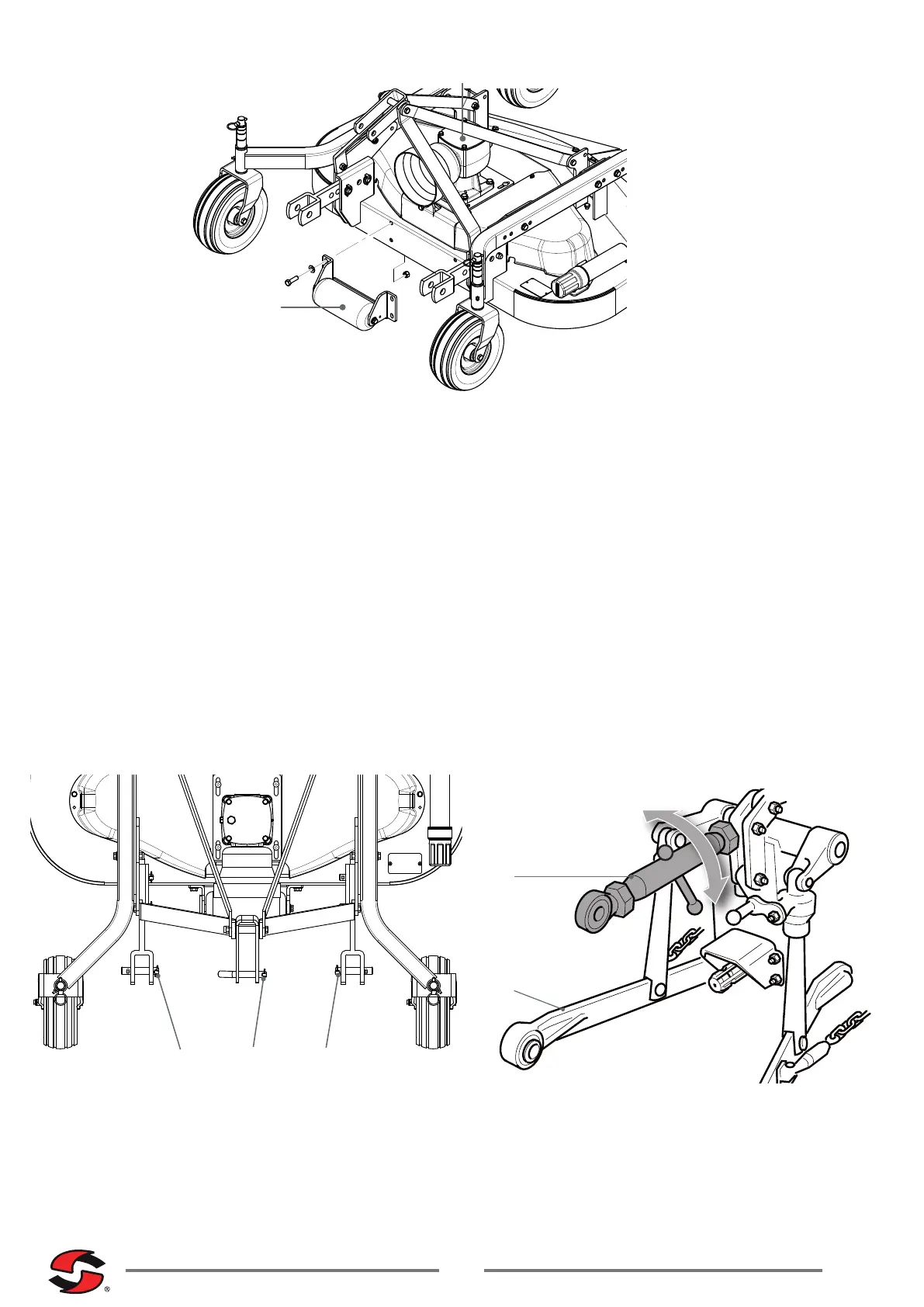

• Mount the support roller “H” onto the frame “C”;
• Fill the multiplier gearbox “I” with oil as described in sec. 8.1.
4.5 ATTACHING THE MOWER TO THE TRACTOR
The machine must be connected to tractors of adequate weight and power, with
3-point hitch of 1st standard category.
To connect the mower to the tractor using the 3-point hitch:
• On a at surface, carefully approach the tractor in reverse to the front of the
mower;
• Remove the 3 spring plugs from their pins and remove the pins from their
housings;
• Position the joints of the lifting arms “C” of the tractor in correspondence with
the holes of the lower coupling arms and replace the pins “B”;
• Position the adjustment rod hole “D” of the tractor to the pin hole ”A” and
reinsert the related pin;
• Replace all the spring safety pins into the holes of the 3 pins “A” and “B”;
• Adjust the upper tie-rod “D” if necessary: the 4 wheels must be fully resting
on the ground.
H
I
A
B
B
C
D
