SH100/185T- SH160/215T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.5 - 2008
26
SH100/185T - SP 220 HYD - SP 300 HYD - SP 550 HYD
2.4 - 2007
25

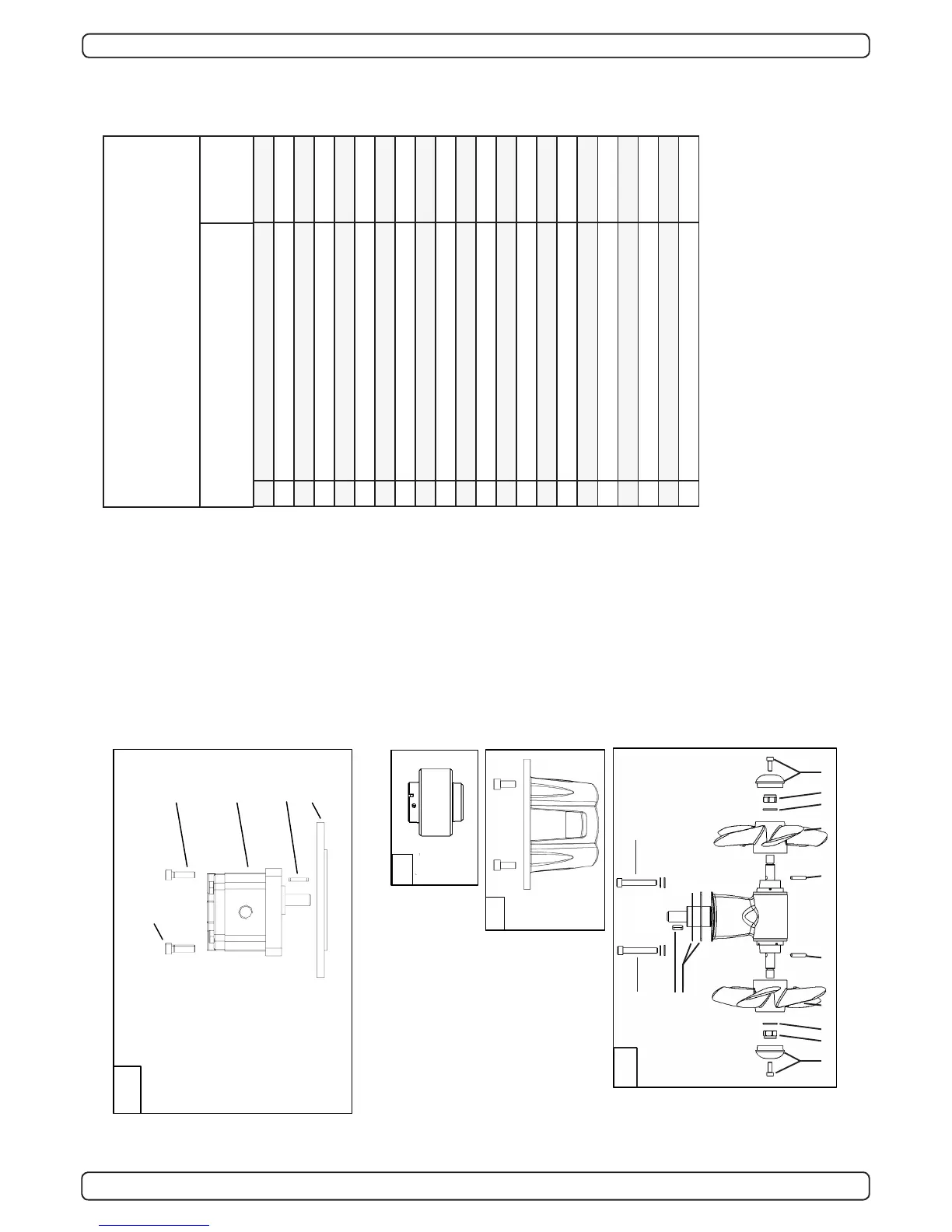

Spareparts SP 100 HYD
SP 100 HYD
11/02 <
Part #
Ref:
23. Complete hyd. motor assem bly options:
SP100HYD motor, U-06, complete 72100UL2
SP100HYD motor, U-08, complete 72110UL2
SP100HYD motor, U-10, complete 72115UL2
22.
Hydraulic motor bolts 6 1360
21.
Hydraulic motor options:
U-06 (6ccm) 72100/U-06
U-08 (8ccm) 72100/U-08
U-10 (10ccm) 72100/U-10
20.
Drive shaft key 7 1440
19.
Adaptor plate 10 21301
18. Complete flexible coupling
7 1452
17.
Rubber element 7 1451
16. Oil container with holder
20 0300
15. Oil hose w ith hose clamps
20 0400
14. Complete motor bracket
8 0500
13.
O-ring seals in motor bracket 7 1340
12. Complete gearleg
8 0600
11.
Gearleg bolt 7 1080
10.
Drive shaft seal 7 1350
9.
Drive shaft key 6 1440
8.
Propeller shaft seal 6 1350
7.
Gasket 8 0610
6.
Oil drain screw w ith gasket 6 1220
5.
Zinc anode 7 1190
4.
Locknut 4 1260
3.
Propeller w asher 7 1181
2.
Propeller drive pin 6 1241
1.
Propeller 7 1260
Model period
Original model
Other comments:
16
23
17
18
13
14
15
11
7
8
6
2
1
2
1
3
45
9
10
12
8
11
19
20
22
22
21
26
SE 80/185 T - SE 100/185 T - SE 130/250T 1.0.1- 2008
SE 100/185 T
15
17
18
16
2223 212425262829
20 19
27
30
13
14
11
7
8
6
2
1
2
1
3
45
9
10
12
8
11
9
10
11
20
23
1 2345 2 1 3 4 5
6
7
8
8
22
21
19
18
17
16 15 14
13 12
23 Complete electric motor assembly 8 0101 12 8 0101 24
22 Nut for solenoid cover 6 8810 6 8810
21 Solenoid Cover 6 2025 6 2025
20 Complete solenoid kit 6 0131 12 6 0131 24
19 Solenoid 1013693 41371243
18 Internal wiring loom 15 1273B 6 1226B
17 Electronic control box 6 1232i 6 1232i
16 Solenoid bracket kit 9 0135 12 10 0140 24
15 Key for eletric motor shaft 10 1440 10 1440
14 Electric motor N/A N/A
13 Brush springs for motor (kit) 8 0170 12* 8 0170 24*
12 Brushes for motor (kit) 8 0180 12* 8 0180 24*
11 Complete exible coupling 7 1462 7 1462
10 Complete motor bracket 8 0501 8 0501
9 Complete gearleg 8 0601 8 0601
8 Gearleg bolt 7 1080 7 1080
7 Driveshaft key 6 1440 6 1440
6 Gasket 8 0610 8 0610
5 Zink anode 7 1190 7 1190
4 Locknut 4 1260 4 1260
3 Propeller washer 7 1181 7 1181
2 Propeller drivepin 6 1241 6 1241
1 Propeller 7 1261 7 1261
12V
24VRef:
Part #
SE 100/185T
09/07 <
Original model
Model period
* Please provide thruster serial number
when ordering brushes and brush springs
12
13
14
15
15
16
Spareparts SH160/215T
16 Complete hyd. motor assembly options 6 8810
SH160 motor, U-06 complete 72100UL2
SH160 motor, U-08 complete 72110UL2
SH160 motor, U-10 complete 72115UL2
15 Hydraulic motor bolts 6 1360
14 Hydraulic motor options
U-06 (6 ccm) 72100/U-10
U-08 (8 ccm) 72100/U-10
U-10 (10 ccm) 72100/U-10
13 Drive shaft key 7 1440
12 Adaptor plate 1021301
11 Complete exible coupling 7 1463
10 Complete motor bracket 9 0500
9 Complete gearleg 10 0600
8 Gearleg bolt 10 1080
7 Driveshaft key 10 1440
6 Gasket 9 1355
5 Zink anode 20 1180
4 Locknut 10 1260
3 Propeller washer 20 1181
2 Propeller drivepin 9 1241
1 Propeller 9 1261
Ref:
Part #
SH 160/215T
08/08 <
Original model
Model period
