3TK2810-1 safety-related speed monitor
System Manual, 01/2011, 926246402000 DS 02
29
Assembling
4
4.1 Mounting the device on a DIN rail
Requirements
● At the installation location, a horizontal 35 mm mounting rail in accordance with
DIN EN 60715 is properly secured
● Please observe the information about the mounting position in Chapter "Technical data
(Page 63)".
DIN rail mounting procedure

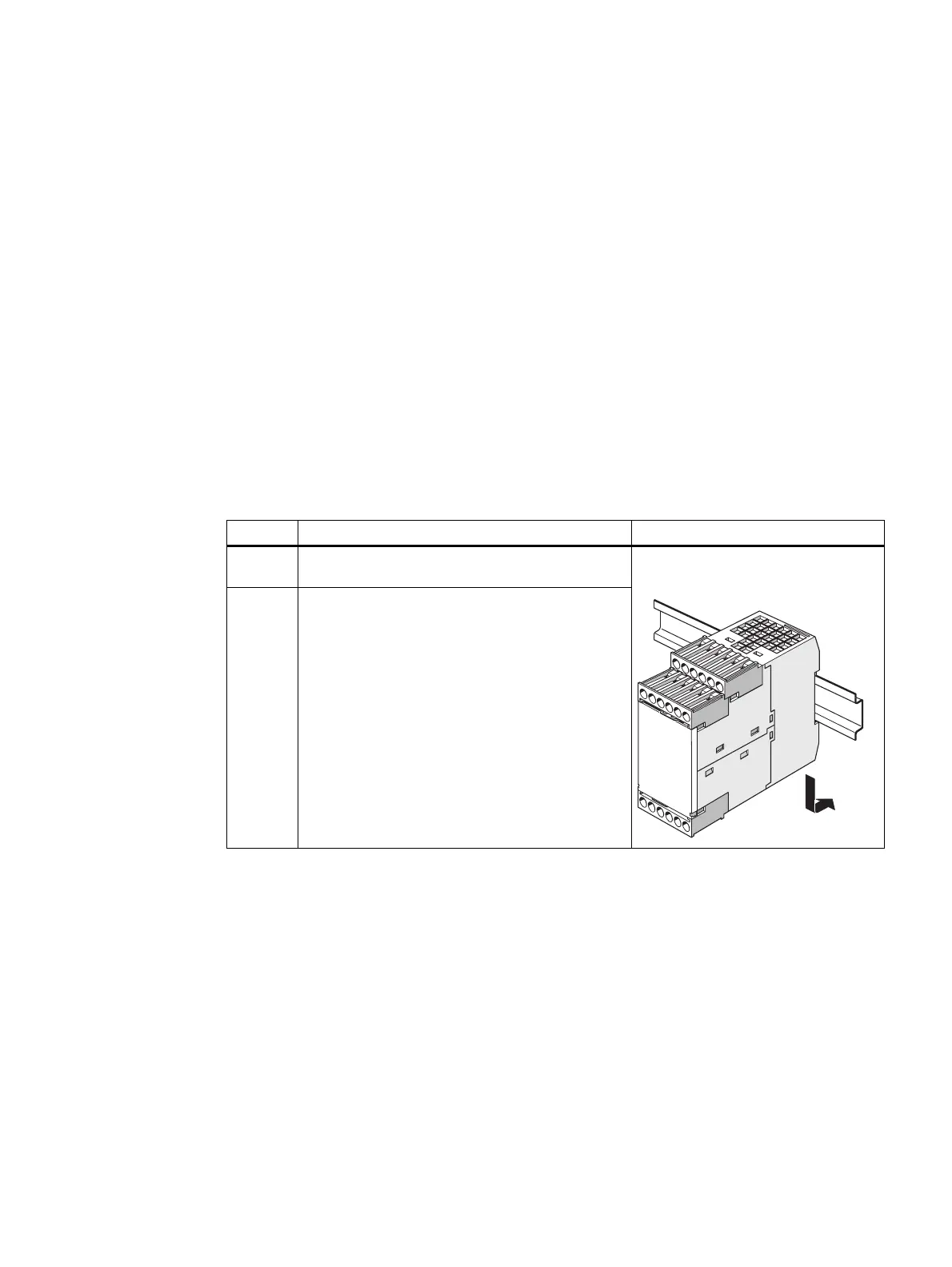

Step Operating instruction Figure
1 Hang the back of the device onto the upper edge
of the DIN rail
2 Press the lower half of the device against the DIN
rail until the device engages
