4.2 Mounting the device on a level surface
3TK2810-1 safety-related speed monitor
30 System Manual, 01/2011, 926246402000 DS 02
4.2 Mounting the device on a level surface
Requirements
Please note the following requirements for mounting on a level surface:
● Please observe the information about the mounting position in Chapter "Technical data
(Page 63)".
● T
wo properly ex
ecuted drill holes with thread or plug on the level surface
For details of the distances between the drilled holes, please refer to the relevant
dimension drawings in Chapter "Dimension drawings (Page 69)".
● Two screws
with a maximum thread diameter of 4.8 mm
● Two plastic securing brackets
Please refer to the accessories list for the relevant order number in Chapter "Accessories
(
Page 21)".
Procedure for mounting on a level surface

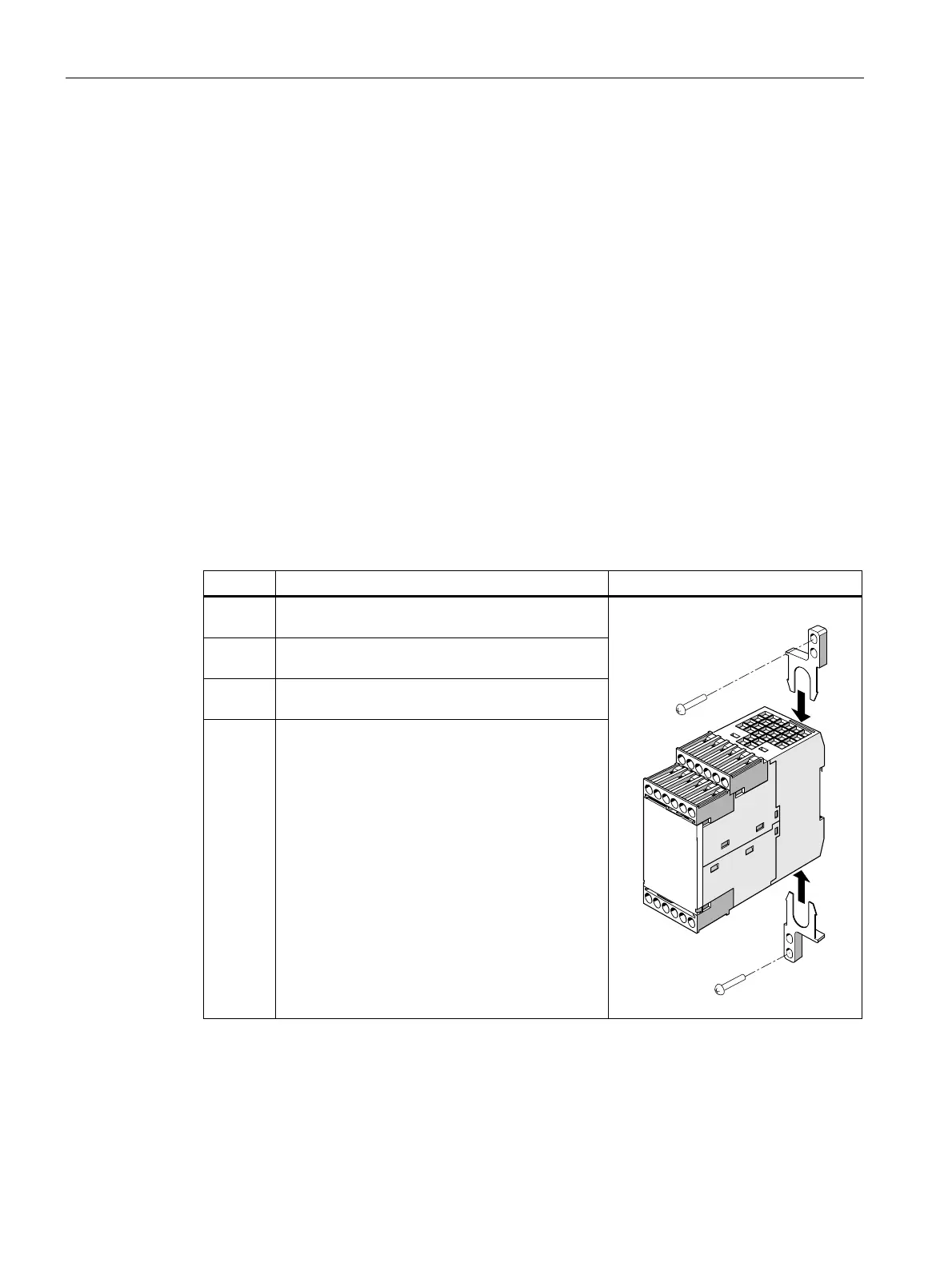

Step Operating instruction Figure
1 Insert the securing brackets into the openings
provided on the device until they engage.
2 Hold the device up to the surface prepared for
screw fastening.
3 Insert the screws through the oblong holes in the
securing brackets.
4 Screw the device onto the level surface so that it
is secure.
