6.3.2 Configuration examples

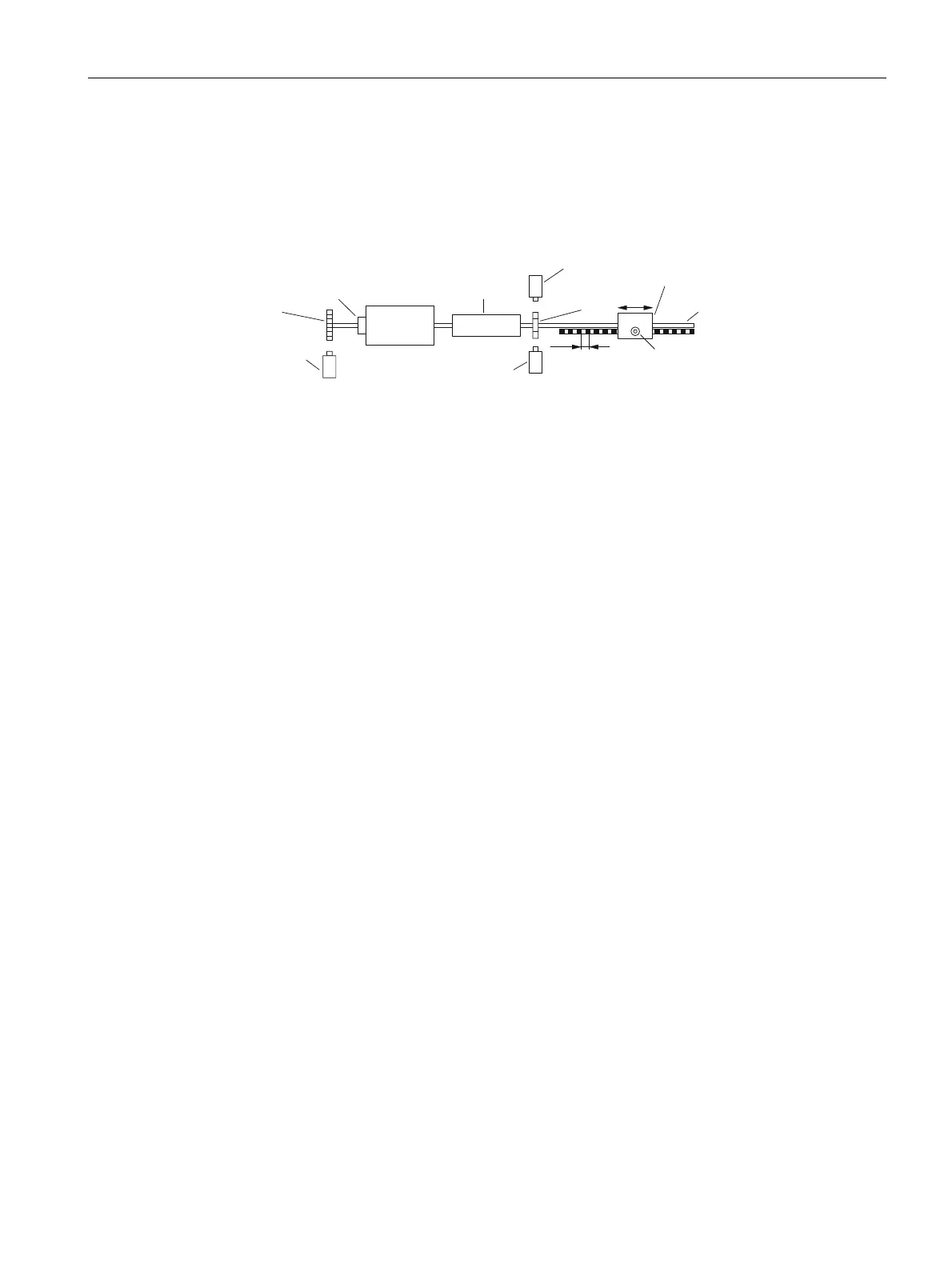

6.3.2.1 Rotational motion, rotary encoder
(QFRGHUZLWK
SXOVHV
*HDUXQLW
PP
6OLGH
6SLQGOHZLWK
LQFUHDVHPPUHY
,QLWLDWRU(
6FHQDULR)
,QLWLDWRU(
6FHQDULR%
*HDUZKHHOZLWK
WHHWK
,QLWLDWRU(
6FHQDULR$
,QLWLDWRU(
6FHQDULR$%&(
0RWRU

*HDUZKHHOZLWK
WHHWK
Settings on the display using the example above:
Scenario A:
1. Parameterization:
1.1 Monitored motion: Rotational
1.2 Encoder type: Rot. encoder
1.3 Encoder selection: E1+E2
1.6 Initiator settings:
Resolution E1 16 pulses/rev.
Resolution E2 4 pulses/rev.
1.4 Increase/transmit:
Transmission: 50:1
The speed limits (rpm) to be set refer to the speed at initiator E1.
Scenario B:
1. Parameterization:
1.1 Monitored motion: Rotational
1.2 Encoder type: Rot. encoder
1.3 Encoder selection: E1+E2
1.6 Initiator settings:
Resolution E1 4 pulses/rev.
Resolution E2 4 pulses/rev.
1.4 Increase/transmit:
Transmission: 1:1 (since the measurement is made at the
same point)
The speed limits (rpm) to be set refer to the speed at initiator E1.
