4.3 Disassembling the device
3TK2810-1 safety-related speed monitor
System Manual, 01/2011, 926246402000 DS 02
31
4.3 Disassembling the device
WARNING
Hazardous Voltage.
Can Cause Death, Serious Injury, or Property Damage.
Before starting work, therefore, disconnect the system and devices from the power supply.
Requirements
● All system interface connections are terminated.
● The terminal blocks have been removed or disconnected.
Disassembling the device from a DIN rail

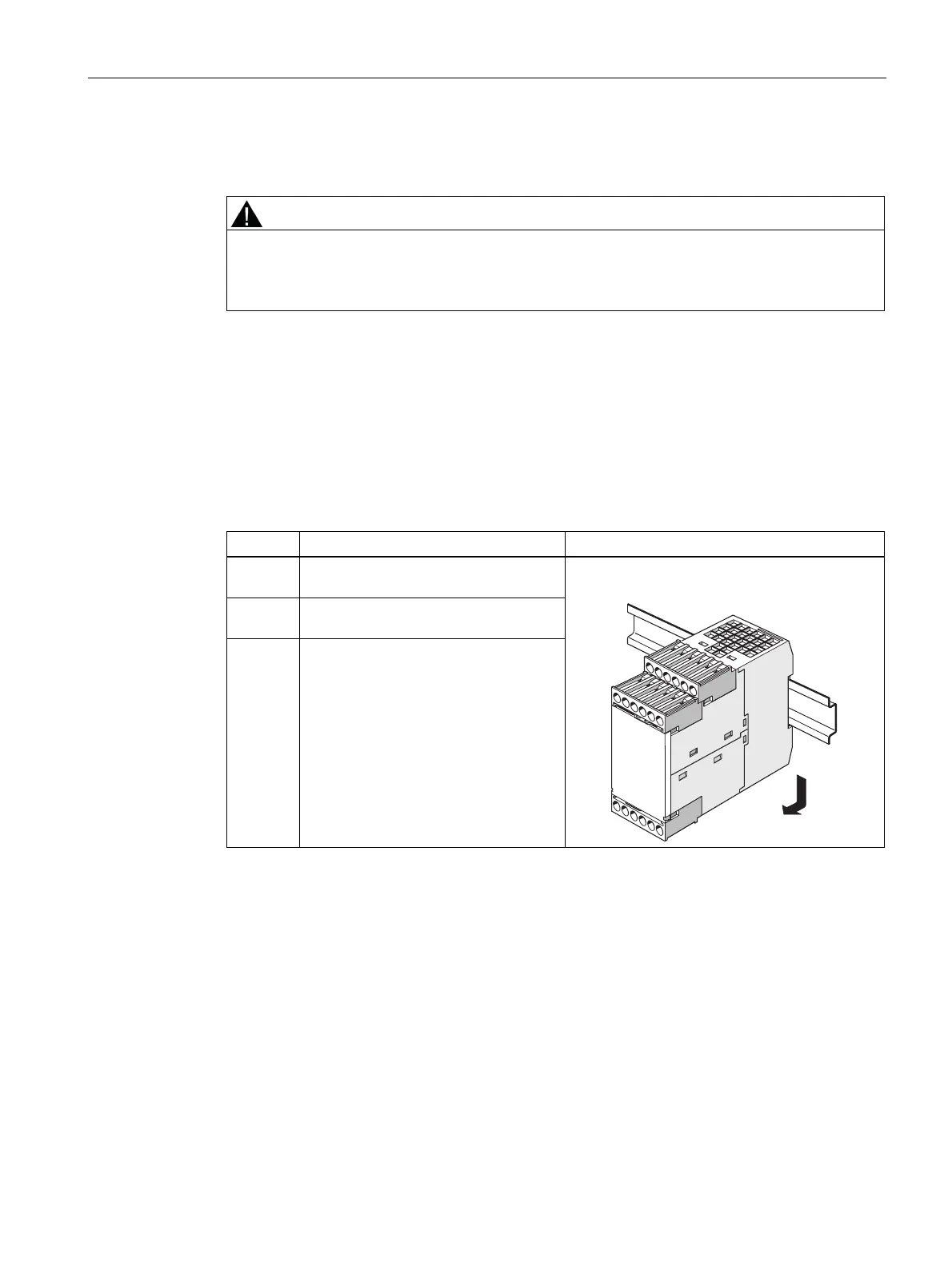

Step Operating instruction Figure
1 Pull the device down until the lower half
can be pulled away from the DIN rail.
2 Pull the lower half of the device away
from the DIN rail.
3 Lift the device from the upper edge of
the DIN rail.
