3.5 Design of enclosure
Distributed I/O device 6DL2804-xxxxx
12 Hardware Installation Manual, 03/2014, A5E00378896F-03
3.5
Design of enclosure
Standard enclosure 6DL2804-0xD...Gxx
①
Mounting plate
⑤
M20 cable glands
②
Drainage/pressure compensation nozzle
⑥
M32 cable glands
③
Equipotential bonding rail with terminals
⑦
M6 grounding screw
④
M16 or M20 cable glands
⑧
Removable connection to enclosure ground

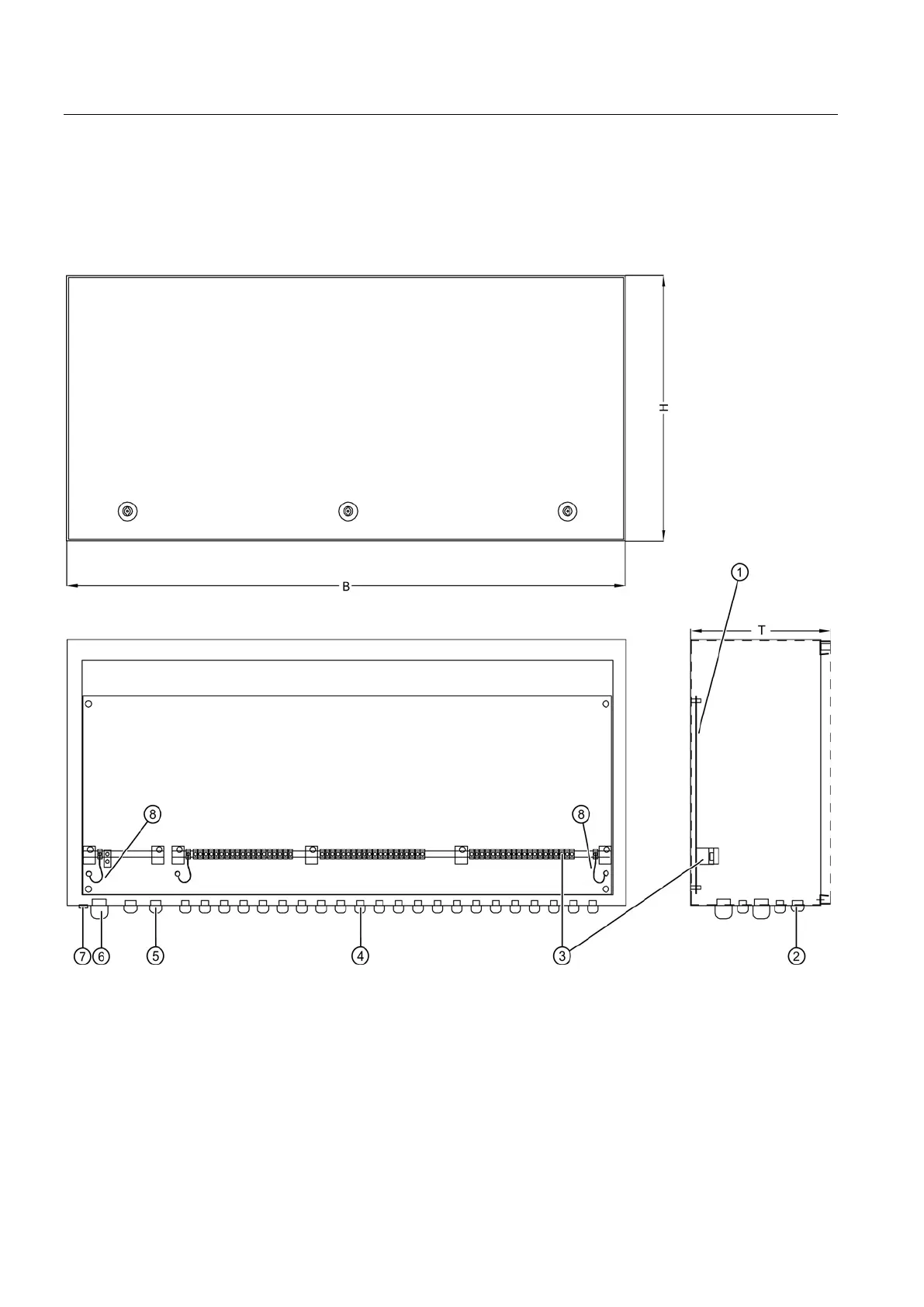

Figure 3-1 Standard enclosure 6DL2804-0xD...Gxx
W x H x D: See Structure of the type designation (Page 11)
