Description

3.5 Design of enclosure

Distributed I/O device 6DL2804-xxxxx

14 Hardware Installation Manual, 03/2014, A5E00378896F-03

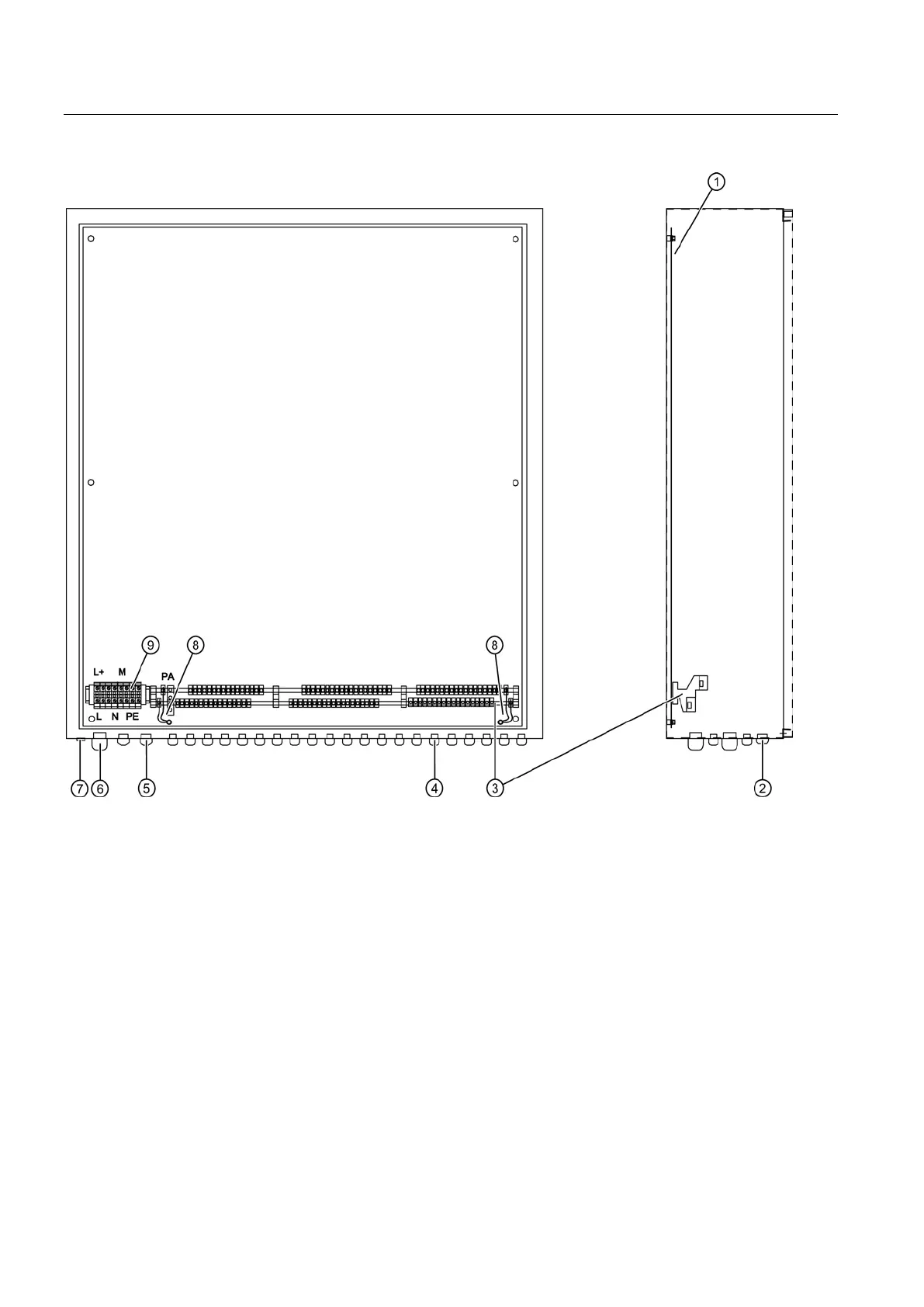

①

Mounting plate

⑥

M32 cable glands *)

②

Drainage/pressure compensation

nozzle

⑦

M6 grounding screw

③

Equipotential bonding rail with

terminals

⑧

Removable connection to enclosure ground

④

M16 or M20 cable glands *)

⑨

Optional power supply terminals

⑤

M20 cable glands *)

*) The size and number of cable glands can be defined specific to the project.

Figure 3-3 Standard enclosure 6DL2804-0xH…Wxx, view 2
