Functions
8.2 Time stamping the input signals with IM 153-2
ET 200M
Operating Instructions, 04/2022, EWA-4NEB7806006-09
143
Sample configuration: Communication processor as DP master and DP clock master

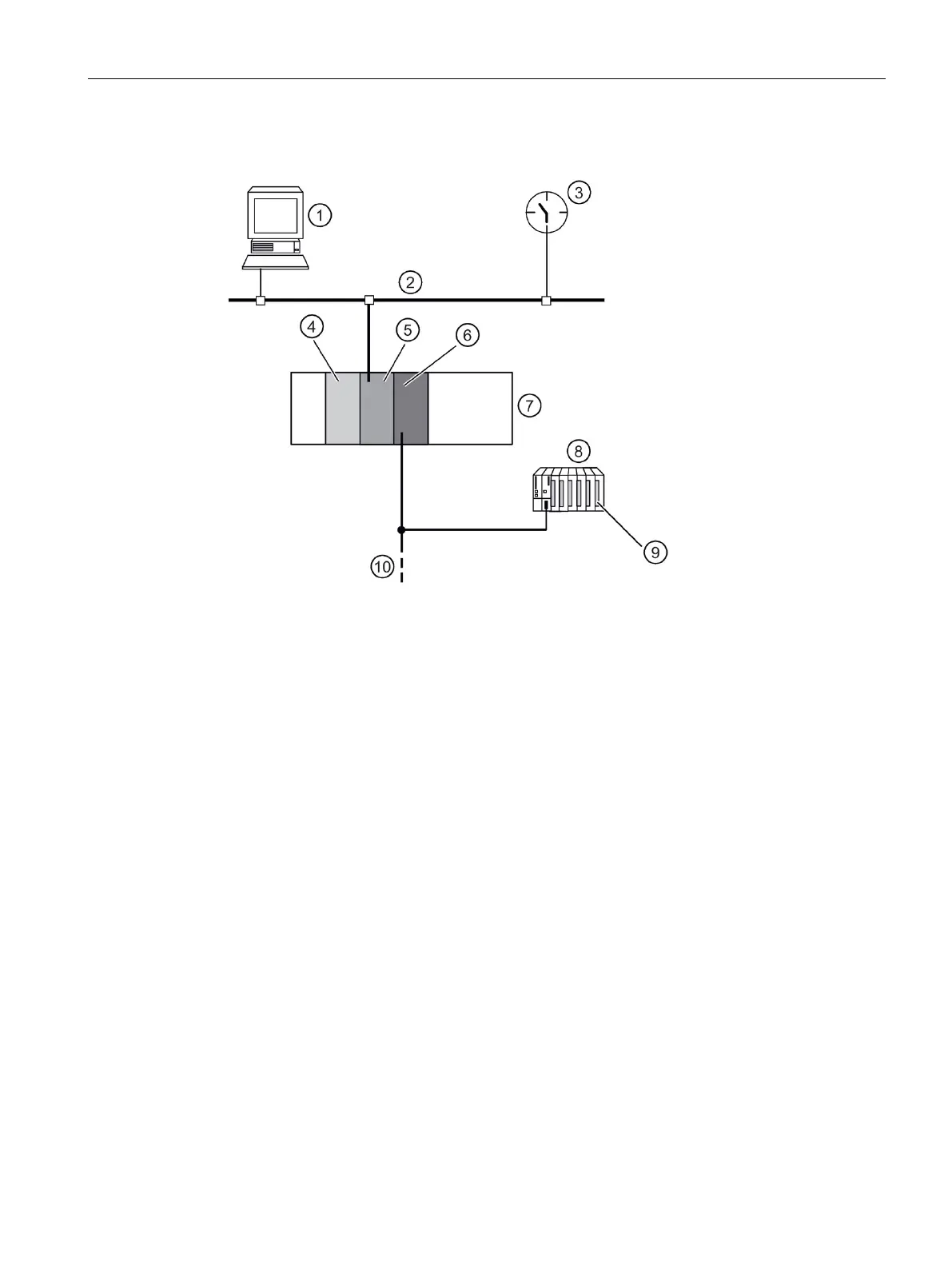

Figure 8-11 Sample configuration: Communication processor as DP master and DP clock master
①
Operator station (OS) for unit visualization
②
Industrial Ethernet
③
Time master e.g. SICLOCK
④
CPU
⑤
Communication processor for connection to an Industrial Ethernet
⑥
Communication processor as DP master and DP clock master
⑦
Automation system
⑧
ET 200M Distributed I/O
⑨
Digital input group; e.g. SM 321-7BH…
⑩
PROFIBUS DP
