9.1.3.4 Manufacturer ID
Definition
The manufacturer ID contains a code that describes the type of the DP slave.
Manufacturer ID
Table 9- 7 Structure of the manufacturer ID (Bytes 4, 5)
Byte 4
Byte 5
Manufacturer ID for
80H
1DH
IM 153 / IM 153-1
80H
1EH
IM 153-2
80H
71H
IM 153-2 FO
9.1.3.5 Evaluating the slave diagnosis
The following figure shows a procedure for evaluating the slave diagnosis in a systematic
manner. If, during the configuration, you have not deselected any diagnosis, the specified
byte addresses shall apply. If individual diagnoses have been deselected, move the byte
addresses accordingly.

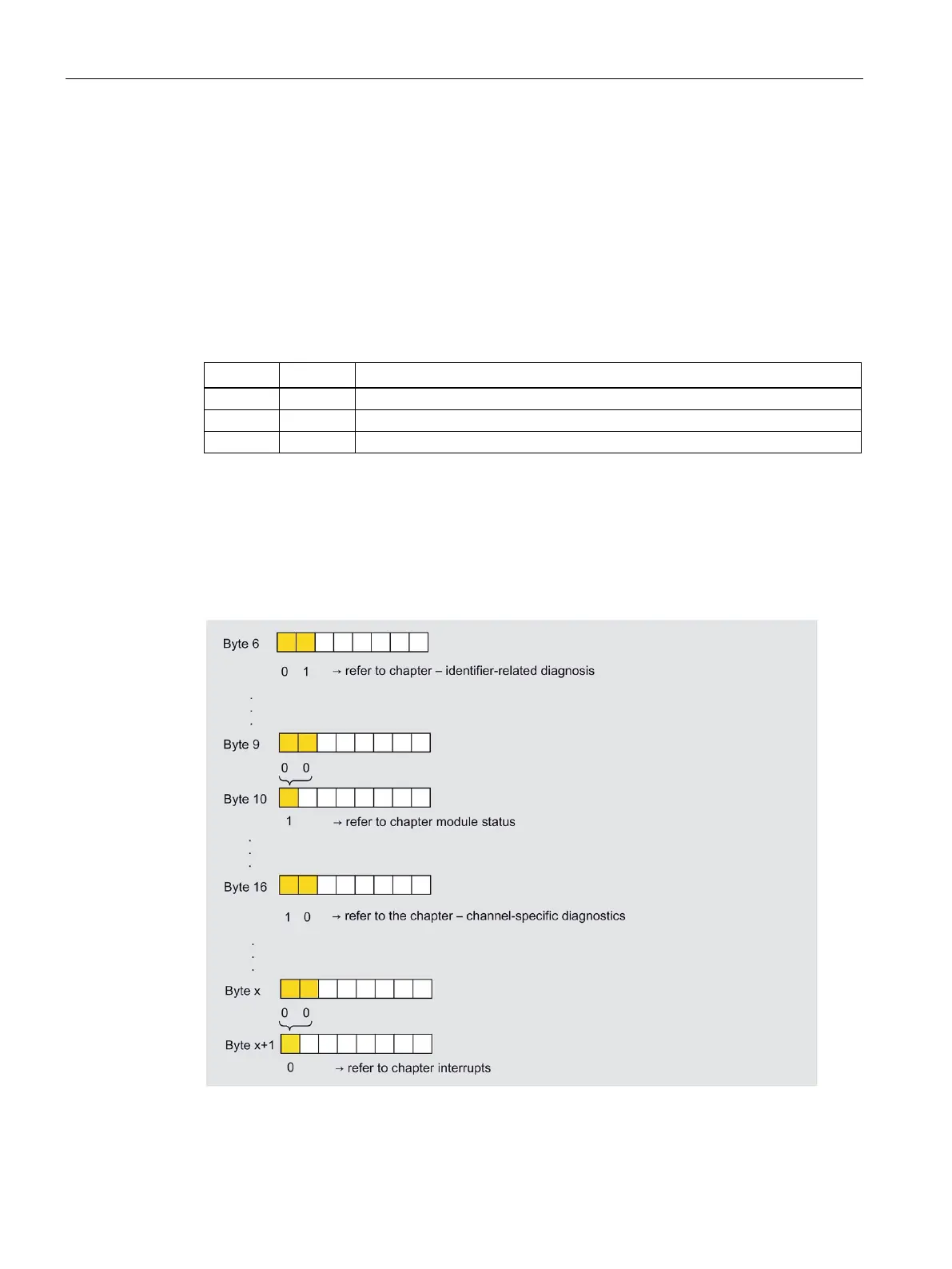

Figure 9-3 Evaluating the slave diagnosis
