500-8067.9 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * Revision 03 109

Operation

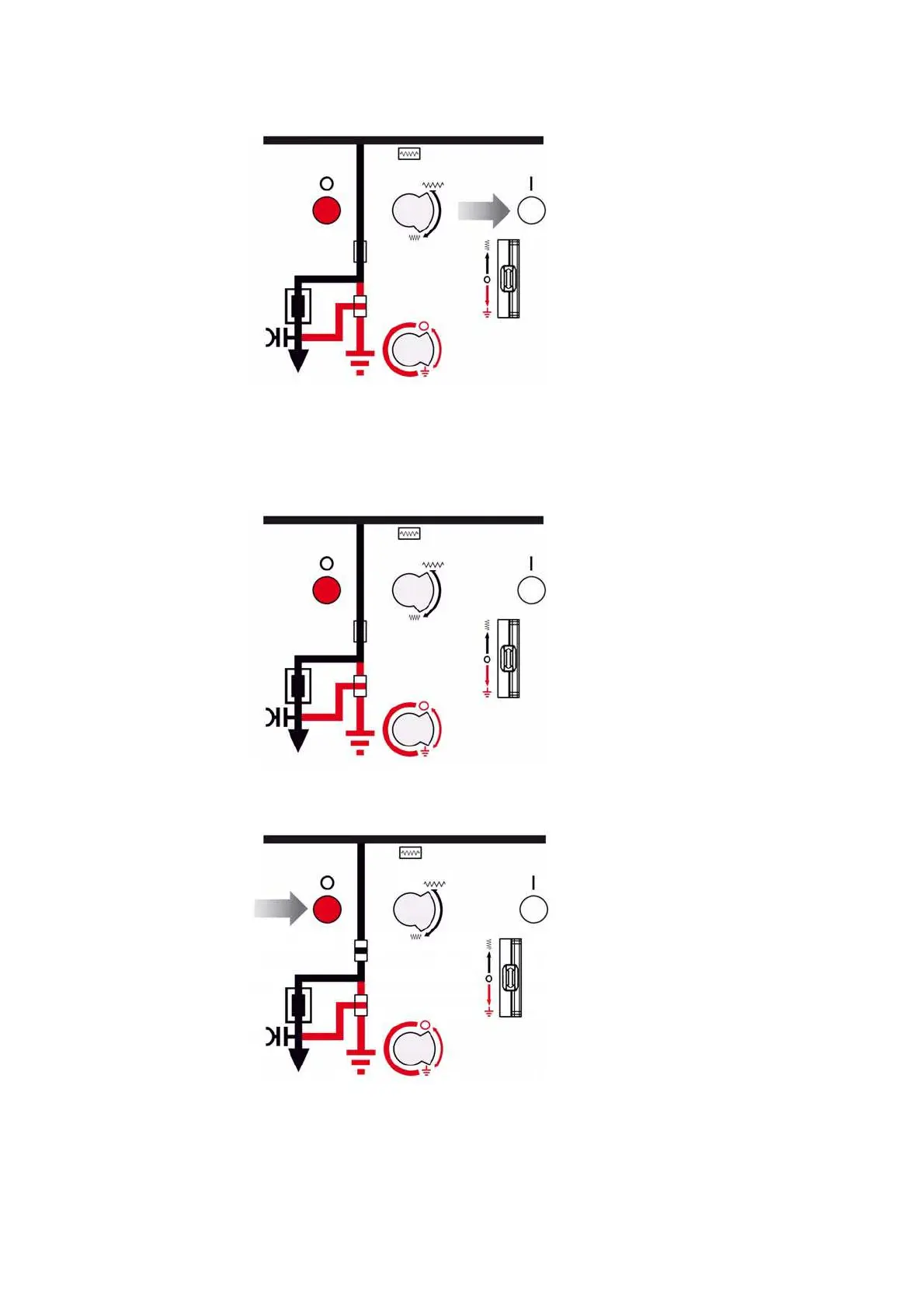

Ö Actuate the "ON" pushbutton.

r The feeder is closed.

Disconnecting the transformer feeder from the busbar

Ö Initial situation CLOSED.

Ö Actuate the "OFF" pushbutton.

r The feeder is open.
