Description
16 Revision 03 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * 500-8067.9
Equipment
Mechanism operation Operating lever for charging the springs of the switch-disconnector and the make-proof
earthing switch. Coding of the operating levers is optionally possible.
Motor operating
mechanism (optional)
Operation
• Local operation by momentary-contact rotary control switch (option)
• Remote operation (standard) applied to terminal
Operating voltages for motor operating mechanisms and tripping coils
• 24, 48, 60, 110, 220 V DC
• 110 and 230 V AC 50/60 Hz

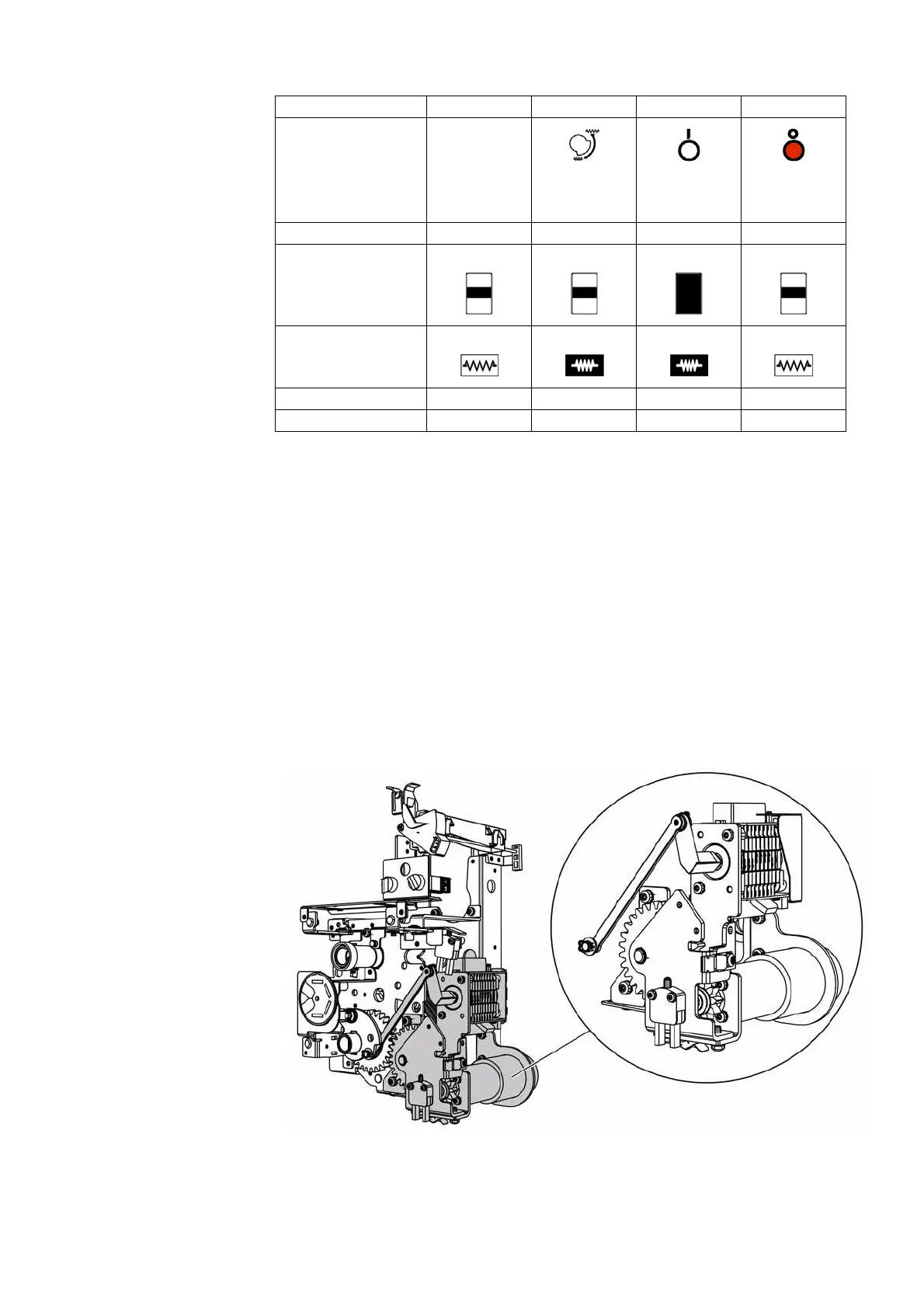

Fig. 7: Motor unit with auxiliary switch block
Sequence 1234
Operation
Charging the
springs
Switch position OPEN OPEN CLOSED OPEN
Position indicator
"Spring charged" indicator
Closing spring not charged charged not charged not charged
Opening spring not charged charged charged not charged
