Installation
64 Revision 03 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * 500-8067.9
Unloading and transport in
orginal packing
Ö Transport the switchgear by means of a crane or a fork-lift truck.
Removing
the wooden pallets
The transport units are screwed on the wooden pallets with transport angles or directly
in the switchgear subframe.

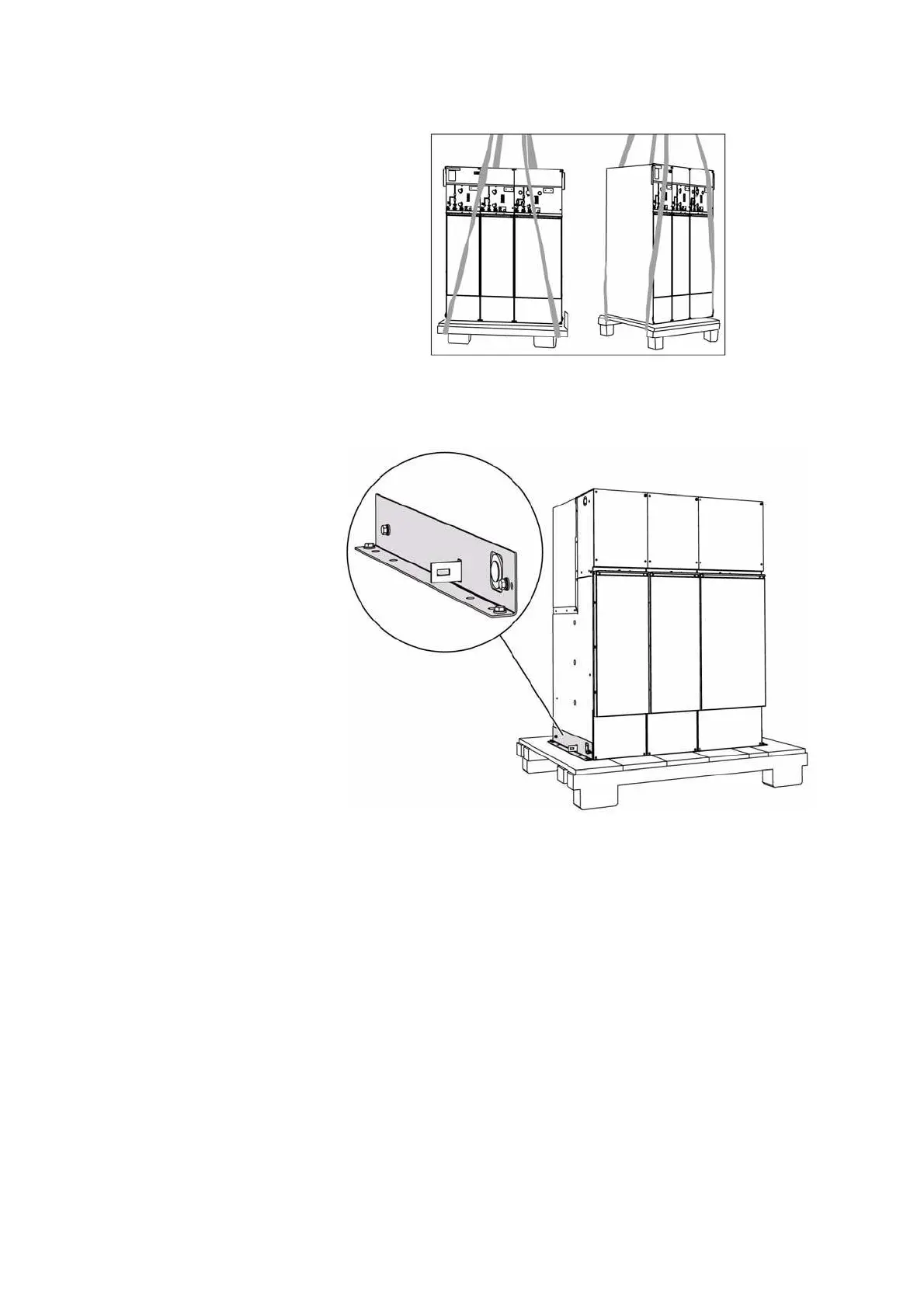

Fig. 35: Transport unit fixed on wooden pallet with transport angle (view from the left)
Ö Remove the PE foil; if required, remove seaworthy or latticed crate before.
Ö Remove the front cable compartment cover from the subframe of the switchgear.
Ö Remove the fixing screws from the transport angles / pallet.
Ö Remove the transport angles.
If the switchgear cannot be lifted directly from the wooden pallet onto its mounting
position, please proceed as follows:
Ö Lower the transport units by means of the lateral transport angles onto roller pads
(reinforced rollers) or tubes.
Ö Lift the switchgear at the side edges with roller crowbars and slowly lower it onto
the mounting position.
