500-8067.9 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * Revision 03 65
Installation
Switchgear transport with
crane eyes
Ö The crane eyes are supplied with the supplementary equipment.
Ö To crane the transport unit, fix the crane eyes at the metal clamping bracket with one
nut-and-washer assembly M8 x 40.
Ö Hang in the hook, or push rods in.
Ö Transport the switchgear.
Ö When the switchgear is in its definitive position, bring the eyes to
the initial position again.
Ö Please observe the following: To assemble panel groups,
the crane eyes must be removed.

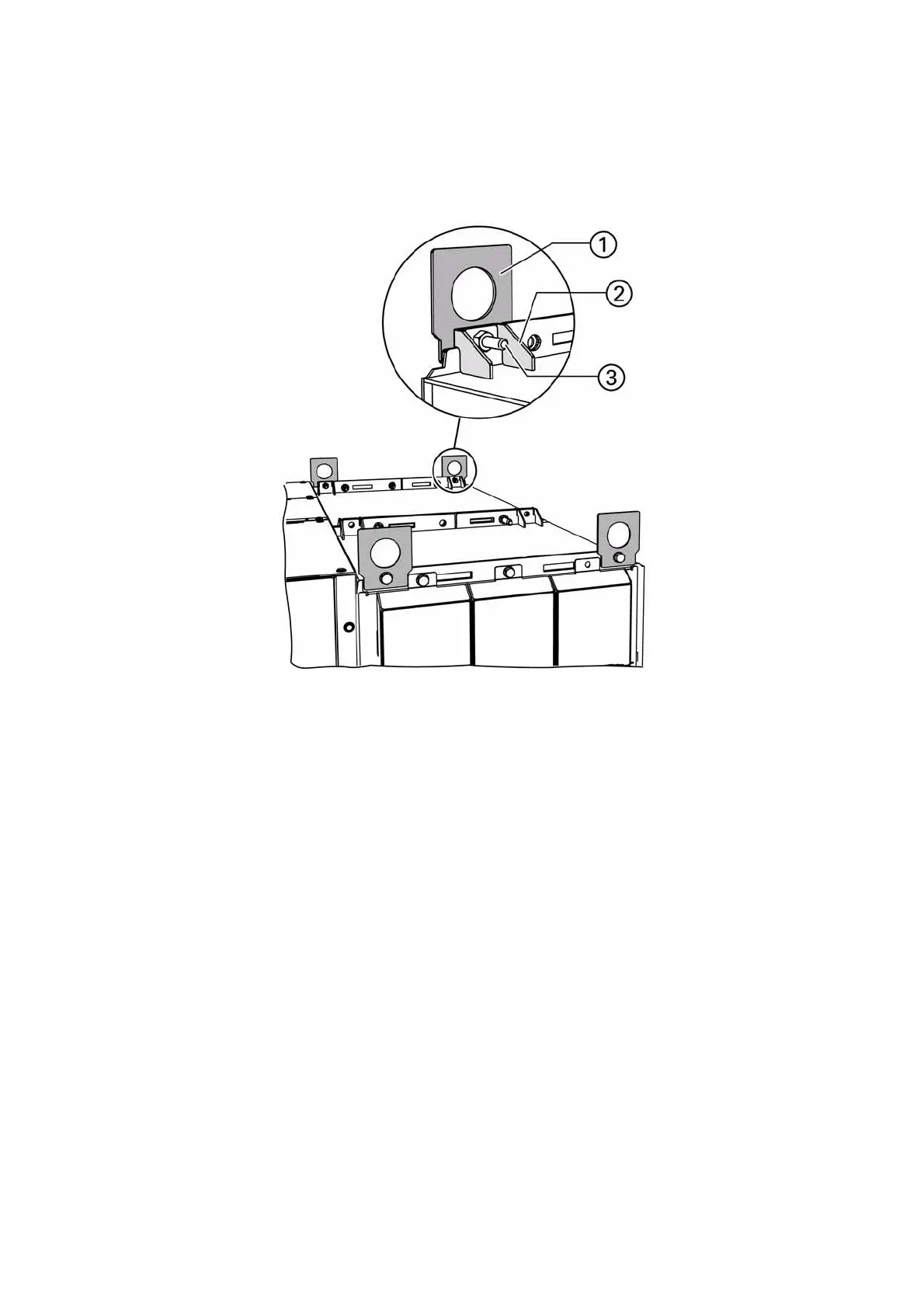

Fig. 36: Befestigung der Kranösen (Lupe zeigt Rückansicht der
Kranöse)
a
Crane eye
s
Metal clamping bracket
d
Bolt M4 x 8
