500-8067.9 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * Revision 03 87
Installation
Ö Mount cable plug type Rayschem RICS5xxx with surge arrester RAD according to
the manufacturer's instructions (see order documents).
Ö Fasten adapter feet with hexagonal nuts M12 and strain washers to the surge
arrester plate.

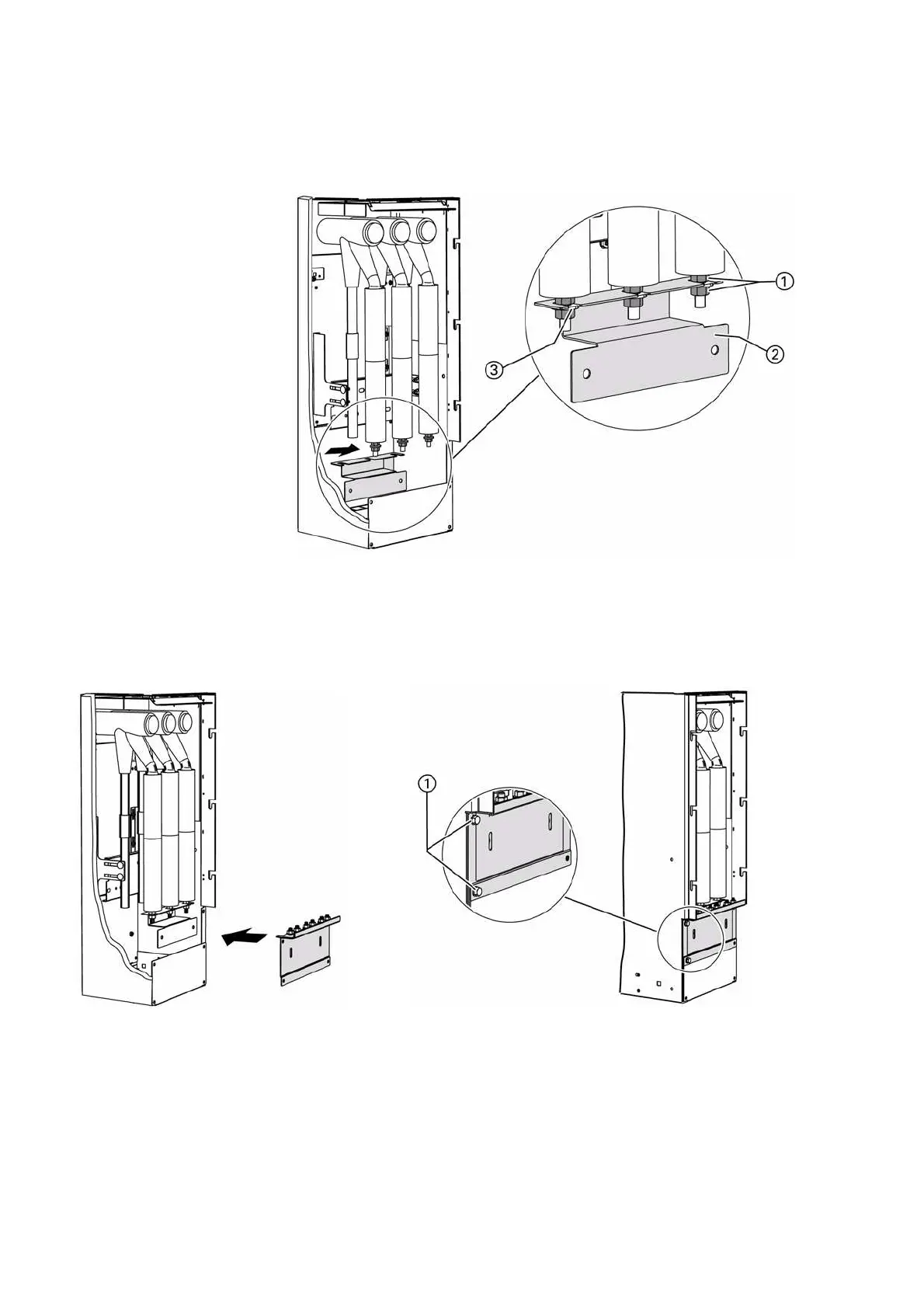

Fig. 59: Push the surge arrester plate s between the hexagonal nuts M12 of the adapter feet,
and tighten it. Use hexagonal nuts M12 a with strain washers d.
Ö Fasten upper cross member with two bolt-and-washer assemblies M8 x 20.
Ö Fasten the surge arrester plate with two bolt-and-washer assemblies M8 x 20 and
washers to the upper cross member.
Fig. 60: Mounting bolt-and-washer assemblies a on
the upper cross member.
