Siemens 8DJH Series

Installation
86 Revision 03 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * 500-8067.9
Assembly operations at
the panel for fastening
the cable plug Raychem
RICS5xxx with RDA 24
Ö Remove upper cross member.
To do this, undo the two bolt-and-washer assemblies M8 x 20.

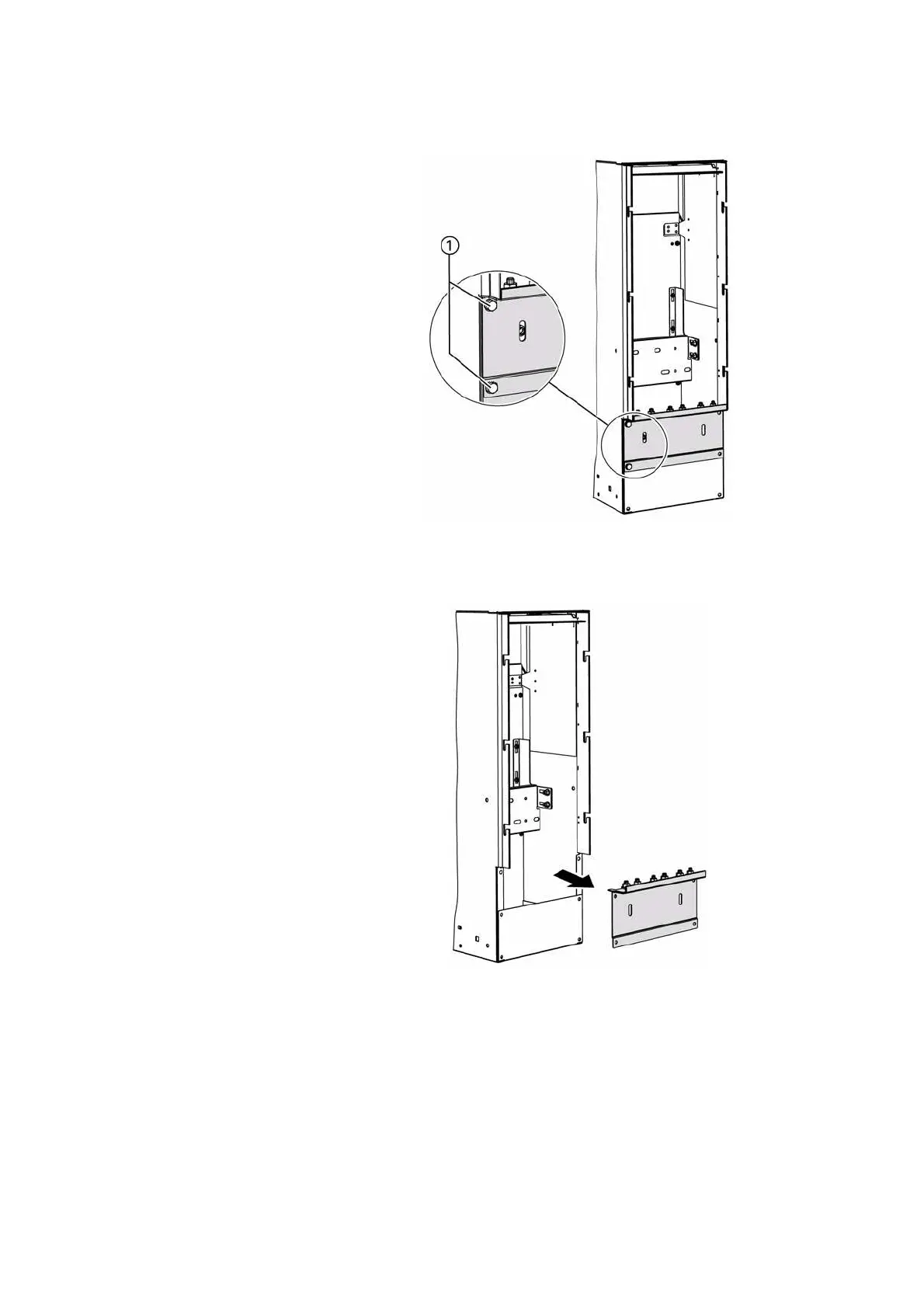

Fig. 57: Removing bolt-and-washer assemblies a at the upper cross member.
Fig. 58: Removing upper cross member
