Installation
90 Revision 03 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * 500-8067.9
Cable installation in
switchgear with pressure
absorber up to 16 kA
Ö Remove the two thread-ridging screws M6 of the cable compartment cover a.
Lift the cable compartment cover and remove it to the front..
Ö Remove the cross member s. To do this, undo the 4 bolt-and-washer
assemblies M8.
Ö Take the front floor cover out.
Ö Lead the high-voltage cables into the cable compartment.
Ö Push rubber sleeves over the high-voltage cables.
Ö Push the high-voltage cables with the rubber sleeves into the cutouts provided for
this purpose in the floor cover.
Ö Refit the floor cover, observing that the floor cover is correctly seated in the slots of
the rubber sleeves.
Ö Bolt the front floor cover to the foundation together with the switchgear frame using
one bolt.

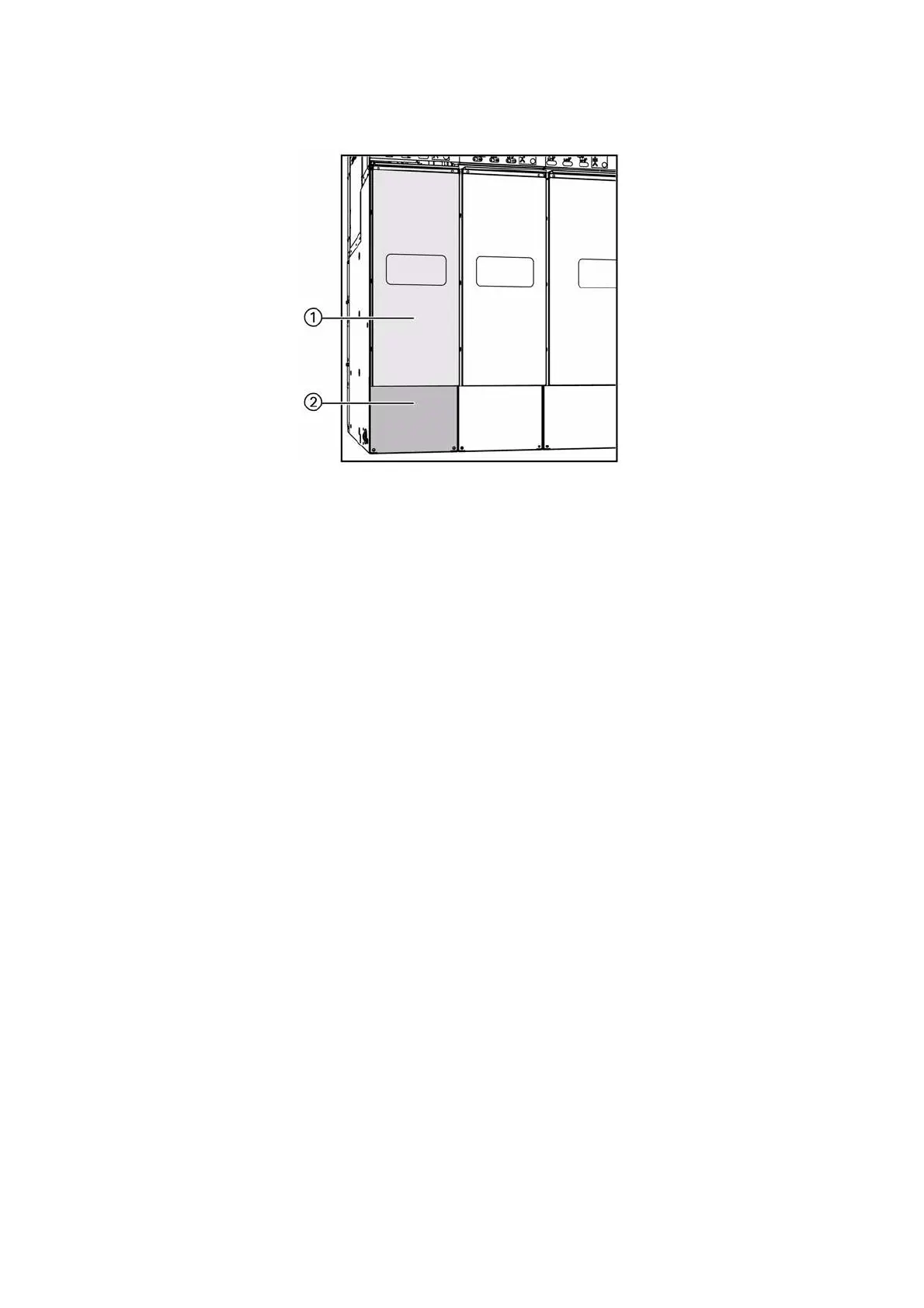

Fig. 62: Switchgear with pressure absorber up to 16 kA
a
Cable compartment cover
s
Cross member
