Siemens Acuson S1000 - About the V5 Ms Transducer

6 Transesophageal Transducer
6 - 4 Instructions for Use
About the V5Ms Transducer
The V5Ms is a multi-frequency, multi-plane, phased sector array transducer.
The V5Ms transducer supports the following modes:
 2D-mode
 M-mode
 Pulsed Wave Doppler
 Steerable Continuous Wave Doppler
 Color Doppler
 Color DTI
 Pulsed Wave DTI
 Anatomical M-mode

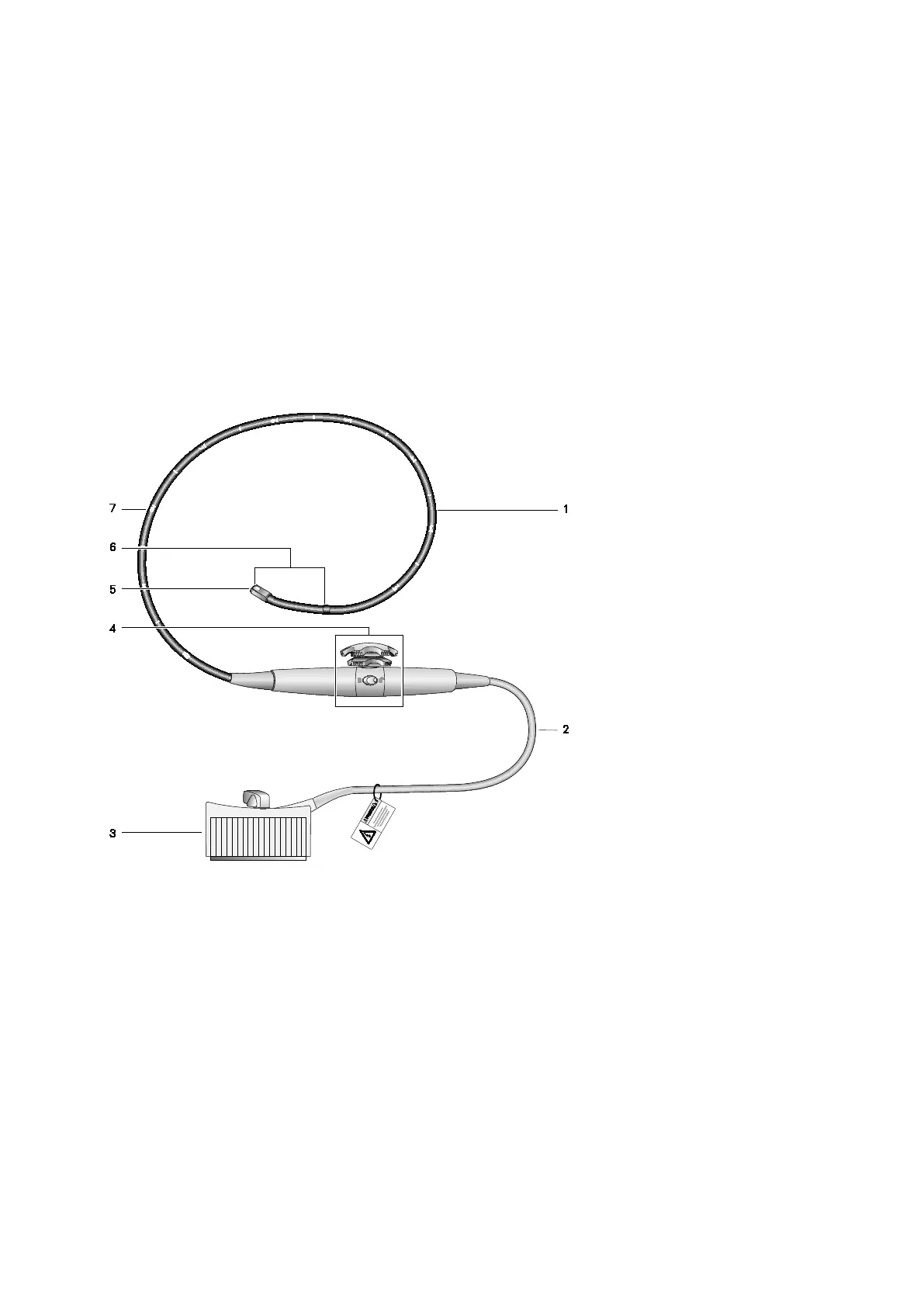

Example of the V5Ms transducer.
1 Flexible shaft
2 Cable
3 Transducer connector
4 Transducer controls
5 Distal tip (contains rotating array)
6 Articulating section
7 Depth markings (in centimeters)
