4 Examination Fundamentals
4 - 16 Instructions for Use
Imaging Overview
You can activate each mode of operation using the mode controls located on the control panel.
Mode-specific menus and selections display during imaging.

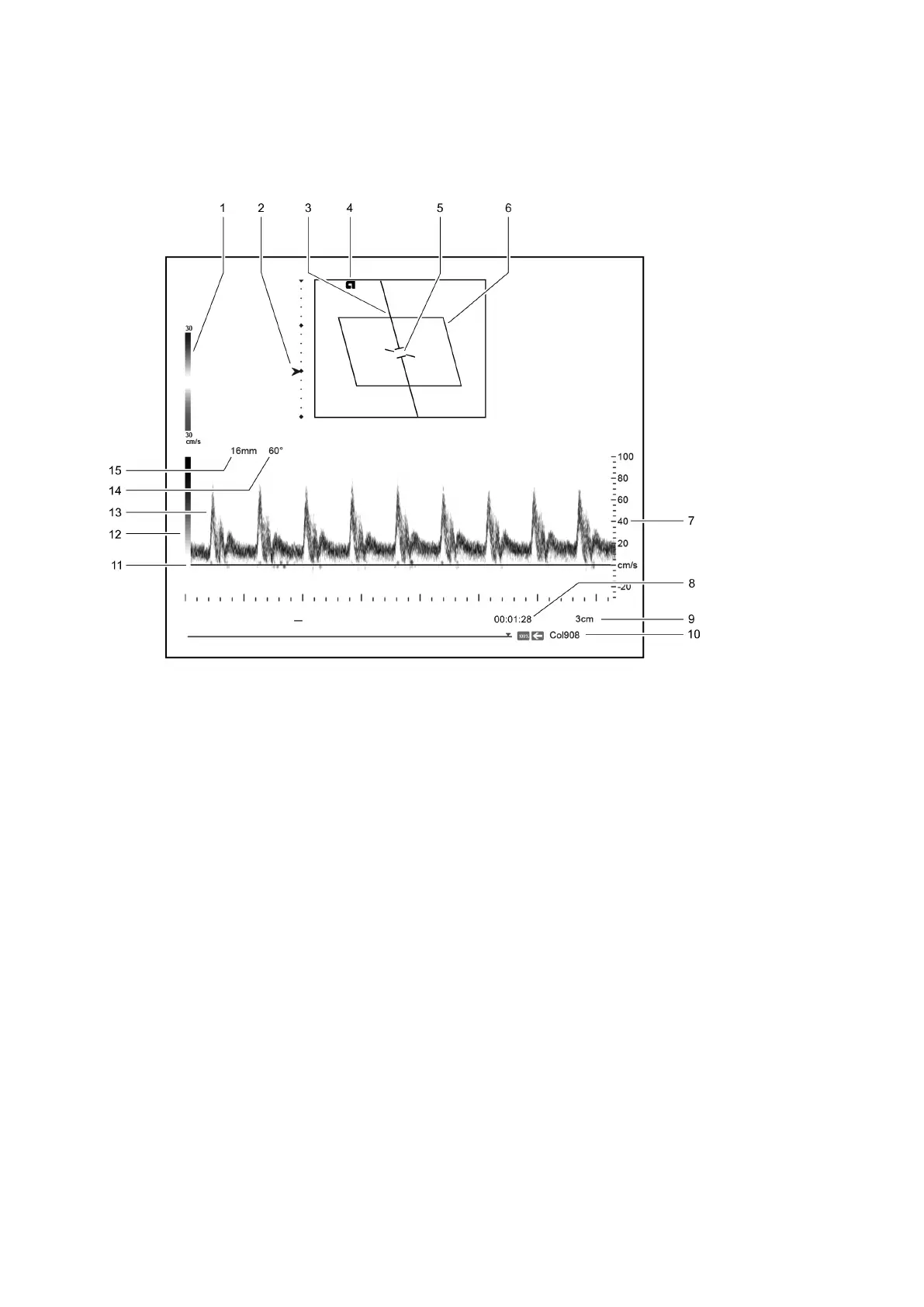

Example of 2D-mode with Doppler and color imaging.
2 Focal point markers
3 Doppler cursor
4 Transducer orientation indicator
5 Doppler gate and Doppler angle indicator
6 Color ROI
7 Doppler Scale
8 Timer
10 CINE bar
11 Doppler baseline
12 Gray bar
13 Doppler spectrum
14 Doppler angle
15 Pulsed wave Doppler gate depth
