Commissioning
3.4 Initial commissioning
Cabinet Modules Operator Panel AOP30
Operating Instructions, 04/2014, A5E03263551A
23
Smart Line Module
First commissioning: infeed

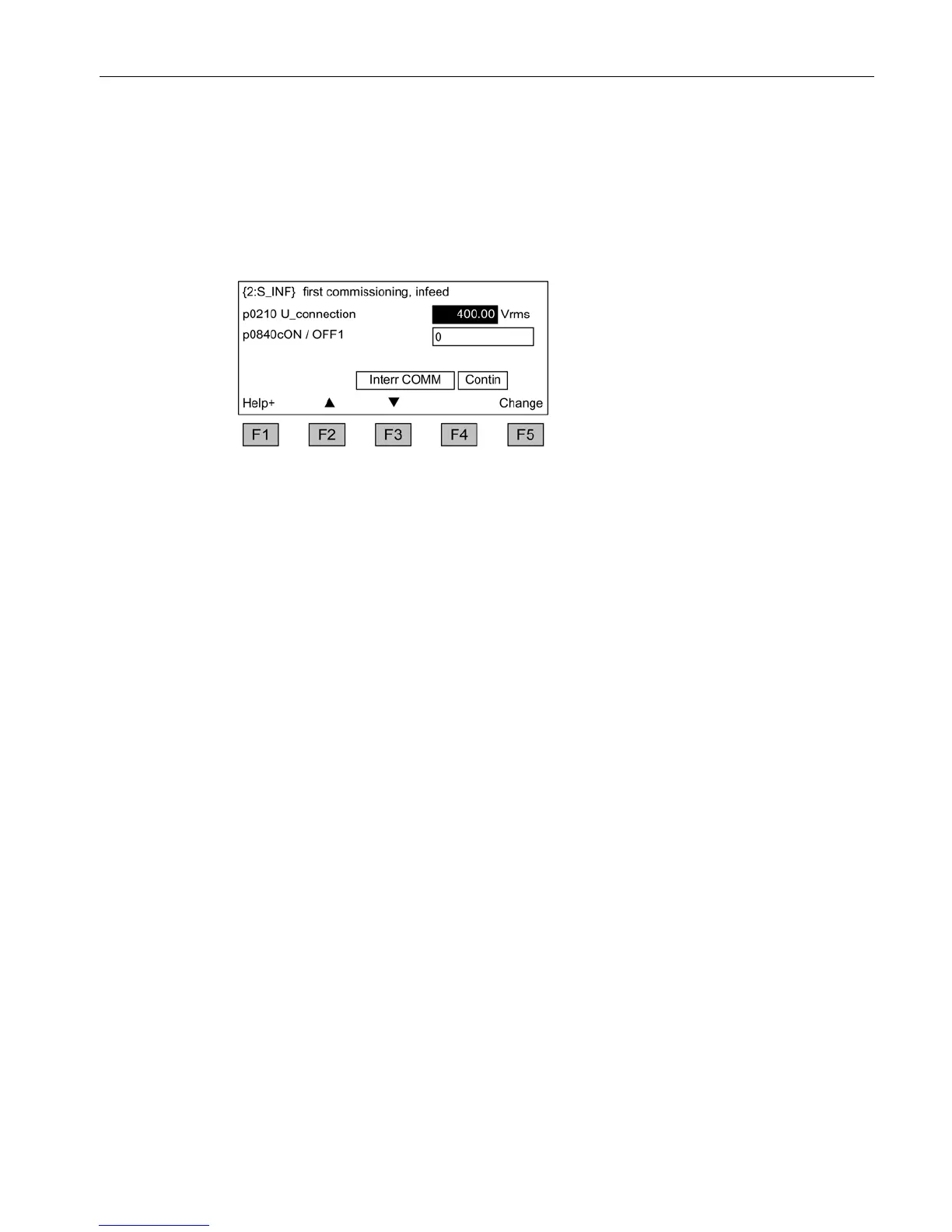

Table 3- 3 Data input with infeed via a Smart Line Module
Input of the supply voltage in V.
Input of the source of the ON/OFF1
command.
Navigate within the selection fields with
<F2> and <F3>.
Activate your selection with <F5>.
Once you have entered the final value,
choose "Continue" to exit the screen.
