Control via the operator panel
4.6 Menu commissioning / service
Cabinet Modules Operator Panel AOP30
Operating Instructions, 04/2014, A5E03263551A
47
4.6.4.1
Lists of signals for the operation screen
The following tables list the factory default settings of the signals for the operation screen
along with the associated reference variables and default settings for quick commissioning.
Object B_INF
Table 4- 1 List of signals for the operation screen - object B_INF
Signal
Parameter
Short name
Unit
Normalization (100%=...)
see table below
Factory setting (entry no.)
DC-link voltage smoothed (1) r0026 U_DC V p2001
Temperature of power unit
(2)
r0037
T_LT
° C
p2006
Normalization for object B_INF
Table 4- 2 Normalization for object B_INF
Variable
Normalization parameters
Default for quick commissioning
Reference voltage 100% = p2001 p2001 = r0206/r0207
Reference temperature
100% = 100 °C

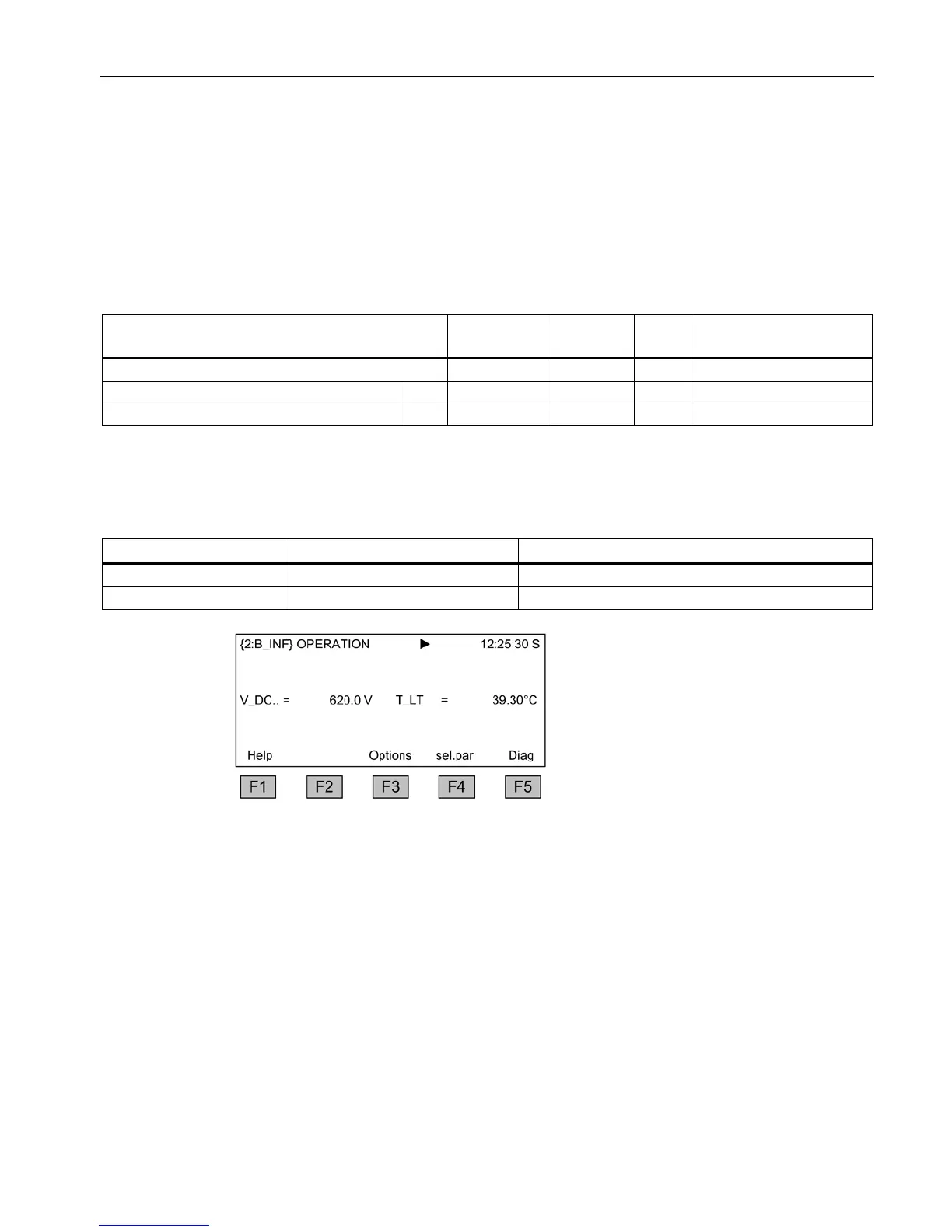

Figure 4-10 Operation screen - example of infeed via a Basic Line Module
