Siemens ARCADIS Orbic Manual

Siemens AG SPR2-310.842.01.07.02 ARCADIS Varic / Orbic
12.06 CS SD 24
Adjustments 11
Page 11 of 34
Medical Solutions
Image Rotation 2.3

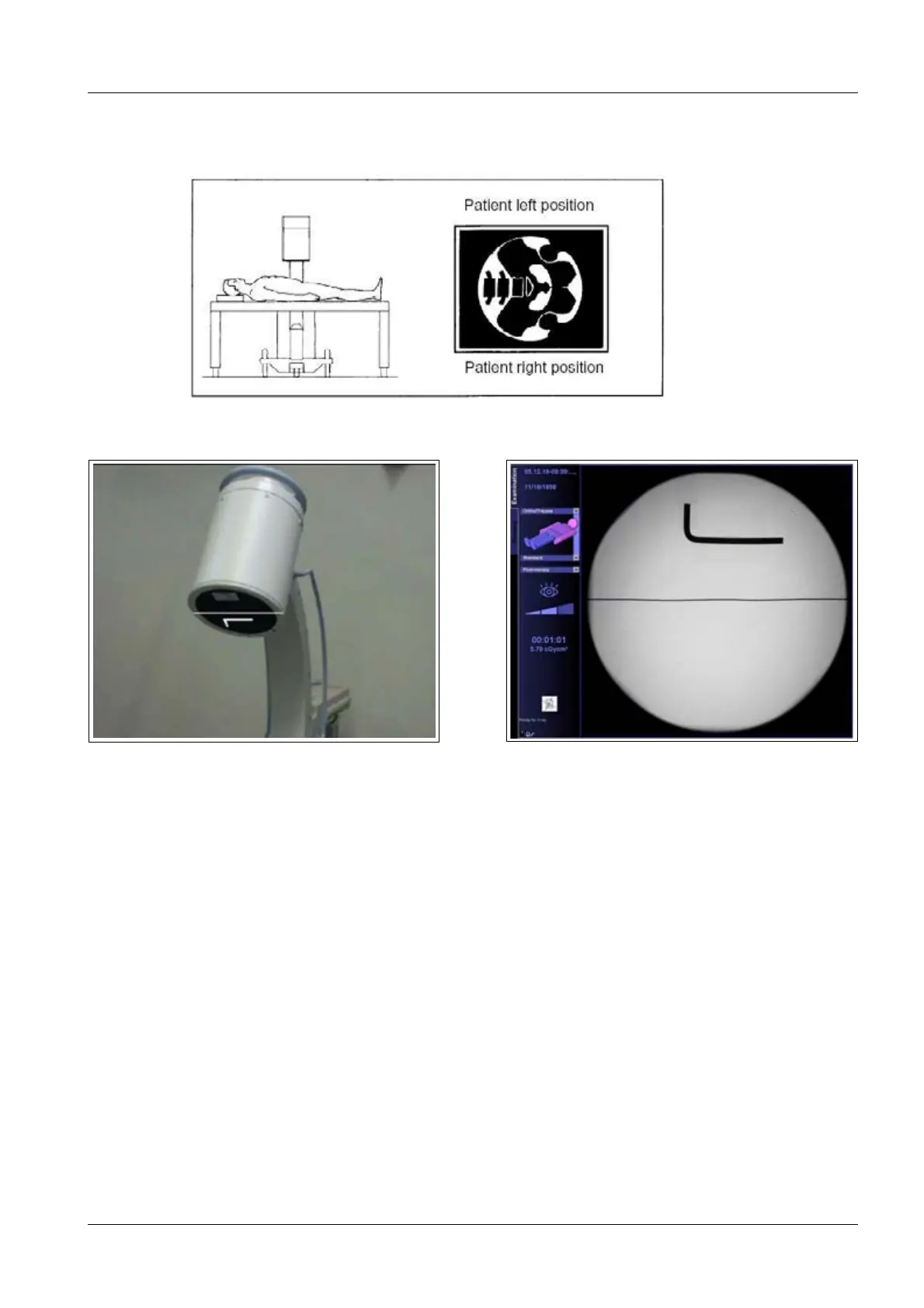

Fig. 2: Image rotation
Adjustment
1. Register an emergency patient to allow radiation release.
2. Manually set the image rotation to the 0 degree position at the control console.
¹ See display for image rotation at the control console.
3. Attach an Allen key and a piece of solder wire to the image intensifier as shown in
(Fig.3/p.11).
4. Click on <Go>.
¹ Status bar: Init (Disable Limits) --> running --> success
X 5. Briefly release fluoro and then use the PC mouse to rotate the LIH image on the moni-
tor screen into the 0 degree position.
¹ The image (left/right / up/down) corresponds to (Fig.4/p.11).
6. Click on <Go>.
¹ Status bar: 0 Degree Position --> running --> success
Fig. 3: Image_rotation
Fig. 4: Image position
