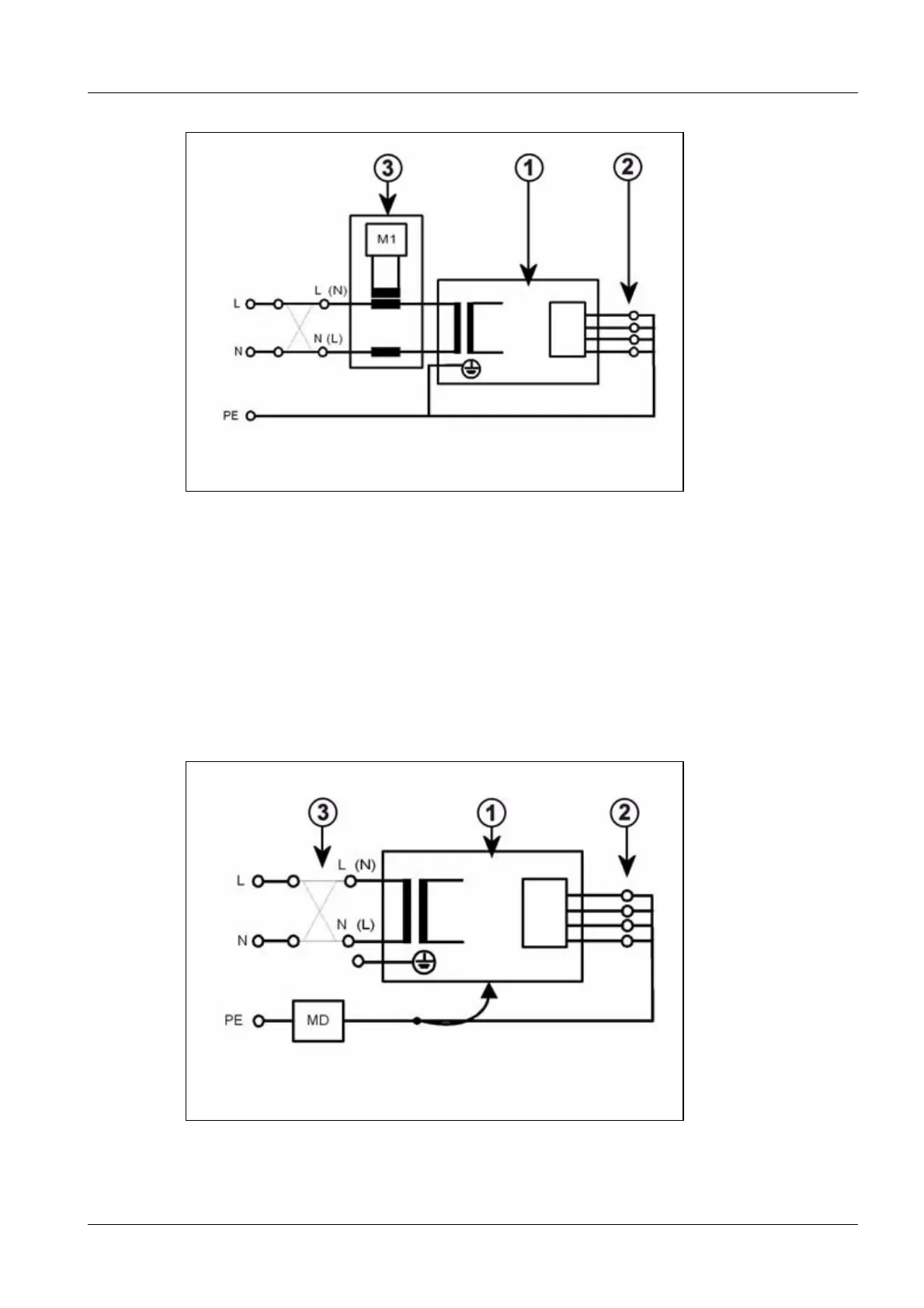

Fig. 2: Measuring circuit for measuring the system leakage current according to the differential
current method in compliance with DIN VDE 0751-1/2001-10, Fig. C6 for protection
class I.
Pos. 1 = System
Pos. 2 = Application part type B (if available)
Pos. 3 = Measurement setup (integrated into measuring device)
If the direct measurement of the system leakage current is used (measurement setup
according to (Fig.3/p.15)), the system must be insulated during the measurement and
must not be touched.
Fig. 3: Measuring circuit for direct measurement of the system leakage current in compliance

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
