Siemens bt300 - Fault Codes

Chapter 5 - Fault Tracing
Fault Codes
166 | 180
Siemens Industry, Inc.
Siemens BT300 HVAC Drive
DPD01809
Building Technologies
2016-06-07
Fault Codes

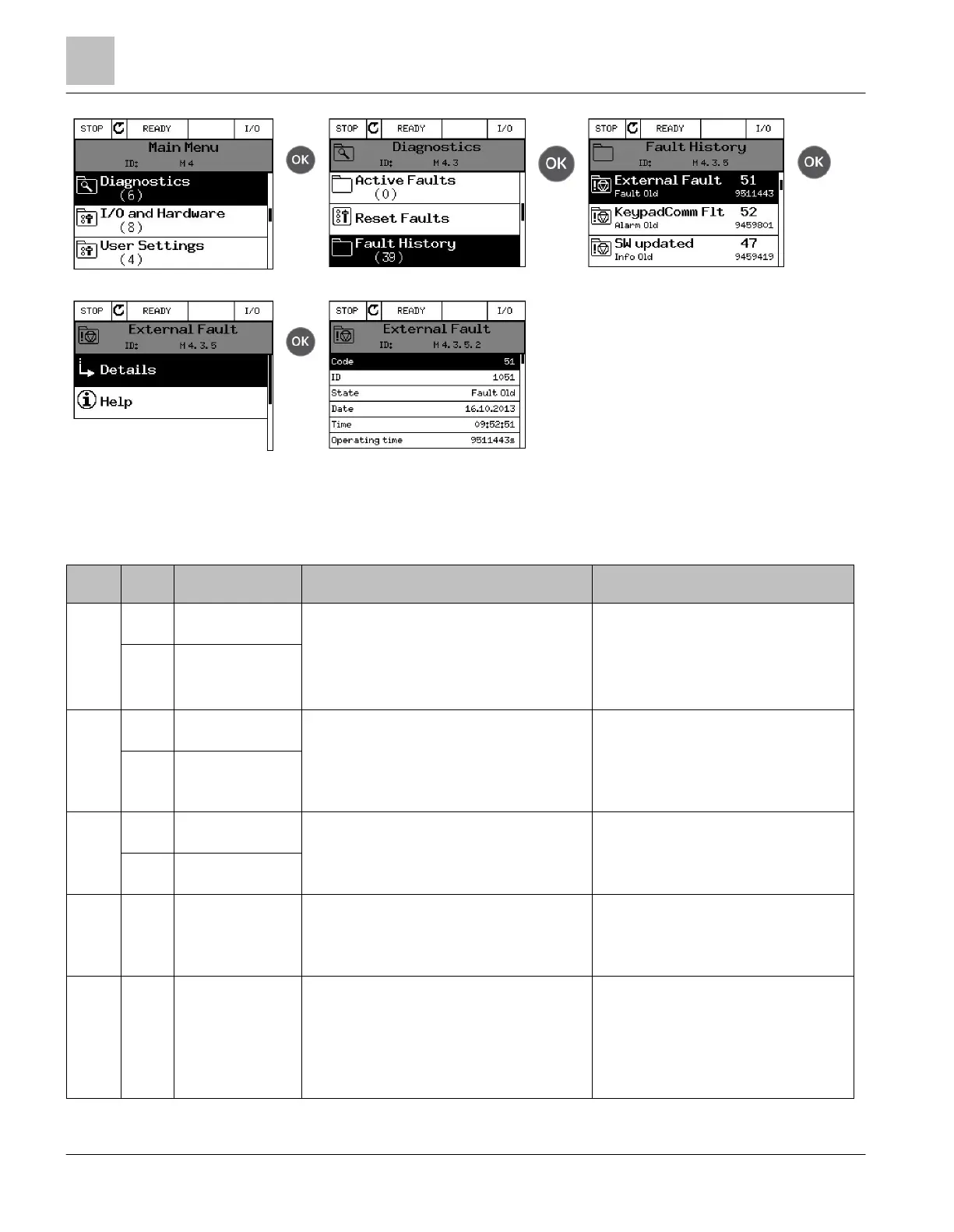

Table 138: Fault Codes and Descriptions.
Fault
Code
Fault ID
Fault Name
Possible Cause
Remedy
1
1
Over-current
(hardware fault)
The drive has detected too high a current (>4*I
H
) in
the motor cable:
● sudden heavy load increase
● short circuit in motor cables
● unsuitable motor
Check loading.
Check motor.
Check cables and connections.
Make identification run.
Check ramp times.
2
Over-current
(software fault)
2
10
Over-voltage
(hardware fault)
The DC-link voltage has exceeded the limits
defined.
● too short a deceleration time
● high over-voltage spikes in supply
● Start/Stop sequence too fast
Make deceleration time longer.
Activate overvoltage controller.
Check input voltage.
11
Over-voltage
(software fault)
3
20
Earth fault
(hardware fault)
Current measurement has detected that the sum
of motor phase current is not zero.
● insulation failure in cables or motor
Check motor cables and motor.
21
Earth fault
(software fault)
5
40
Charging switch
The charging switch is open, when the START
command has been given.
● faulty operation
● component failure
Reset the fault and restart.
Should the fault re-occur, contact the
distributor near to you.
7
60
Saturation
Various causes:
● Defective component
● Brake resistor short-circuit or
overload
Cannot be reset from keypad.
Switch off power.
DO NOT RECONNECT POWER!
Contact the factory.
If this fault appears simultaneously with F1,
check motor cables and motor.
