Ethernet (M.5.9)
Ethernet settings are used to define and configure the fieldbus protocol. The wiring is the same for all Ethernet
protocol, as shown below.

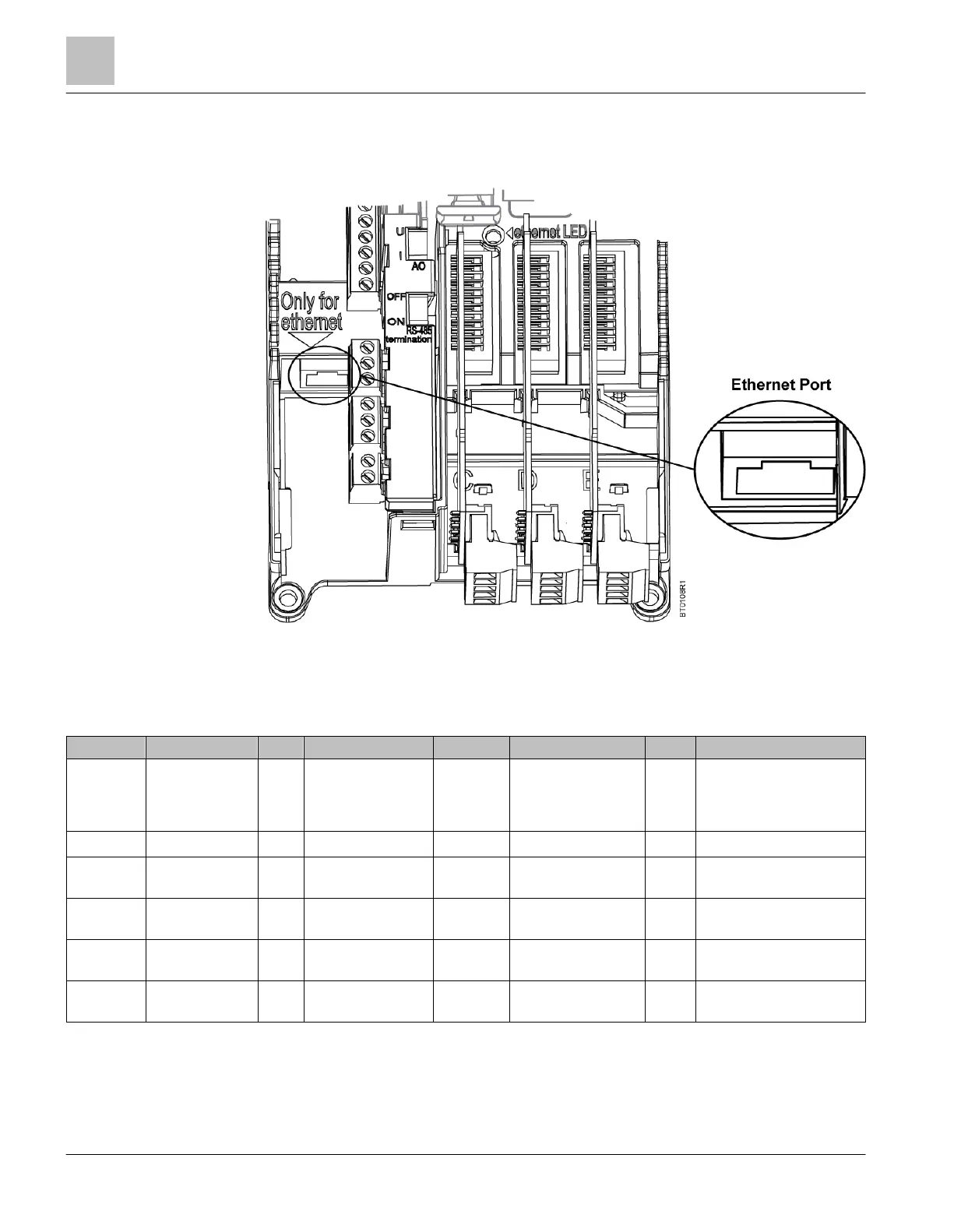

Figure 36: Etherenet Connection.
Common Settings (M5.9.1)
Table 127: Ethernet Common Settings (M5.9.1).
Structure
Parameter
Min
Max
Unit
Default
ID
Description
P5.9.1.1
IP Address Mode
DHCP with AutoIP
Fixed IP
DHCP with AutoIP
2482
Defines the IP addressing
mode as follows:
0 = Fixed IP
1 = DHCP with AutoIP
P5.9.1.2
Fixed IP
See below.
P5.9.1.3
IP Address
2483
Displays the actual IP
Address in use.
P5.9.1.4
Subnet Mask
2484
Displays the actual subnet
mask in use.
P5.9.1.5
Default Gateway
2485
Displays the actual default
gateway in use.
P5.9.1.6
MAC Address
2486
Displays the Ethernet card's
MAC address.
