Chapter 4 - Parameters and
Menu Structure
I/O and Hardware (M5)
117
|
180
Siemens Industr
y, Inc.
Siemens BT300 H
VA
C Drive
DPD01809
Building Technologie
s
2016
-
06
-
07
Figure
34

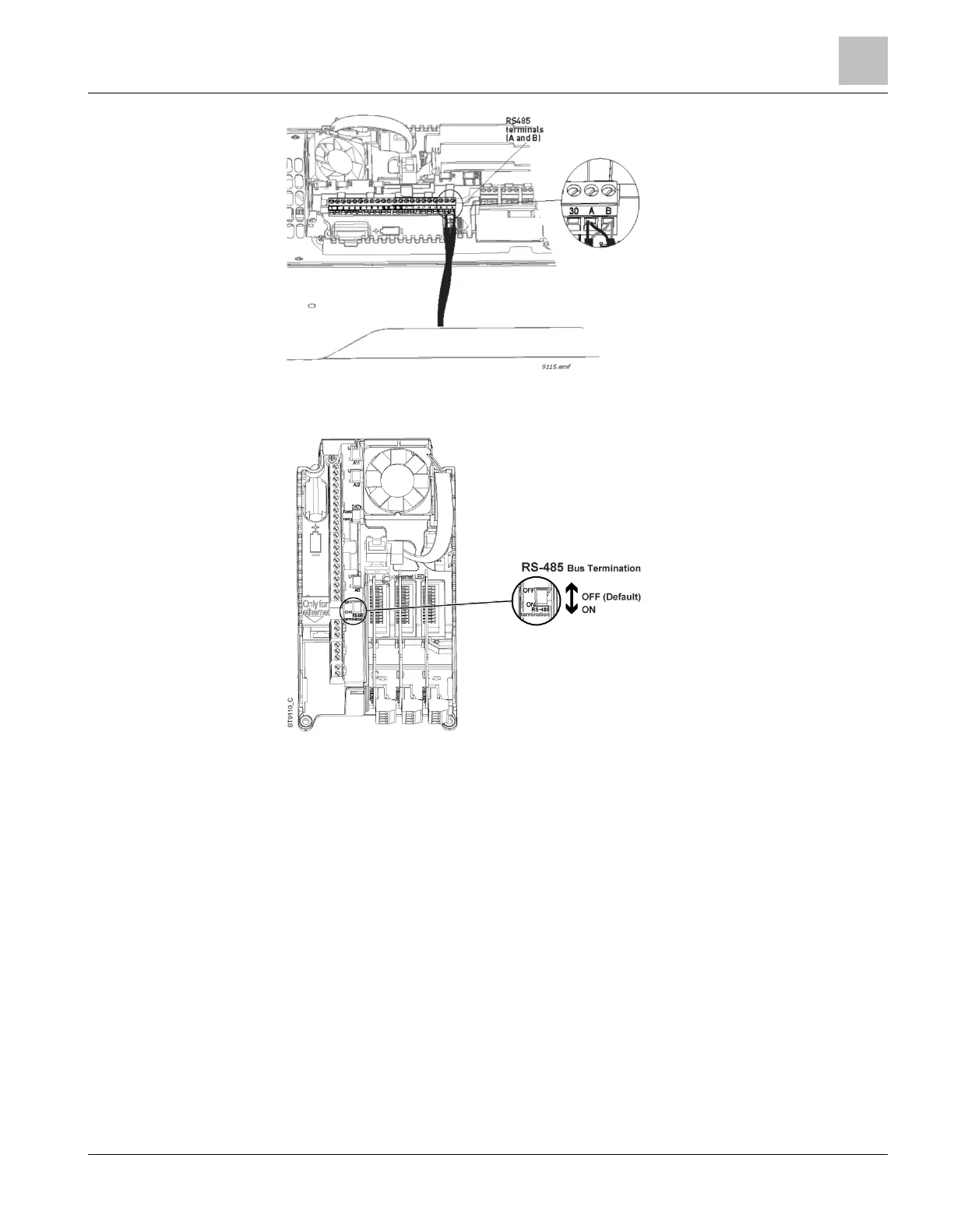

: Connecting
the RS-485 Ca
ble.
If the Siemens BT300
HVAC Drive is the
last device o
n the bus, the bus termin
ation may be required.
See the
figure below for e
nabling to bus term
ination:
Figure
35
: Bus Term
ination.
Common Settings (M
5.8.1)
Common settings are
presented in the fo
llowing table:
116
118
