2.8 ECO control
Main menu > Unit > ECO Control
Parameter Value Function
Sply fan st2 stpt 500l/s Supply fan normal speed winter
Sply fan st3 stpt 800l/s
Maximum speed on supply fan summer (increased
fan speed at cooling and heating demand)
Exh fan stage 2 stpt 500l/s Extract fan normal speed winter
Ext fan stage 3 stpt 800l/s
Maximum speed on extract fan summer (increased
fan speed at cooling and heating demand)
Comfort htg stpt 20.0°C Winter temperature
Comfort tmp deadz 2.0°C
Summer temperature (Comfort htg setp plus
dead zone 22.0°C)
ECO 2 Fan comp tmp deadz -0.5°C
Increased fan speed to meet heating demand
(Comfort htg setp minus dead zone 19.5°C)
ECO 1 Outs air tmp summer 14°C
Outdoor air temperature for supply air
temperature control change to cascade control
ECO 1 Outs air tmp winter 12°C
Outdoor air temperature for cascade control
change to supply air temperature control
Parameter
100
65
0
-20
0
0
2346
5
3780
10
5290
15
6815
20
8153
30
8760
Temperature [°C]
Running period [h/year]
Airow [%]
-10
231
Flow increase when heating is required

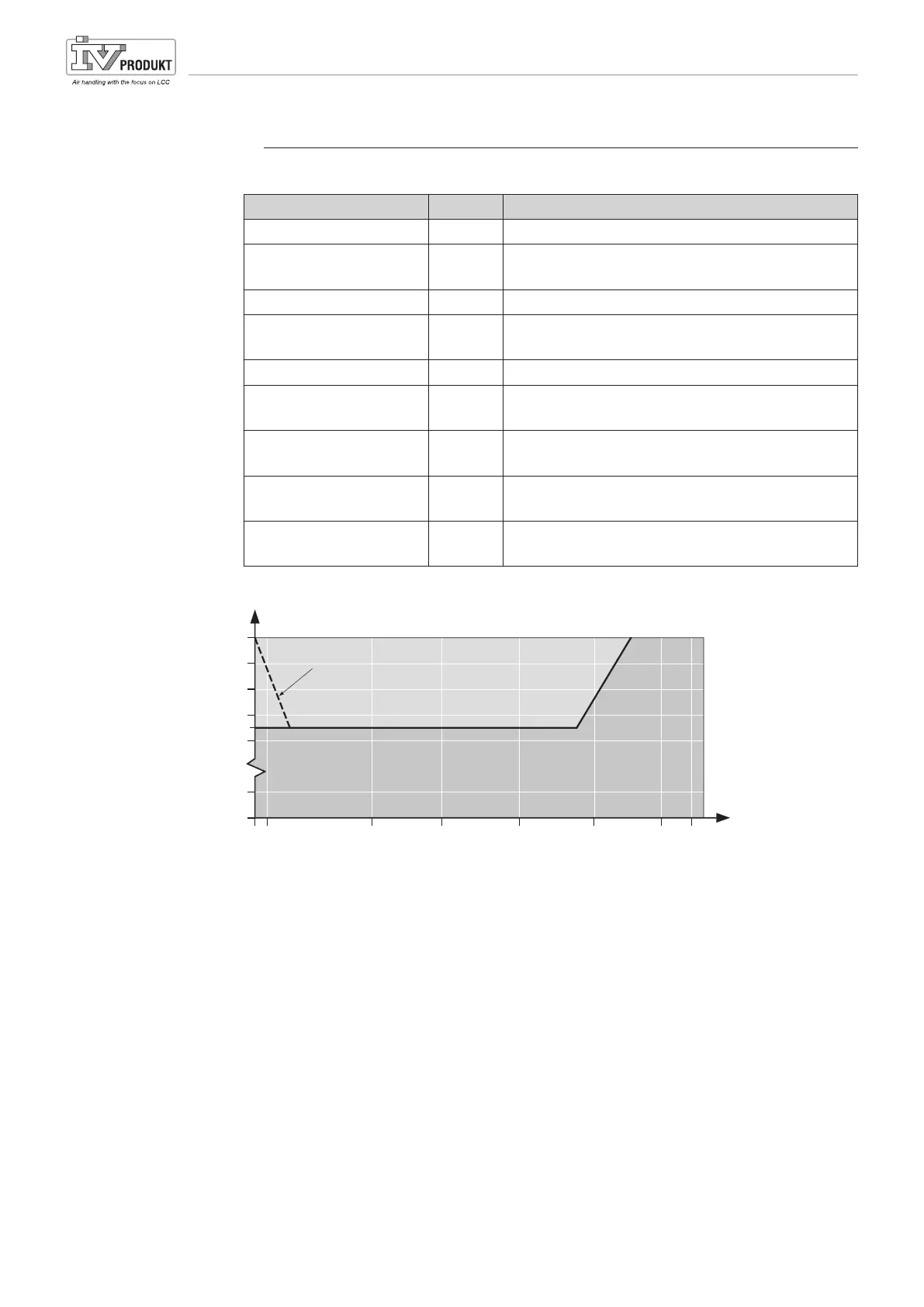

ECO Control
*
Flow increase, if
needed, if the unit is
utilized for keeping the
premises warm.
*
Airflow
Short Manual for Climatix Control System [v. 2.14.10, 2.14.20, 2.14.30 & 2.14.40]
SMCX.130215.02GB Page 19
