CP 343-1 Lean
Manual, 10/2012, C79000−G8976−C198−07
25
LEDs
4
LEDs
The display on the front panel consists of the following LEDs that indicate the operating
mode and communications status.

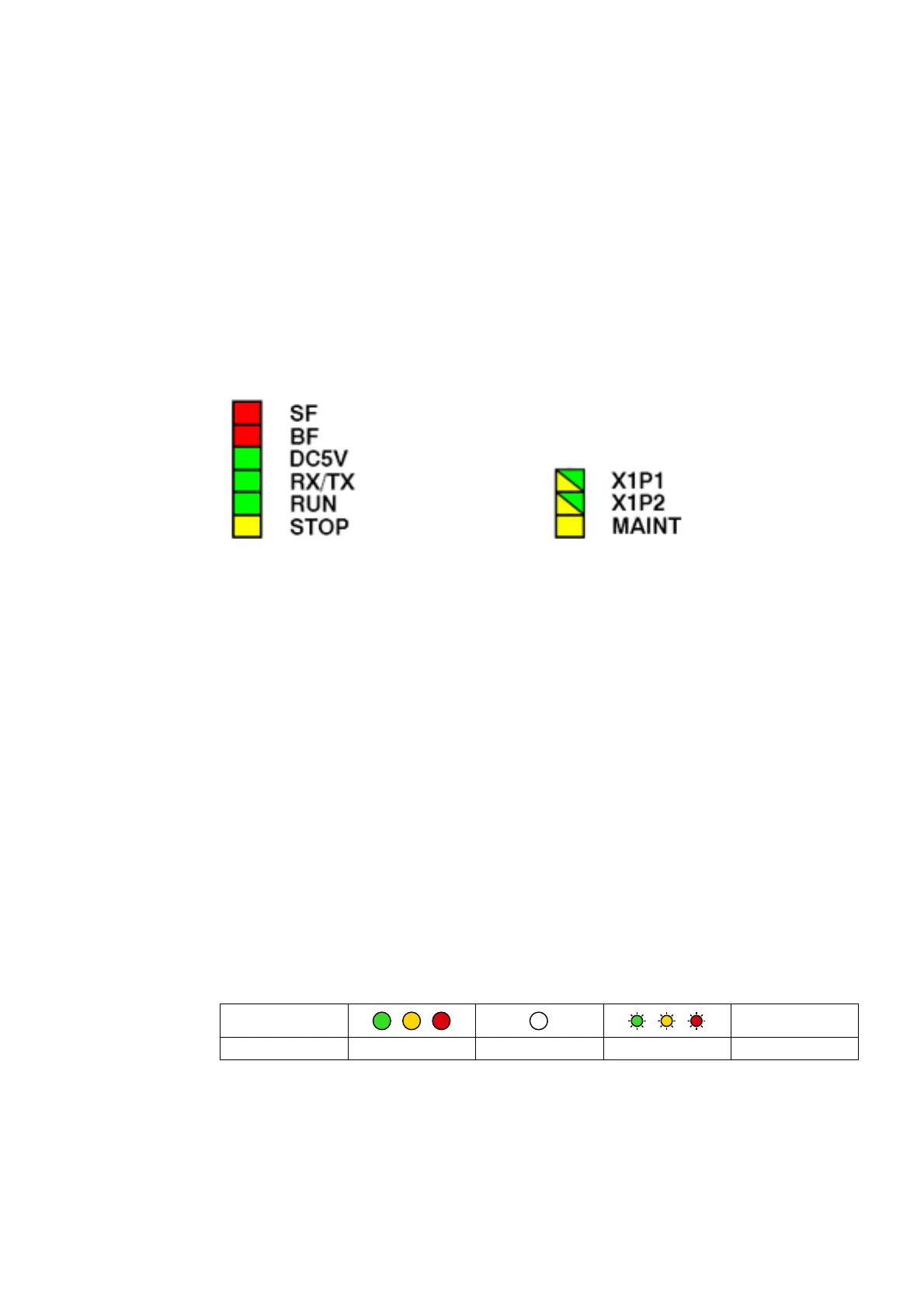

Figure 4-1 LEDs of the CP 343-1 Lean CX10
The LEDs have the following meaning:
● SF: Group error
● BF: Bus fault on Ethernet interface
● DC5V: 5 VDC power supply via the backplane bus (green = OK)
● RX/TX: Acyclic data traffic, for example SEND/RECEIVE
(not relevant for PROFINET IO data)
● RUN: RUN mode
● STOP: STOP mode
● X1P1: Link status / activity of Ethernet port 1
● X1P2: Link status / activity of Ethernet port 2
● MAINT: maintenance required (note/evaluate diagnostics buffer)
Legend for the following LED tables
The LED symbols in the following tables have the following significance:
Symbol
-
Meaning ON OFF Flashing any
