5.6.2 Cycle Times
Communication Load and Cycle Extension
When using the CP 443−1 Advanced, the influence of PROFINET CBA on the
cycle time of OB1 is slight. The influence depends on the number of
PROFINET CBA partners and on the number of PROFINET CBA interconnections.
Comparison of the CPU and CP 443−1 Advanced
From the documentation on the CPU 317−2 PN/DP, you can, for example, see the

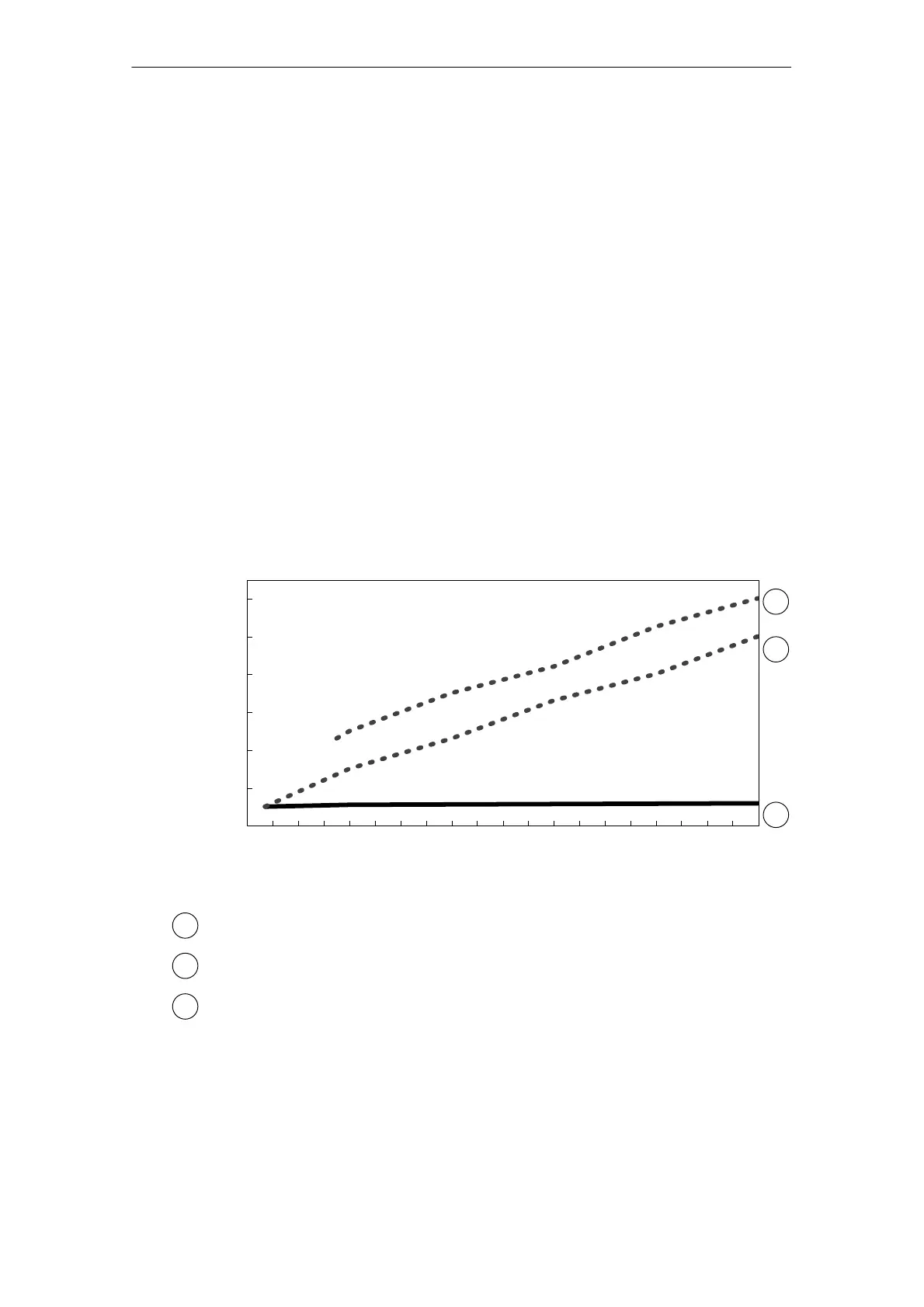

influence as represented in the following graphic. Lines 1 and 2 show this influence
when the CPU interface is used for PROFINET CBA.
The additional line in the graphic shows the influence when you use the
PROFINET CBA interface of a CP 443−1 Advanced in an S7−400 station.
It can be seen that in contrast to operation over a CPU network attachment, the
OB1 cycle remains practically uninfluenced by the CBA communication if
PROFINET CBA is operated over a CP 443−1 Advanced.
0
1
2
3
4
5
6
0 20 40 60 80 100 120 140 160 180 200
Extension of the
cycle time in ms
Number of PROFINET CBA interconnections
1
2
3
Legend:
OB1 cycle with 32 PROFINET CBA partners and network attachment on the
CPU 317−2 PN/DP.
OB1 cycle with 5 PROFINET CBA partners and network attachment on the
CPU 317−2 PN/DP.
OB1 cycle with an S7−400 station with CPU 416−2 and with network attachment on
the CP 443−1 Advanced (the number of PROFINET CBA partners has no influence).
1
2
3
