5 Performance Data
B4A38
CP 443-1 Advanced for Industrial Ethernet / Manual Part B4A
Release 01/2007
C79000-G8976-C193-06
5.10 Memory Organization in the CP 4431 Advanced
5.10.1 Memory Distribution

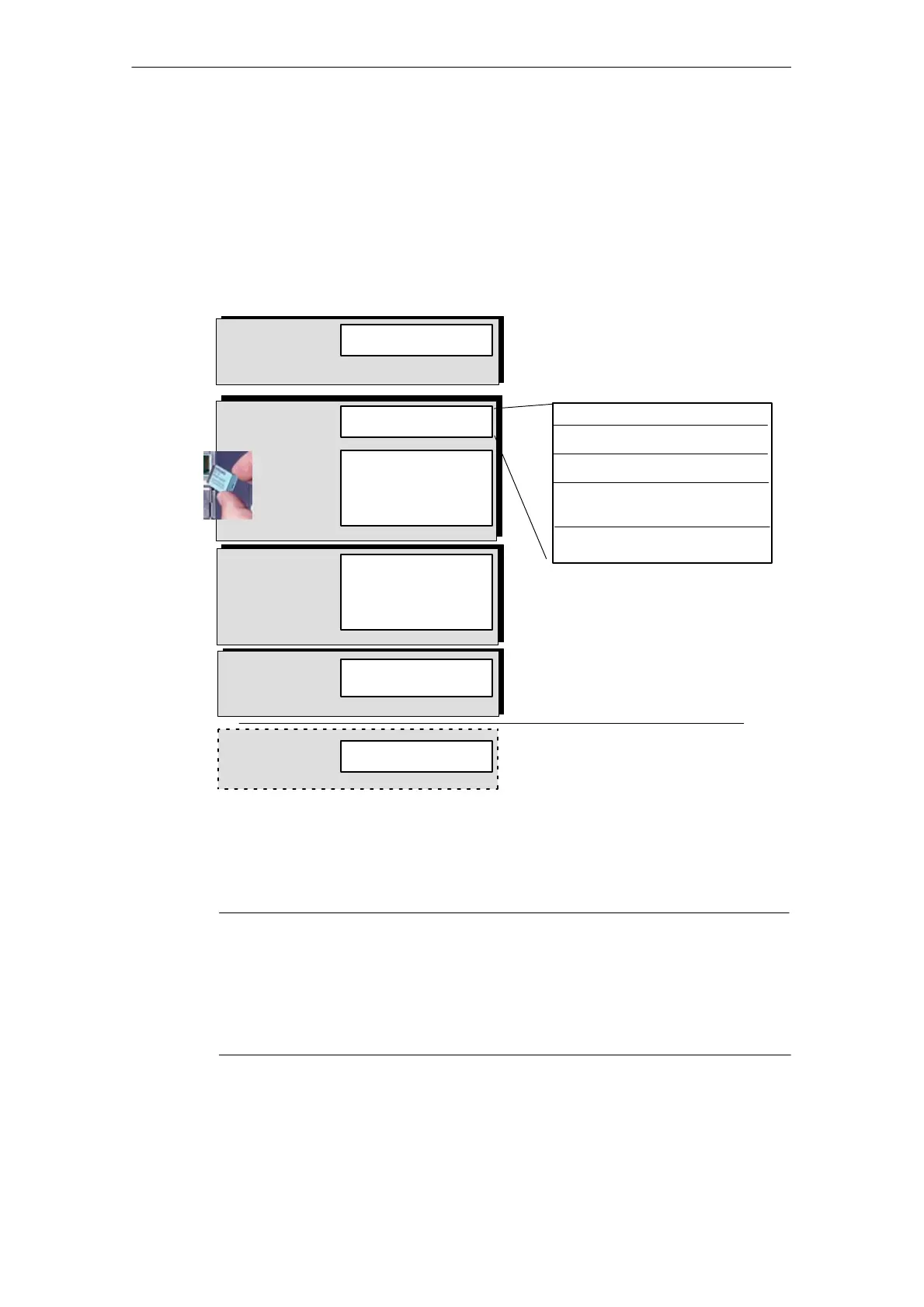

The data areas of the CP 443-1 Advanced are organized as follows:
IP address and IP parameters
Configured MAC address
LAN settings
Factory-set MAC
address
Fixed data
CPLUG
Retentive parameters
Flash file system
RAM Area
Volatile RAM file
system (/ram)
Non-volatile RAM file
system (/sram)
Battery
backed RAM
area
CPU data
Configuration Data
Data maintained on the S7-400
CPU.
SNMP Variables (modifiable)
Interconnection information
for PROFINET CBA
5.10.2 File Systems
Notice
Please refer to the detailed description of FTP functionality in the Manual
Information Technology in SIMATIC S7 /5/.
In terms of the organization of the file system, the CP 443-1 Advanced described
here differs from the characteristics described in /5/. The information in this
device-specific manual is valid.
