6 Operation of the Application
6.2 Operation of the application with a panel
SINAMICS G120 as a Speed Axis on the S7-1500
V1.0a, Entry ID: 78788716
Copyright Siemens AG 2013 All rights reserved

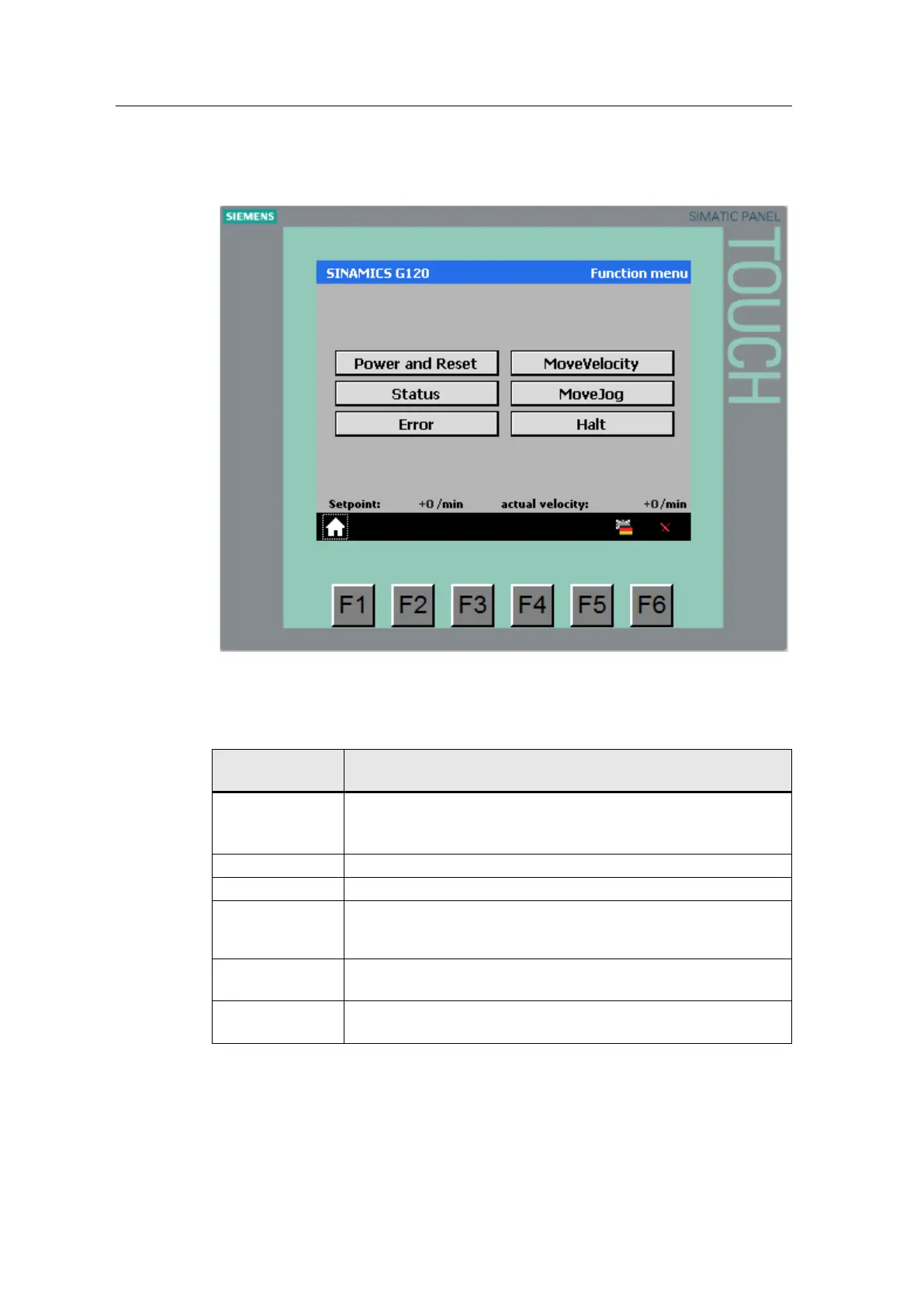

6.2.2.2 Function menu
Figure 6-2
From the Function menu, you can call the individual operating screens:
Table 6-1
Operating
screen
Function
Power and Reset Visualization of MC_Power and MC_Reset.
MC_Power is used to enable the axis (On/Off).
MC_Reset is used to acknowledge errors of the axis.
Status Visualization of the status bits of the Axis TO.
Error Visualization of the error bits of the Axis TO.
MoveVelocity Visualization of MC_MoveVelocity.
This FB is used to start an (endless) axis motion at the specified
velocity.
MoveJog Visualization of MC_MoveJog.
This FB allows you to “jog” the axis.
Halt Visualization of MC_MoveHalt.
This FB is used to stop the axis.
