Using SINAMICS G120 / G120C / S120 Blocksize converters in marine applications
Application Manual, 11/2019, A5E48346362A
19
Presentation of the "PM240" system being
considered

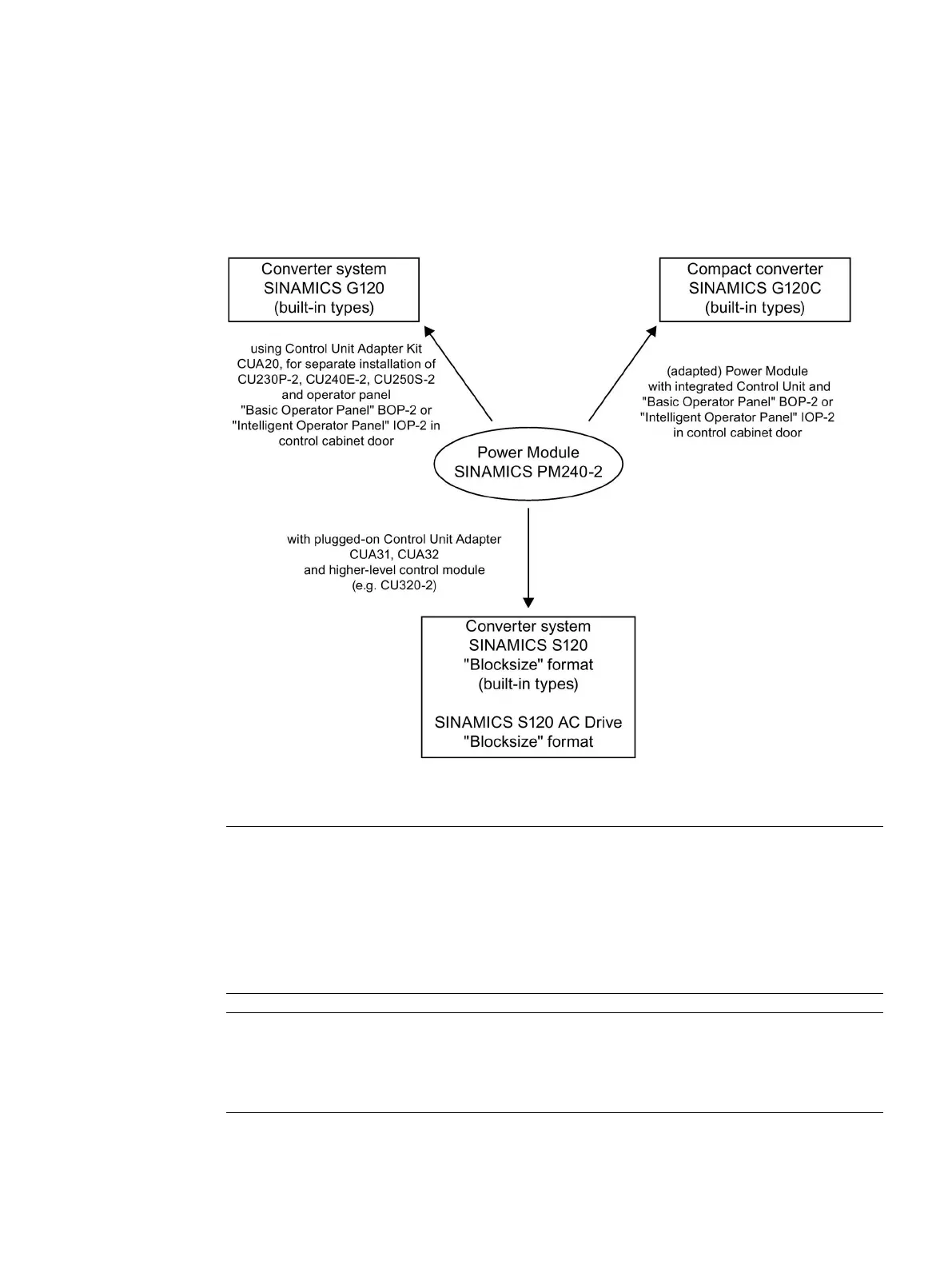

Figure 5-1 System overview
Note
Note on G120
For marine applications
, a Control Unit is generally not plugged directly onto the Power
Module, but is mechanically separated from the Power Module using a "Control Unit Adapter
Kit".
Only in the case of Power Modules of frame size FSA, FSB, or FSC, can a Control Unit
CU230P
-2 or CU240E-2 be plugged on directly.
Note
Note on G120 and G120C
For marine applications
, an optional operator panel must usually be installed in the door of
