Marine-specific installation regulations
8.3 Operator panel installed in the cabinet doors
Using SINAMICS G120 / G120C / S120 Blocksize converters in marine applications
Application Manual, 11/2019, A5E48346362A
29
8.3 Operator panel installed in the cabinet doors
A BOP-2 or alternatively an IOP-2 operator panel is installed in the cabinet doors.
The door mounting kit with Article No. 6SL3256-0AP00-0JA0 is available for this purpose. An
IP55 degree of protection can be achieved.

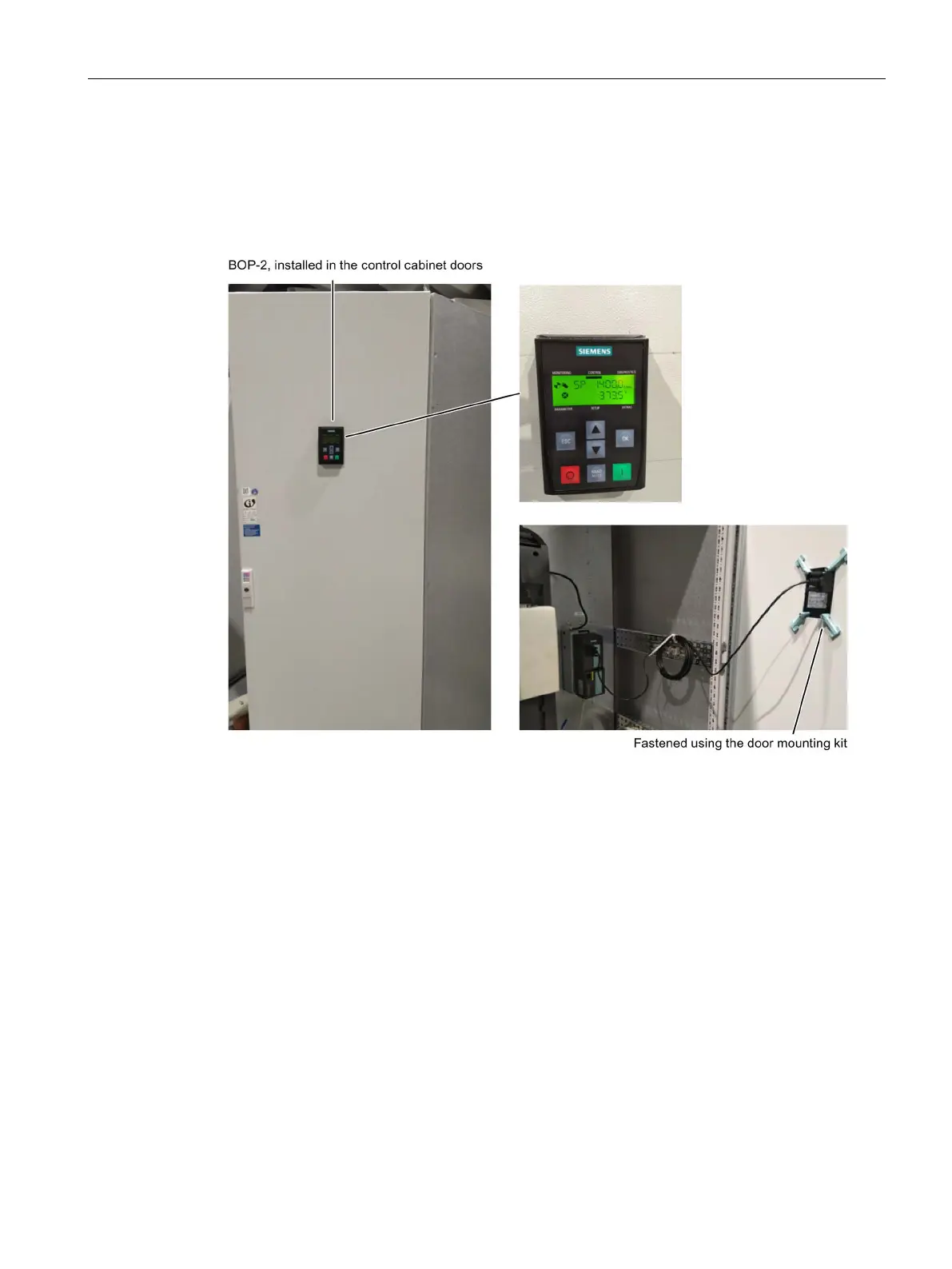

Figure 8-4 Control cabinet with installed operator panel
