Using SINAMICS G120 / G120C / S120 Blocksize converters in marine applications
Application Manual, 11/2019, A5E48346362A
21
System configuration for marine applications

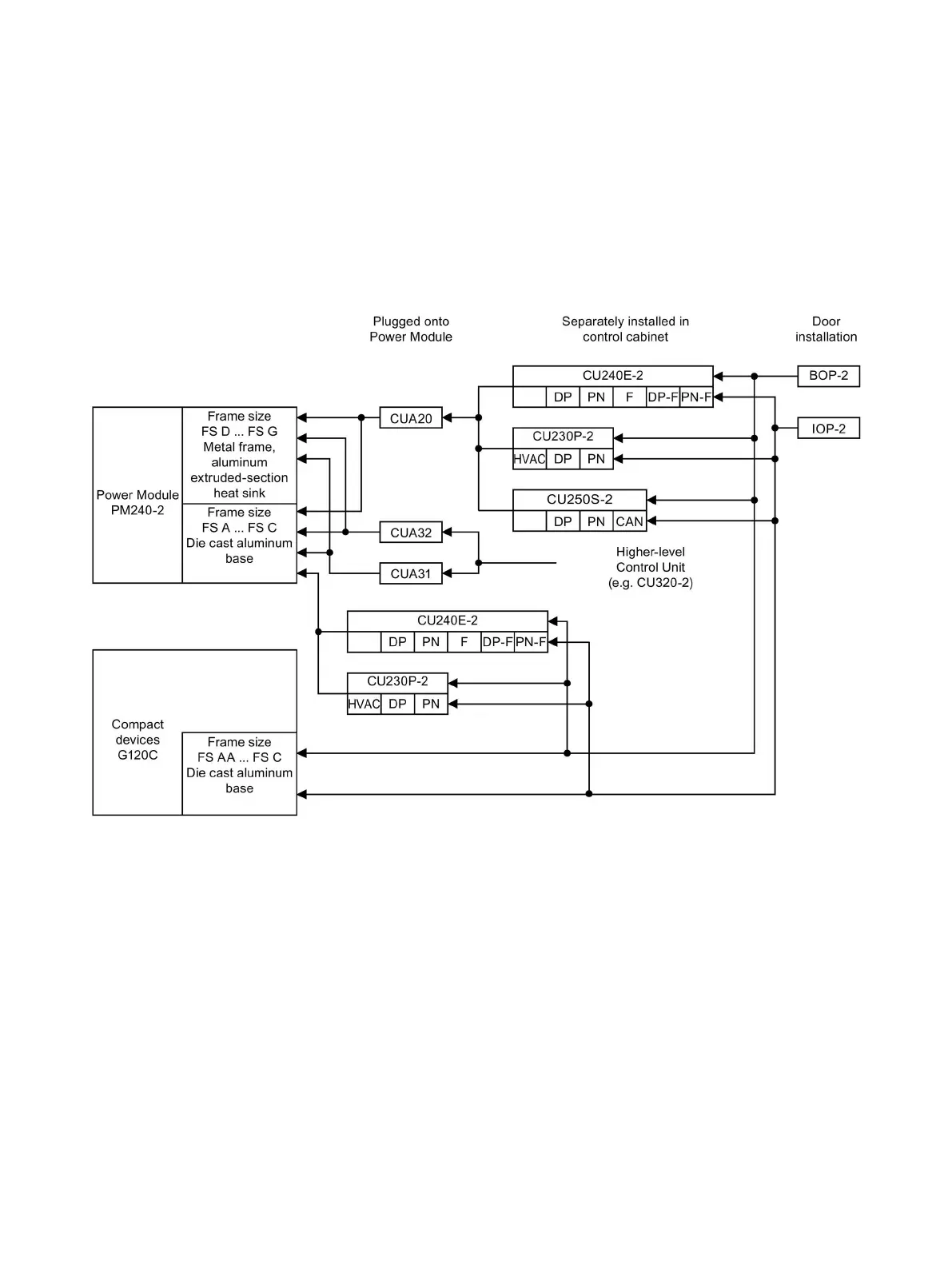

The system configuration specifically for marine applications is shown in the following
sketch. The components must be installed in a control cabinet or in the control cabinet door.
Figure 6-1 System configuration for marine applications
